349,99 EUR
In stock online

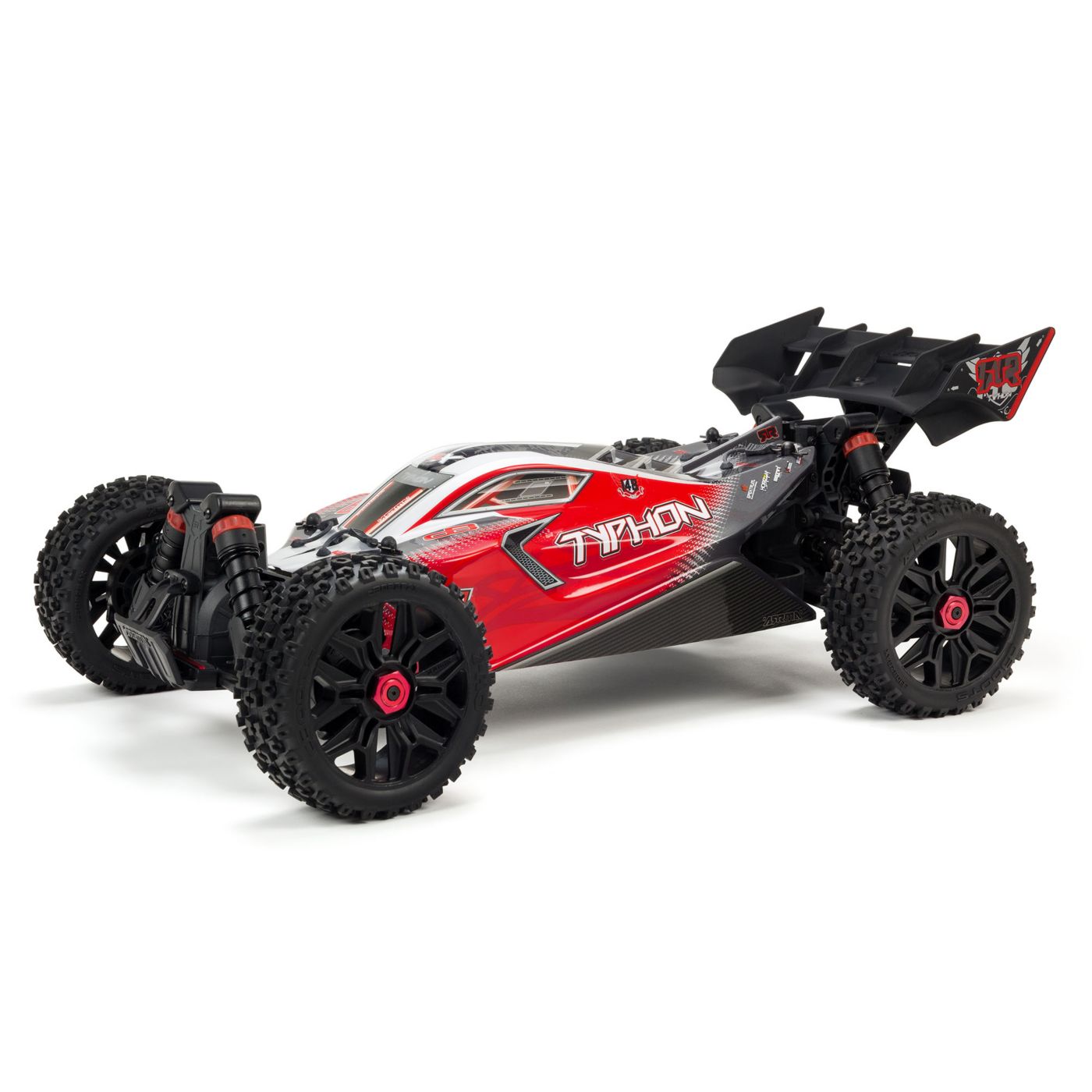

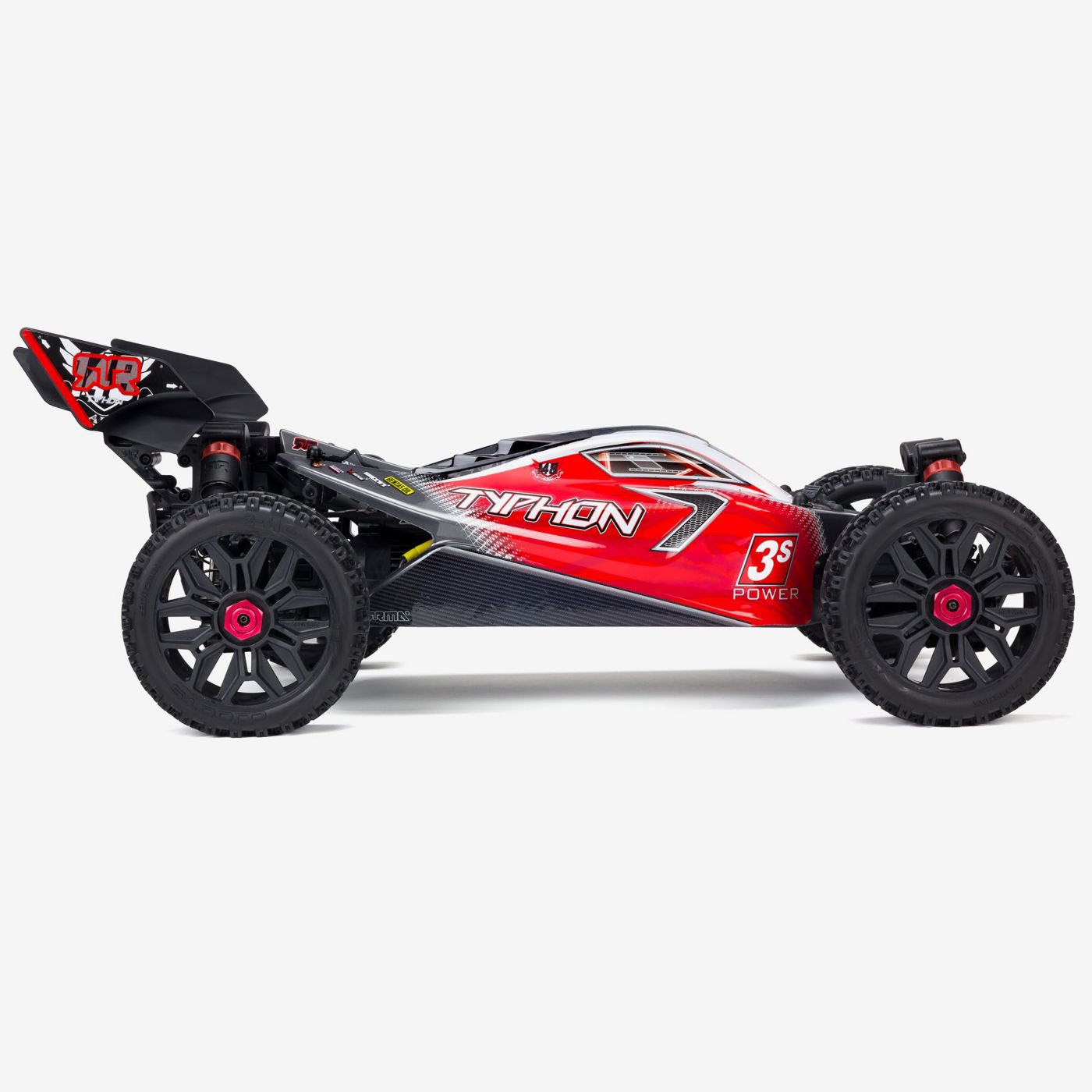

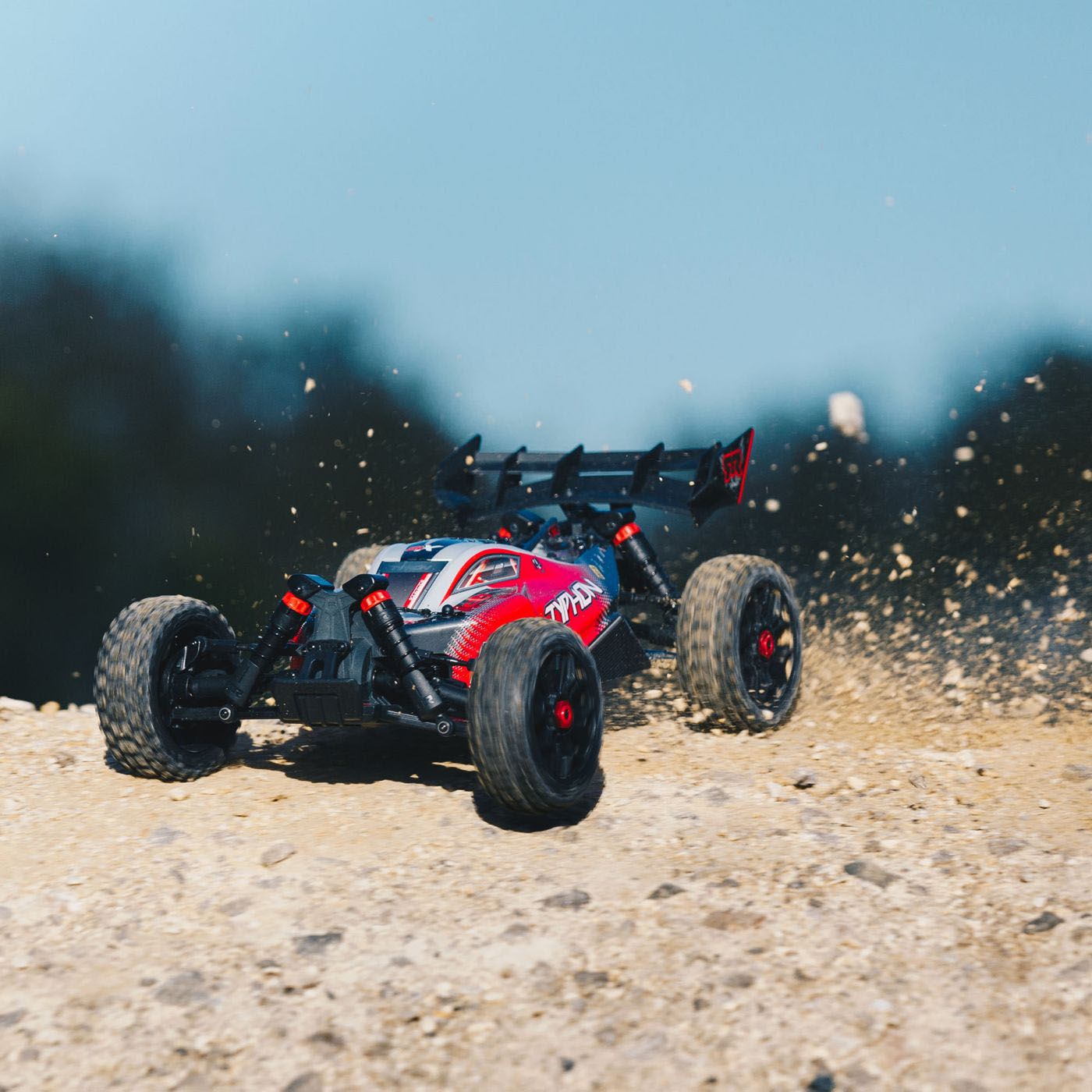

The original, 3S-capable TYPHON 4X4 BLX RTR Speed Buggy delivered power, strength, style, and the ability to reach extreme 50+ mph speeds. Now equipped with the high-quality Spektrum STX2 radio, it's an even smarter move into 1/8 scale buggy bashing!
Categories
- Overview
- Specs
- Parts & Accessories
- Completion Guide
- Manuals & Support
Introduction

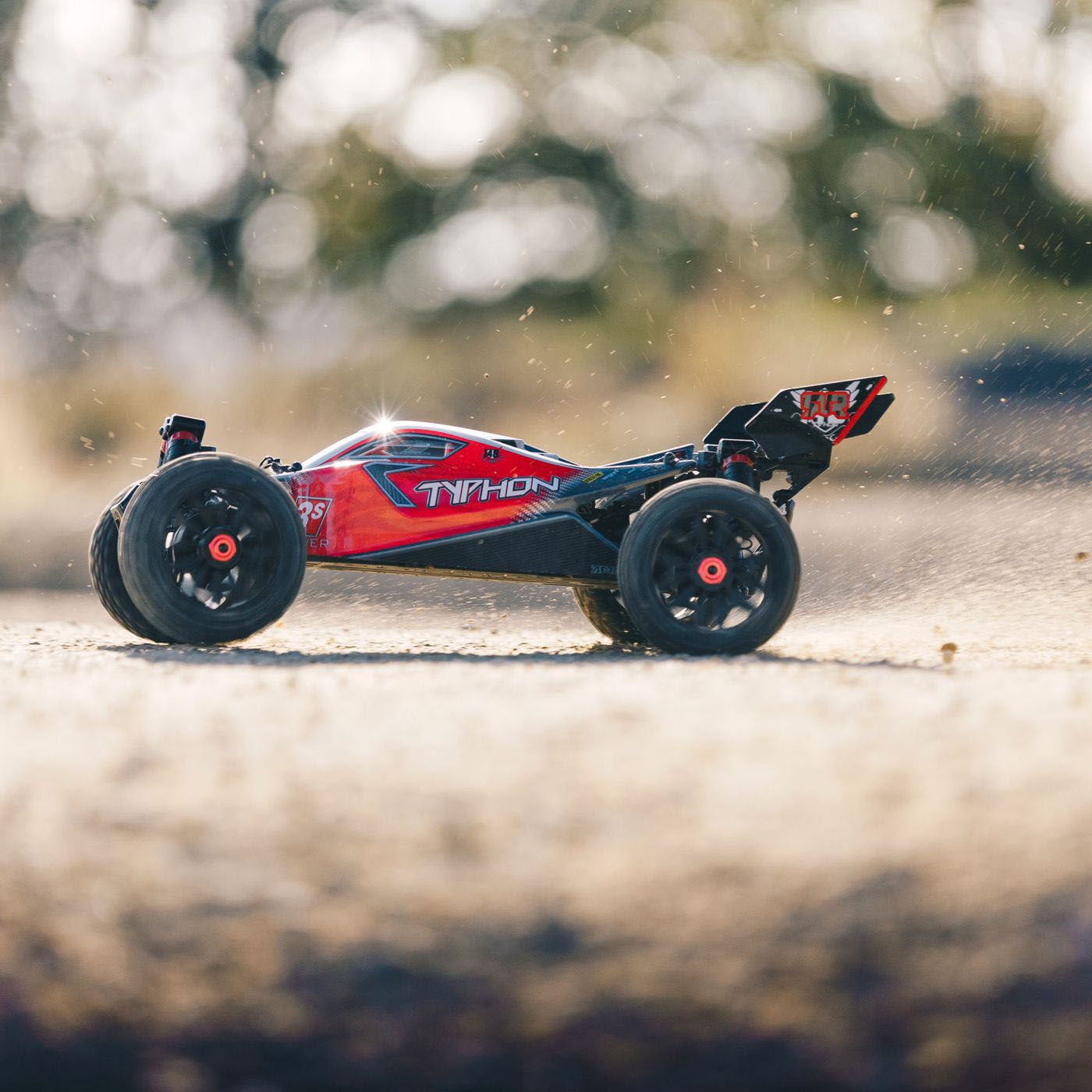

The original, 3S-capable TYPHON™ 4X4 BLX RTR Speed Buggy delivered power, strength, style — and the ability to reach extreme 50+ mph speeds. Now equipped with the high-quality Spektrum™ STX2 radio, it's an even smarter move into 1/8 scale buggy bashing!
Features
- Extremely durable — DESIGNED FAST, DESIGNED TOUGH!
- Fast, 50+ mph speeds
- Ideal entry into brushless buggy bashing
- Spektrum™ STX2® 2.4GHz Radio System:
- BLX100 Brushless System
- Easy-access power module
- Easy-access electronics module
- Metal-geared differentials
- Double wishbone front and rear suspension
- Oil-filled shocks with adjustable links

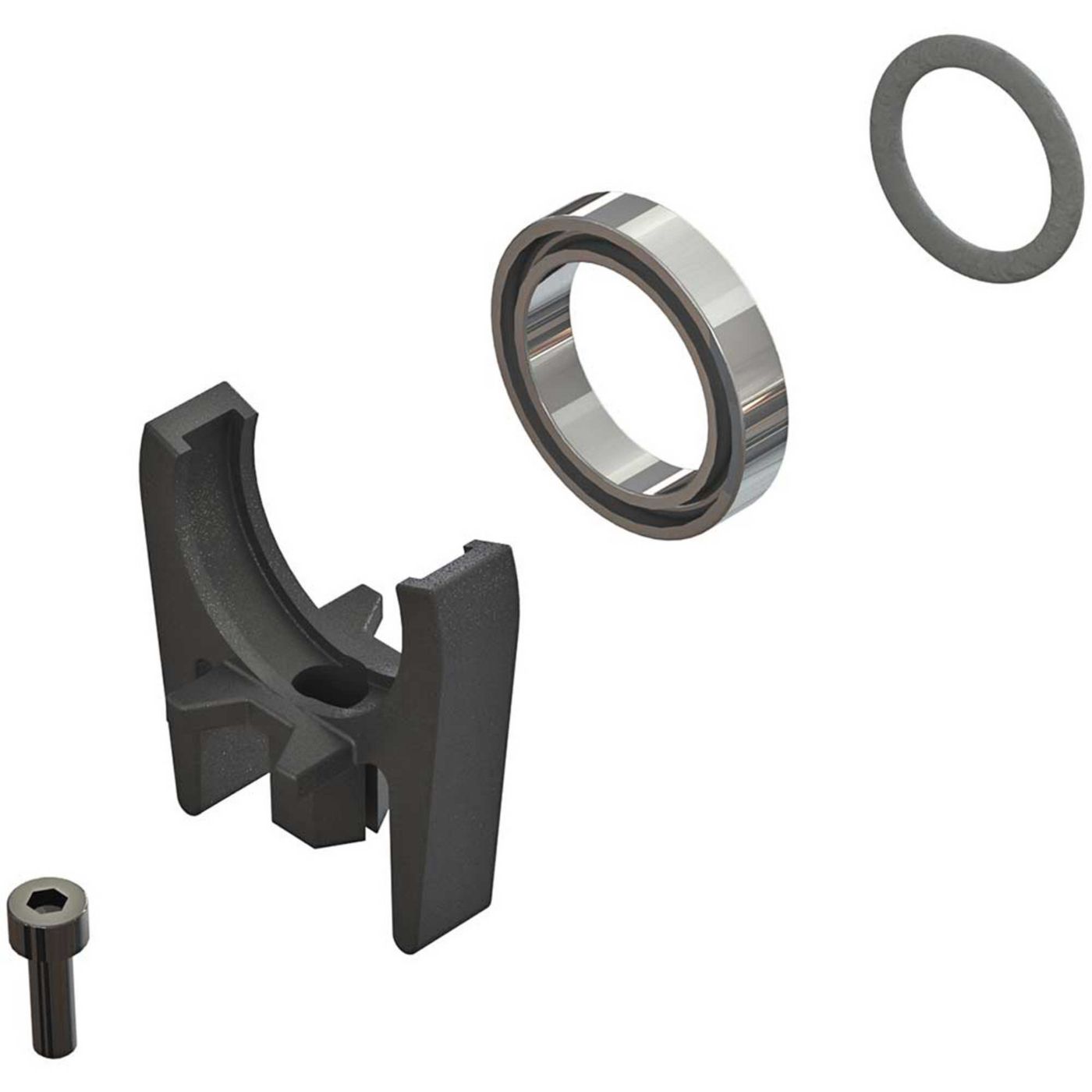

- High-speed center driveshaft support

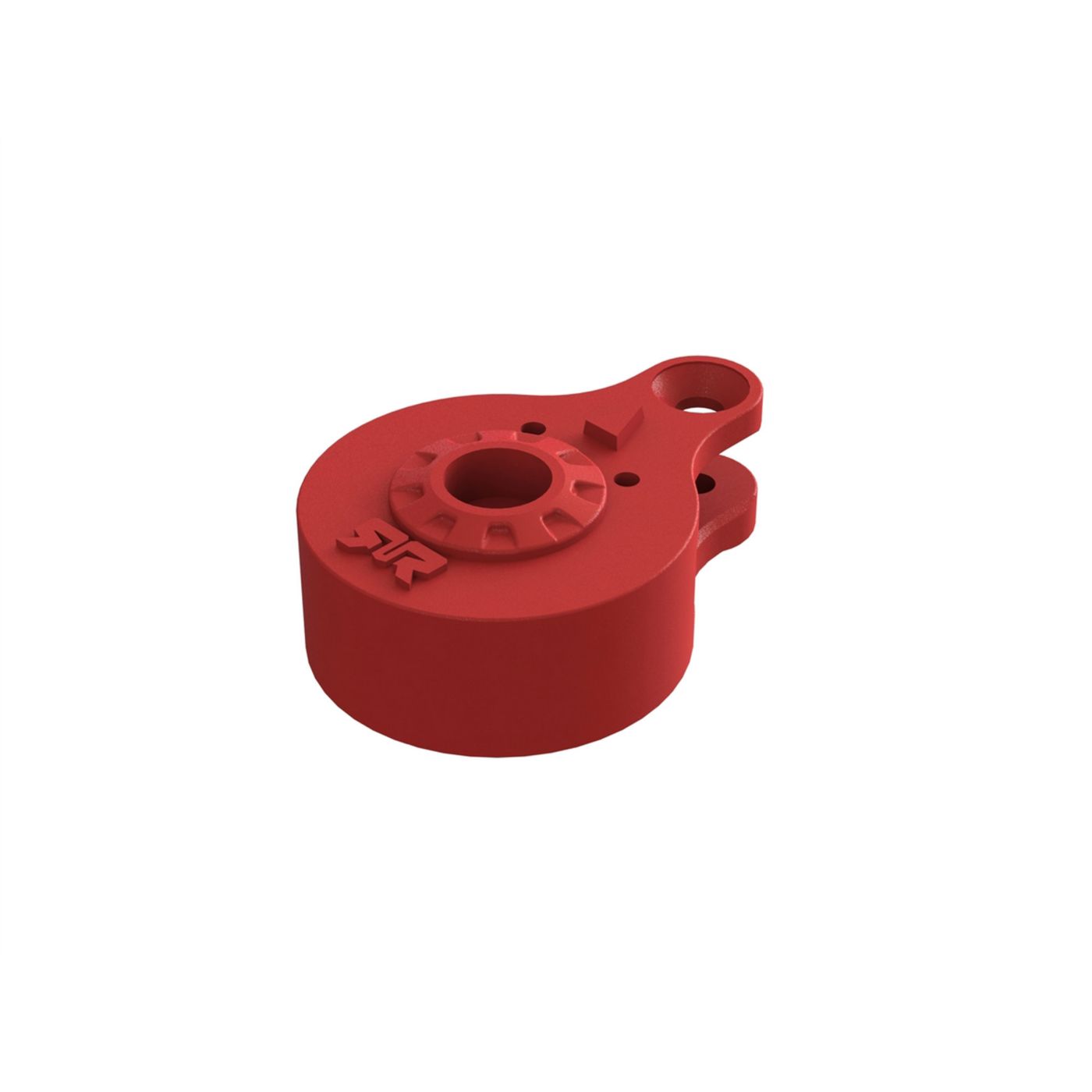

- Built-in servo saver for robust, responsive steering

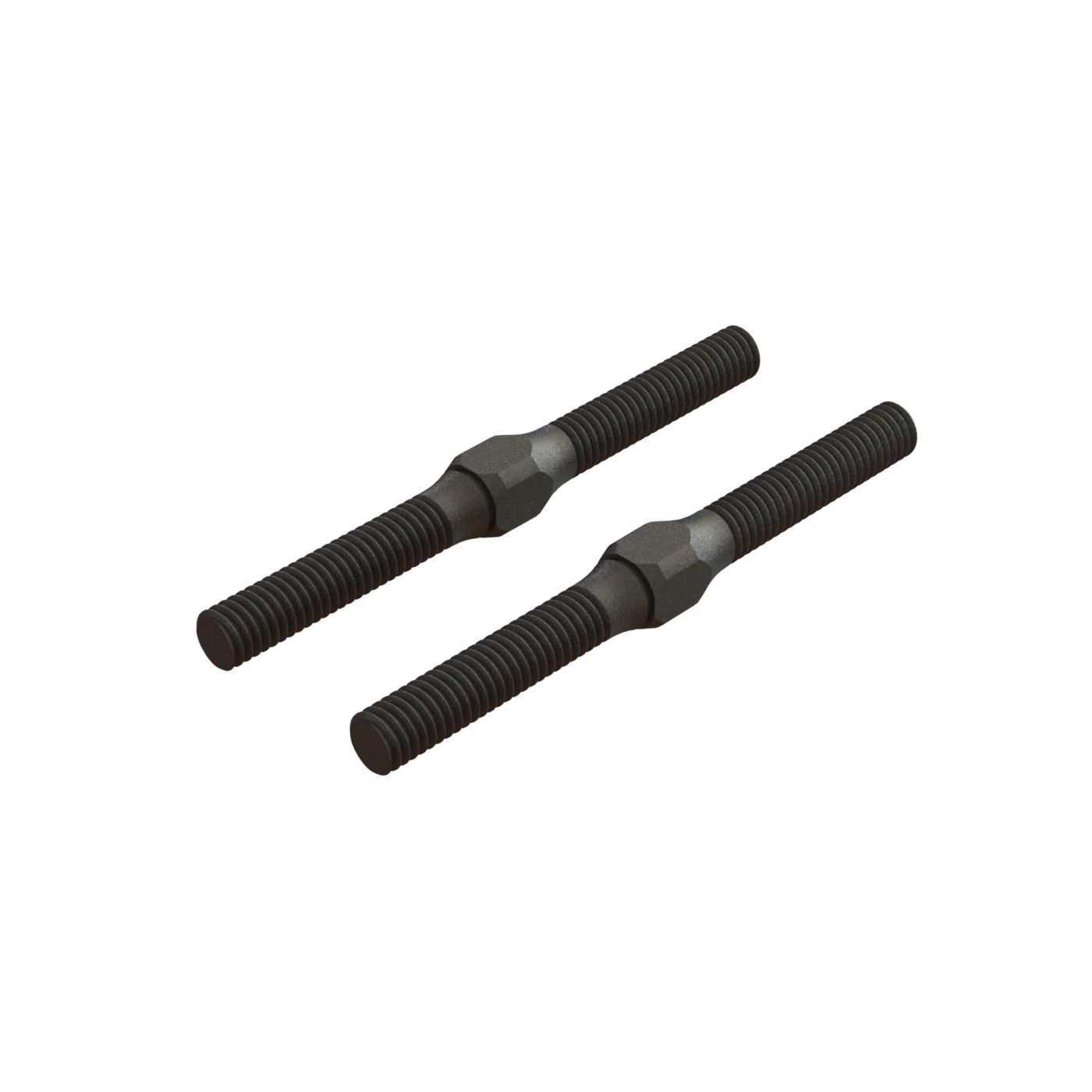

- Adjustable turnbuckles
- Adjustable ride height

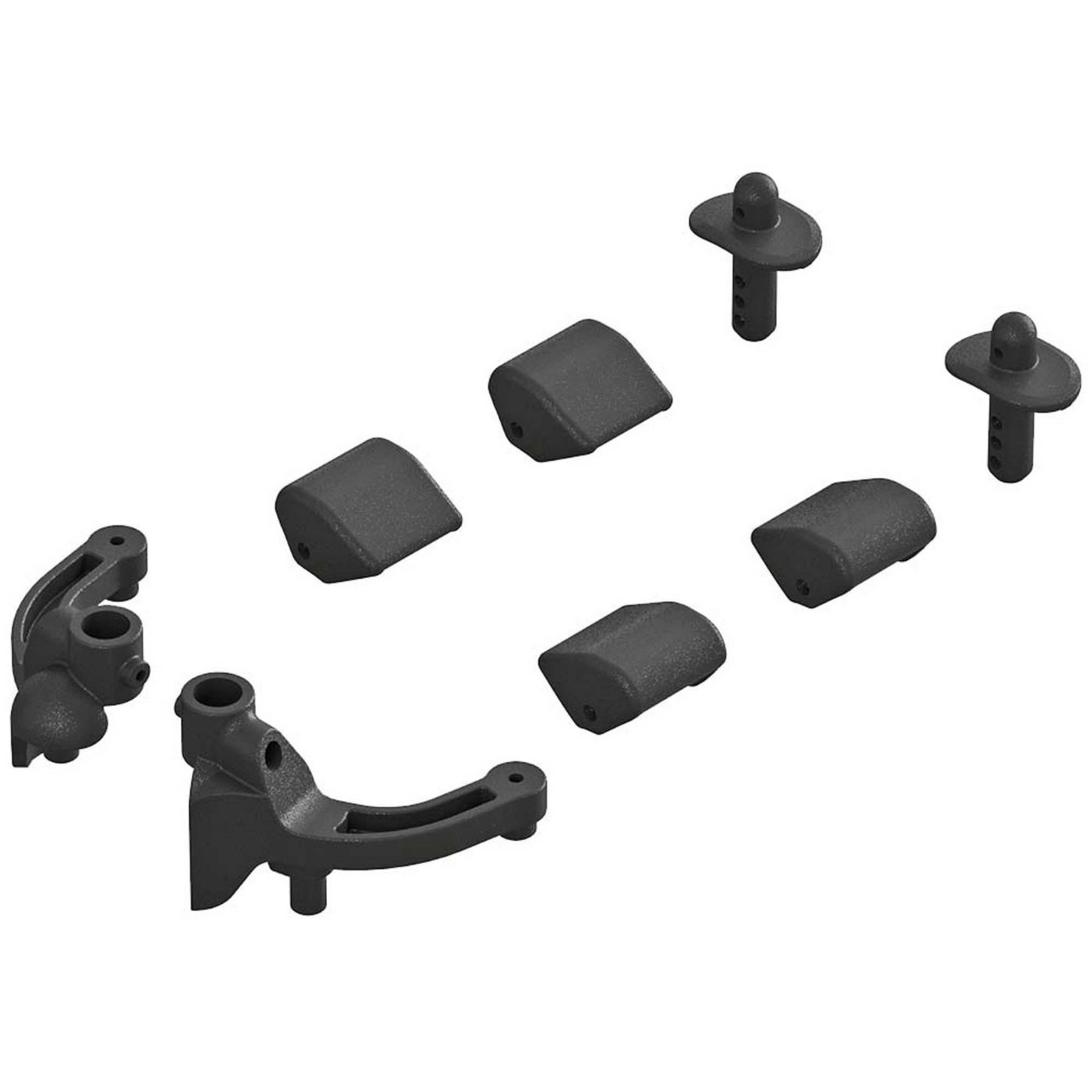

- Adjustable body mounts

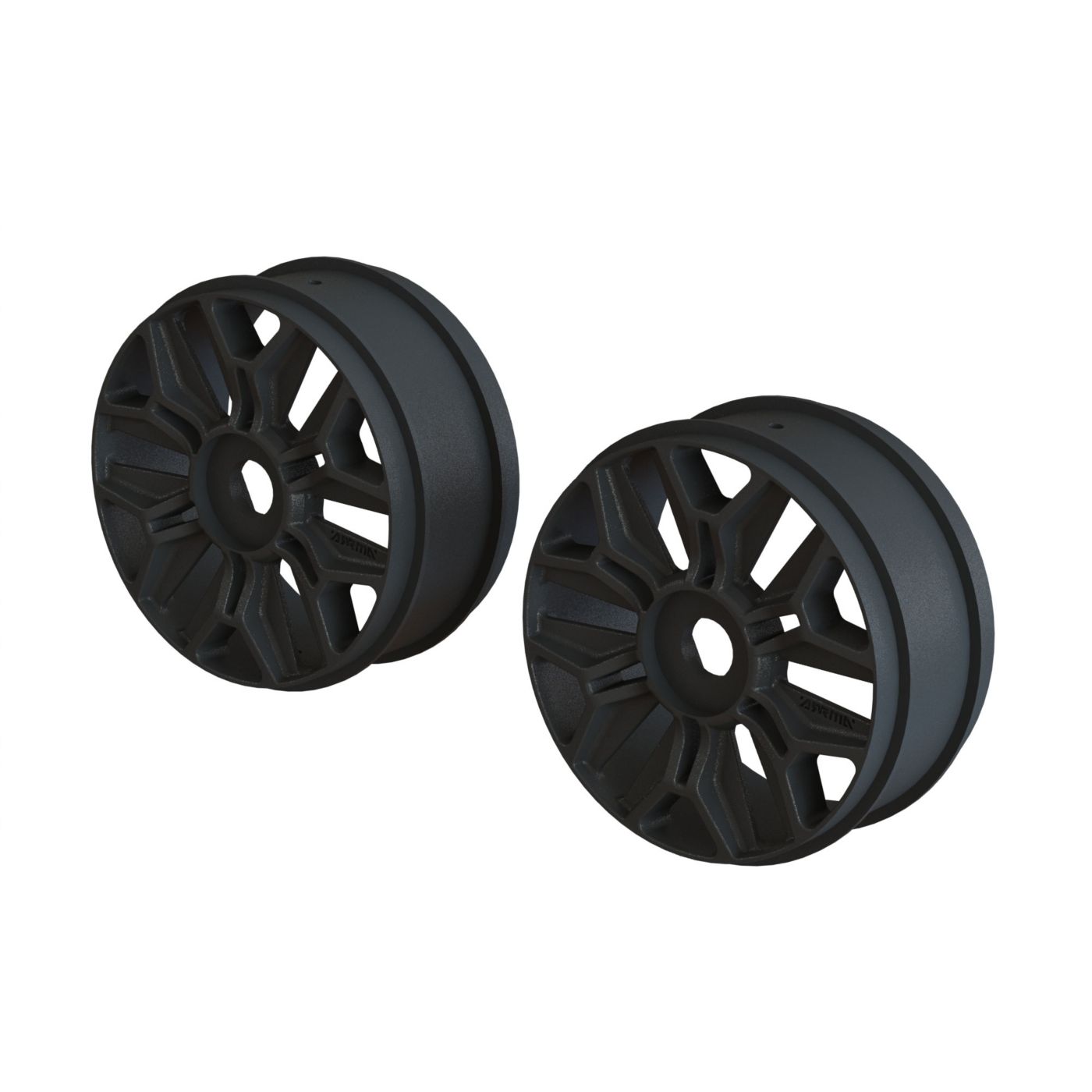

- Tough multi-spoke matte black wheels
- Multi-terrain dBoots® 2-HQ tires

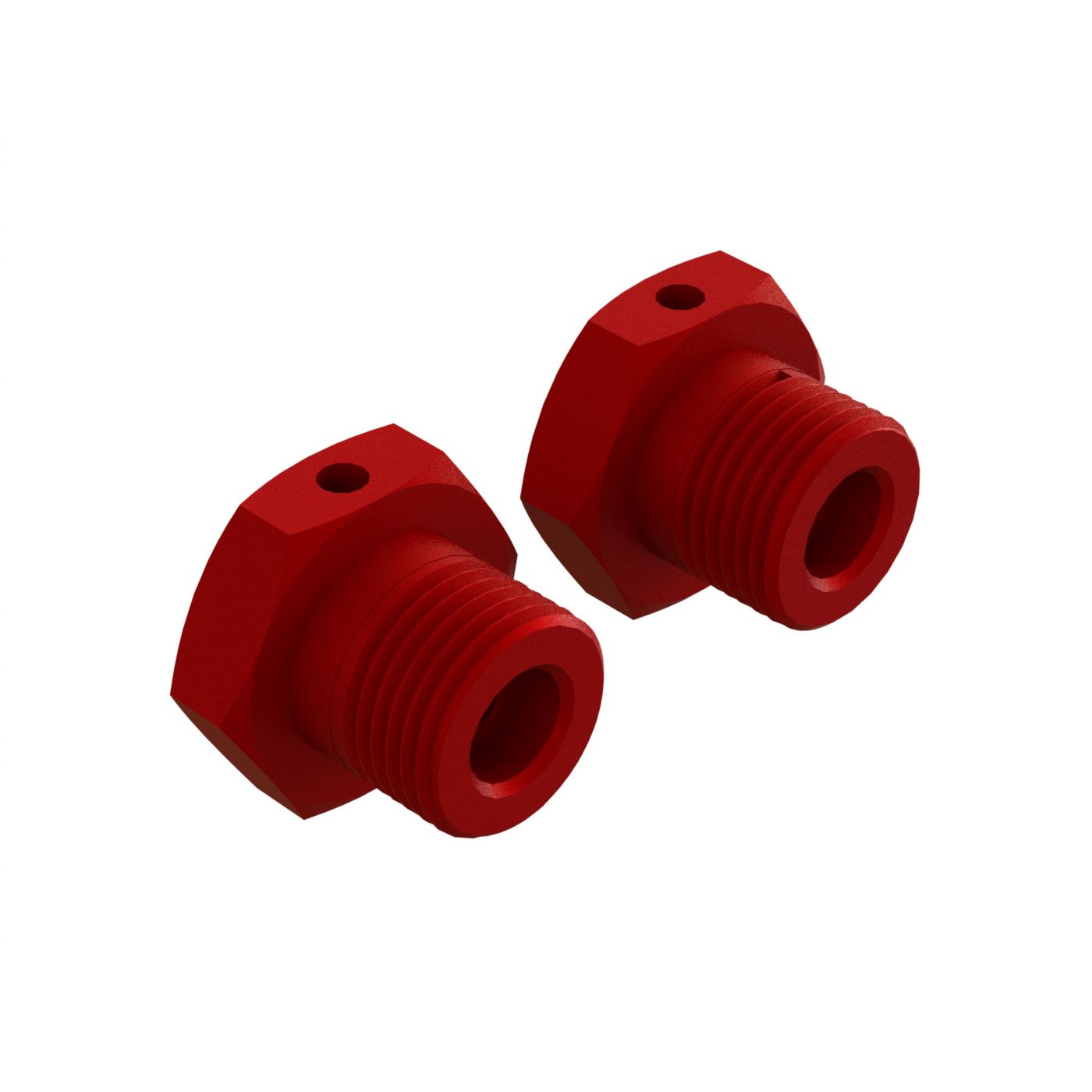

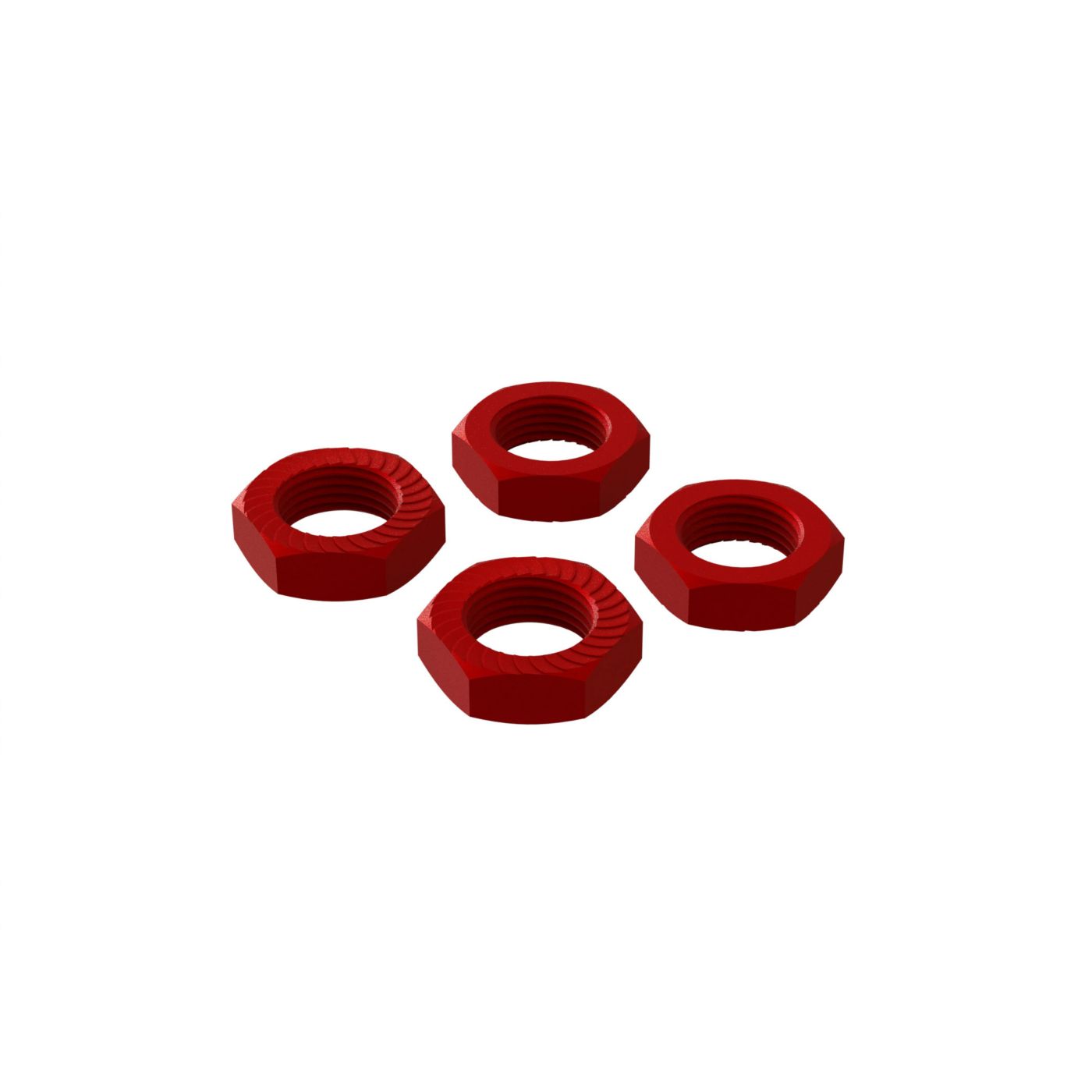

- 17mm red-anodized aluminum hexes

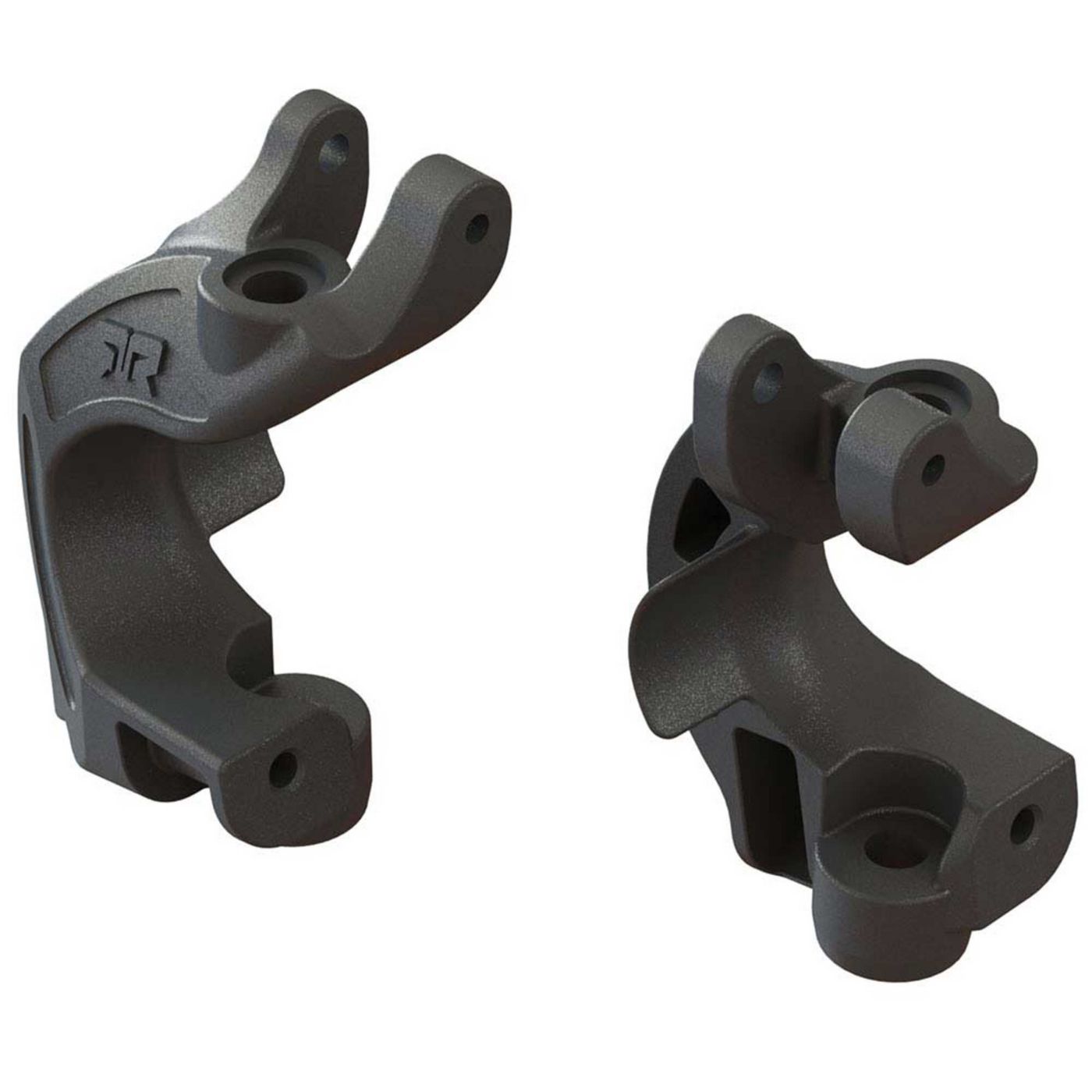

- Durable composite C-hubs
- Accepts standard 1/8 scale buggy wheels and tires
- Metallic-look body with forged composite detail

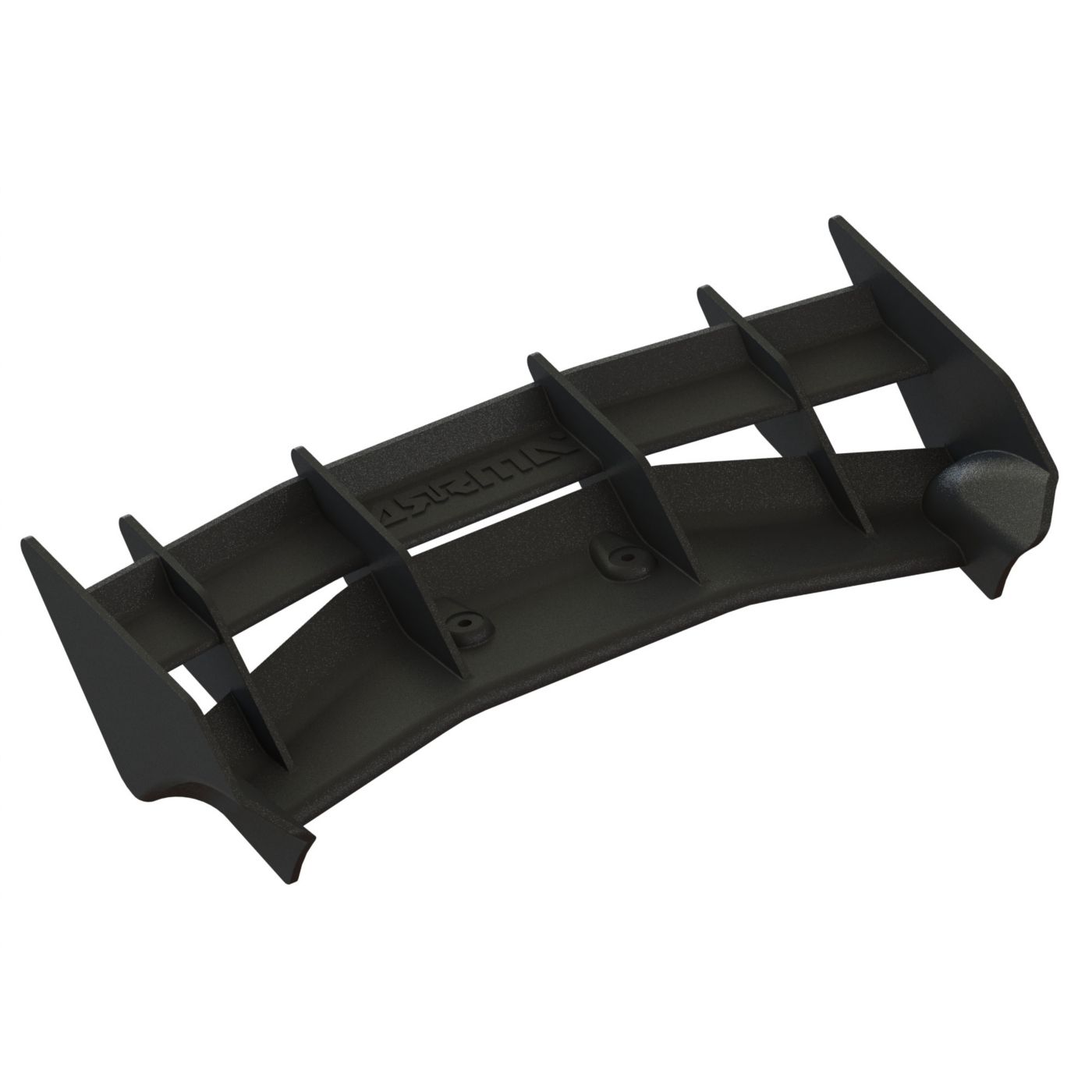

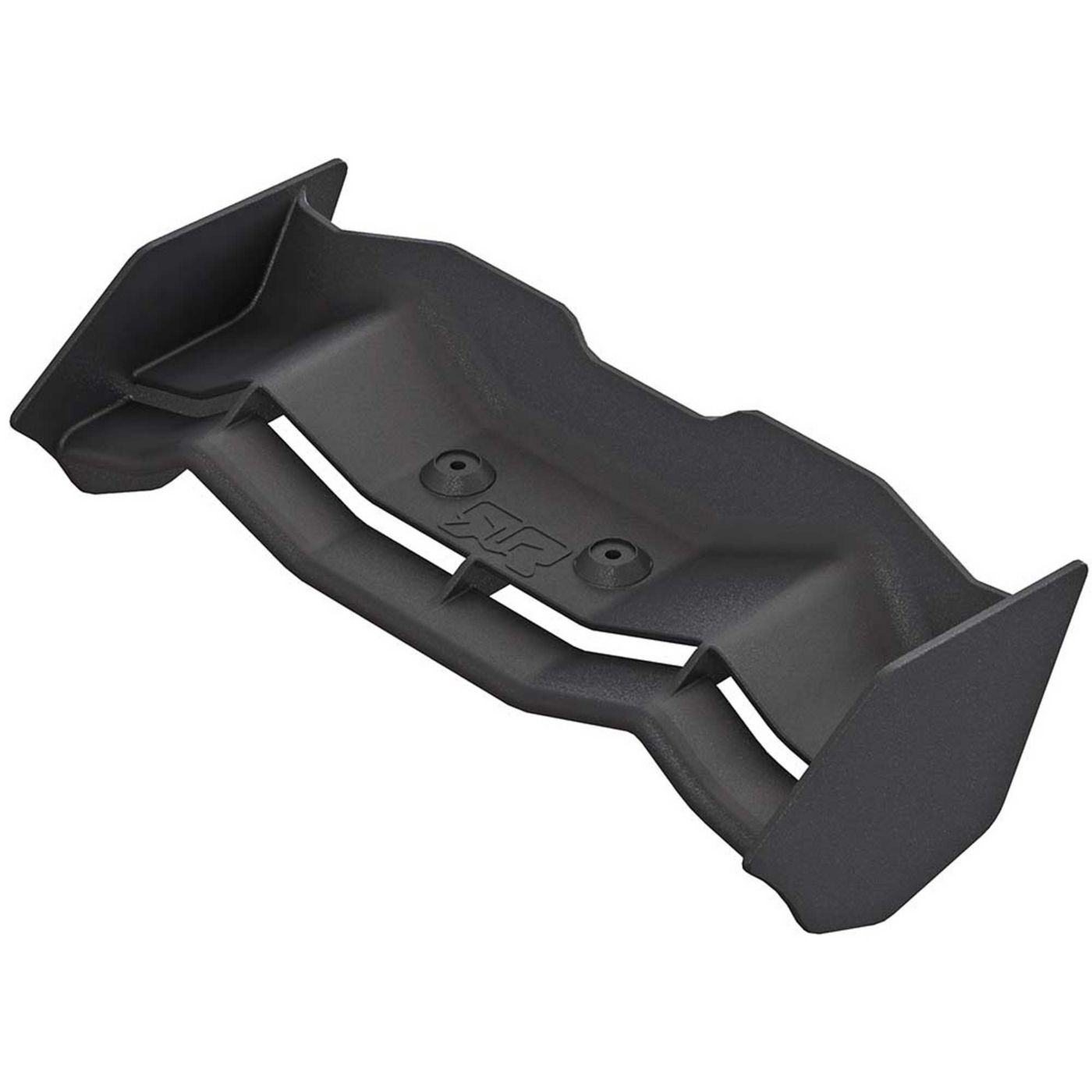

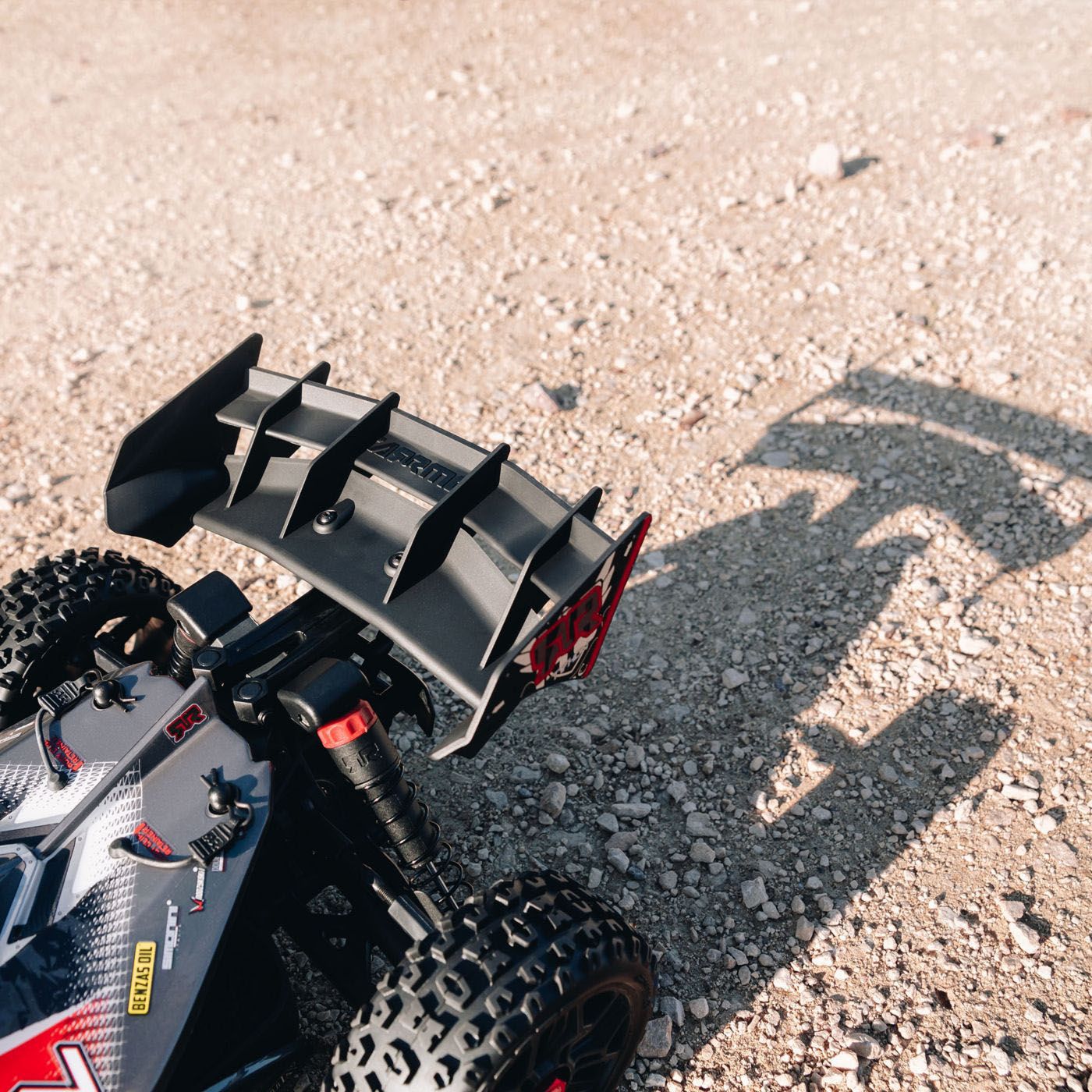

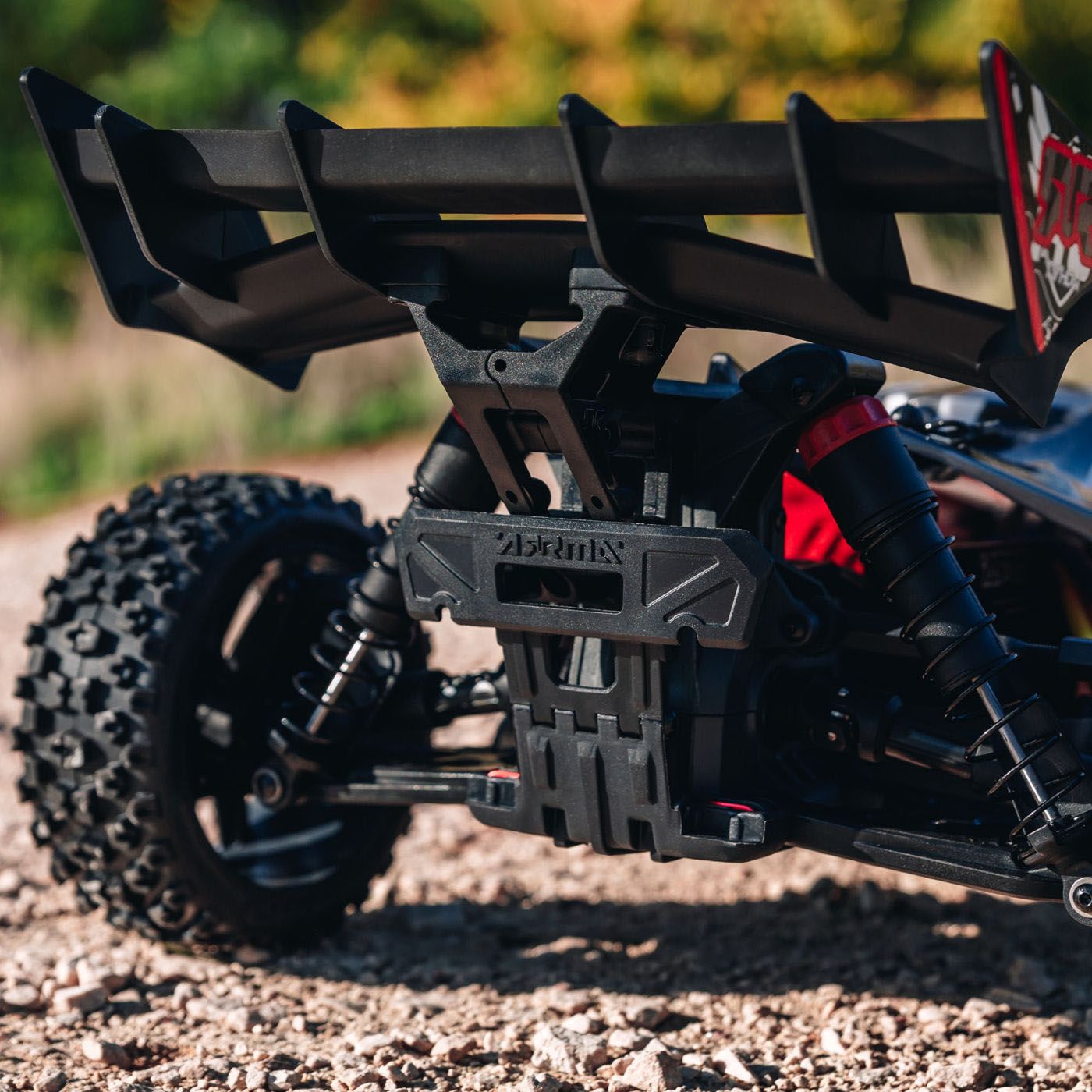

- High-downforce wing
- Realistic decals
- Waterproof electronics *
- 2-year limited warranty **
- * For details on waterproof standards, please refer to the product instruction manuals
** Please see the product manual for warranty details
Needed to Complete

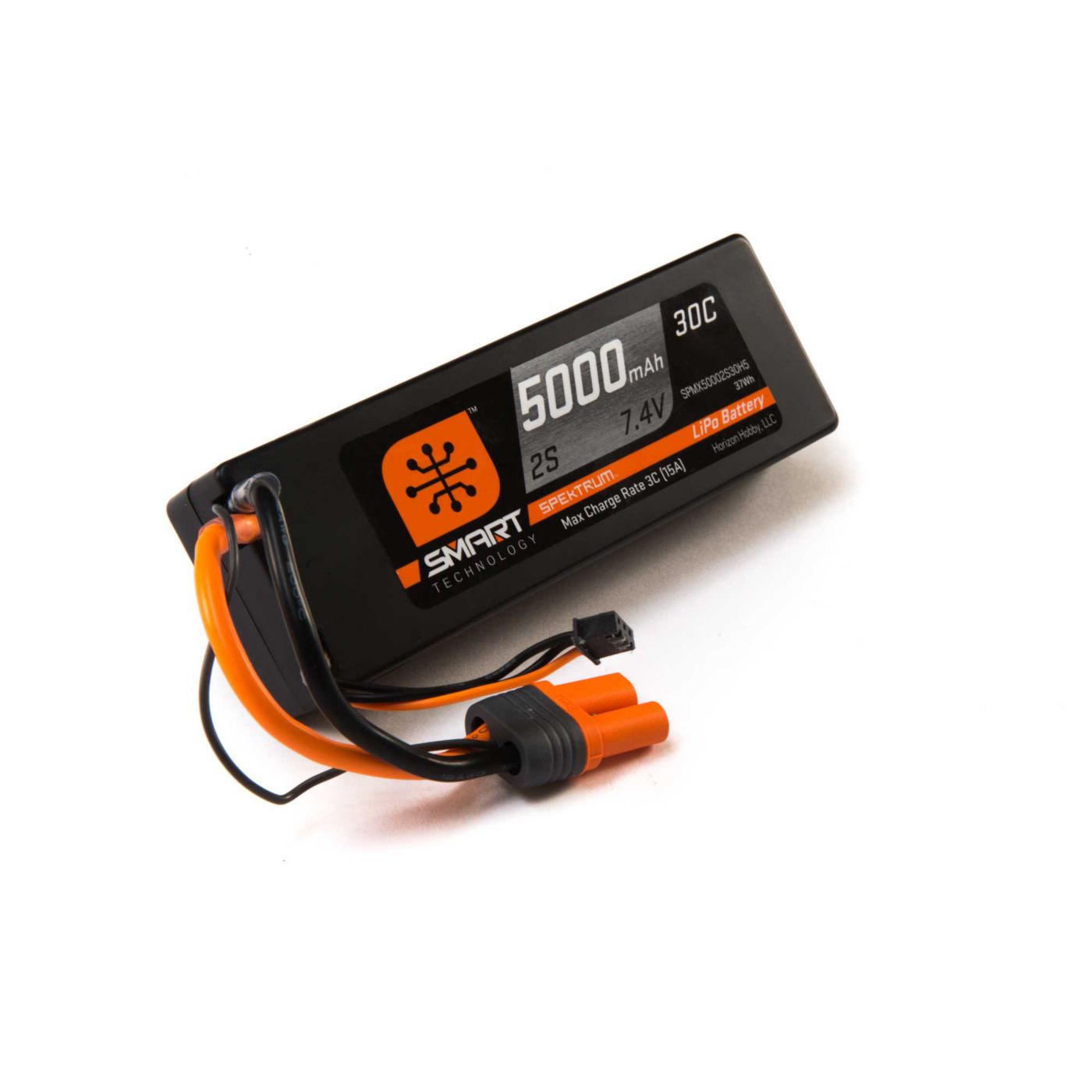

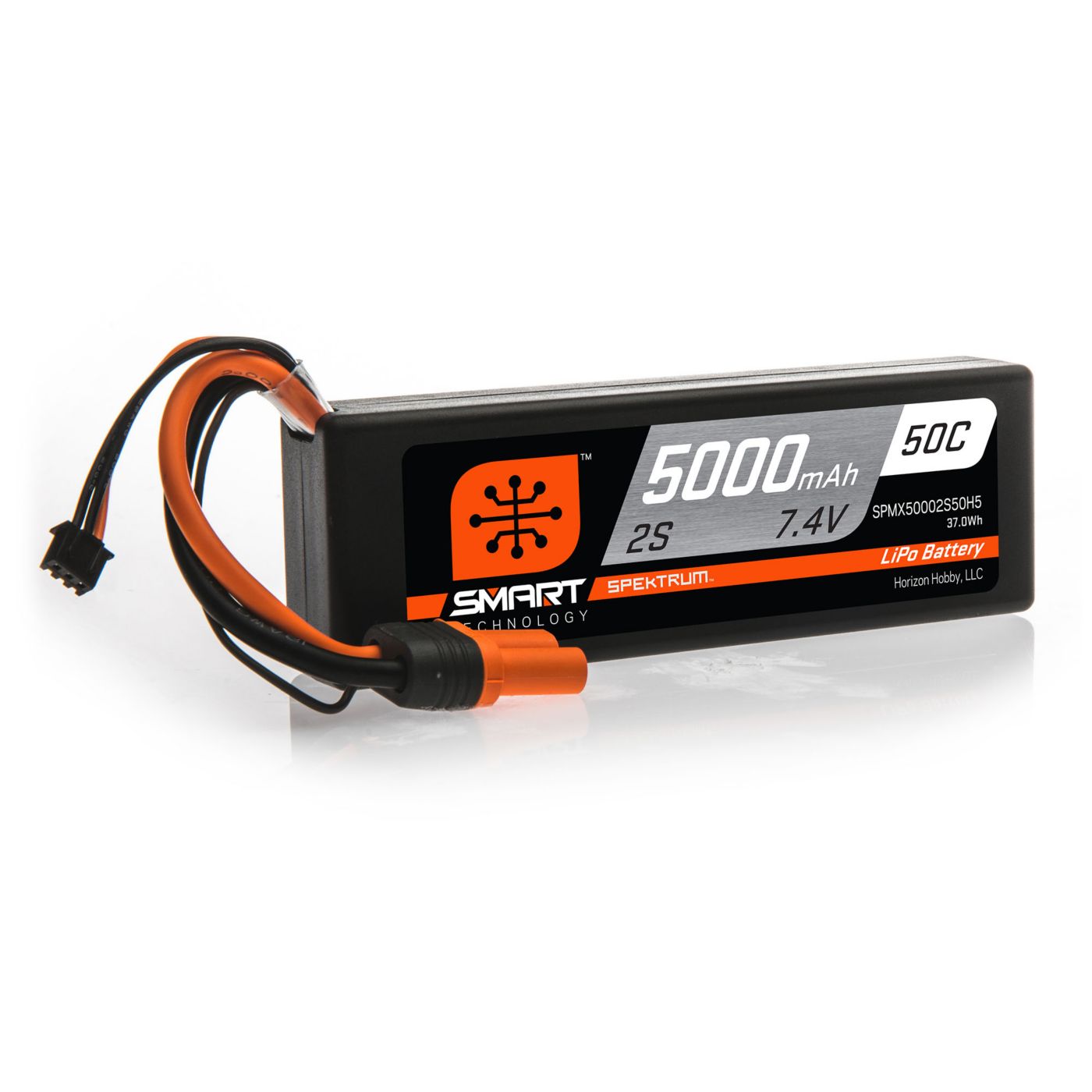

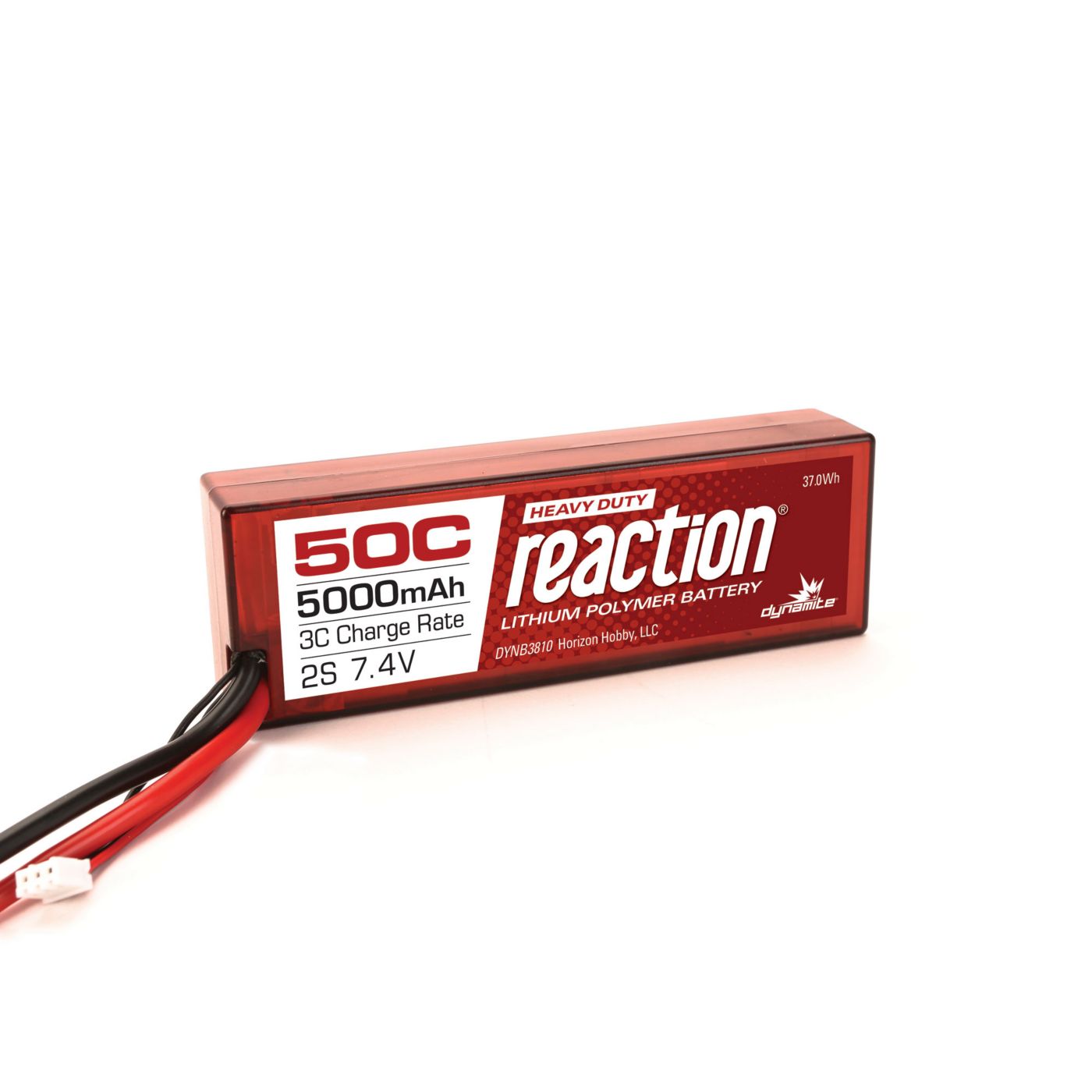

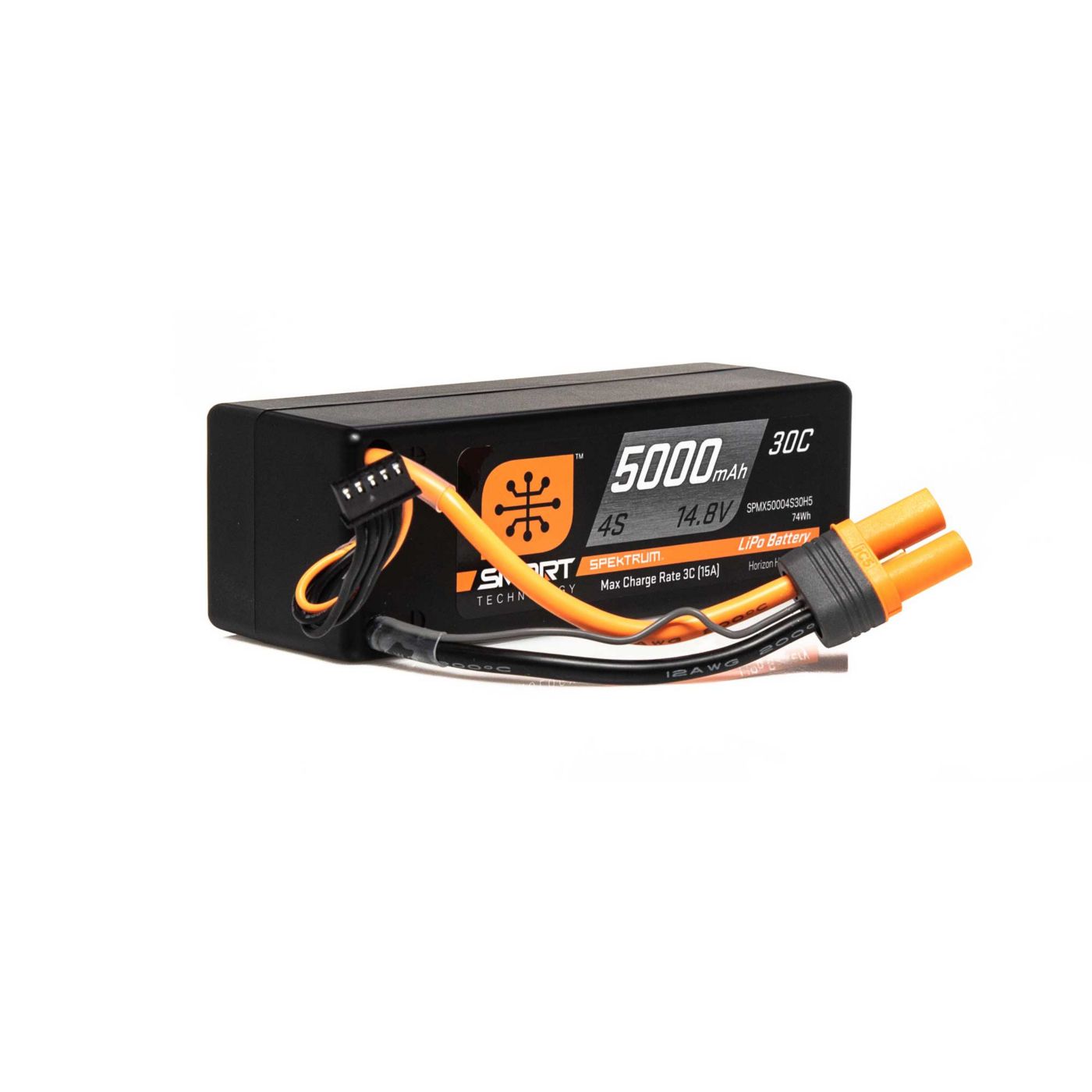

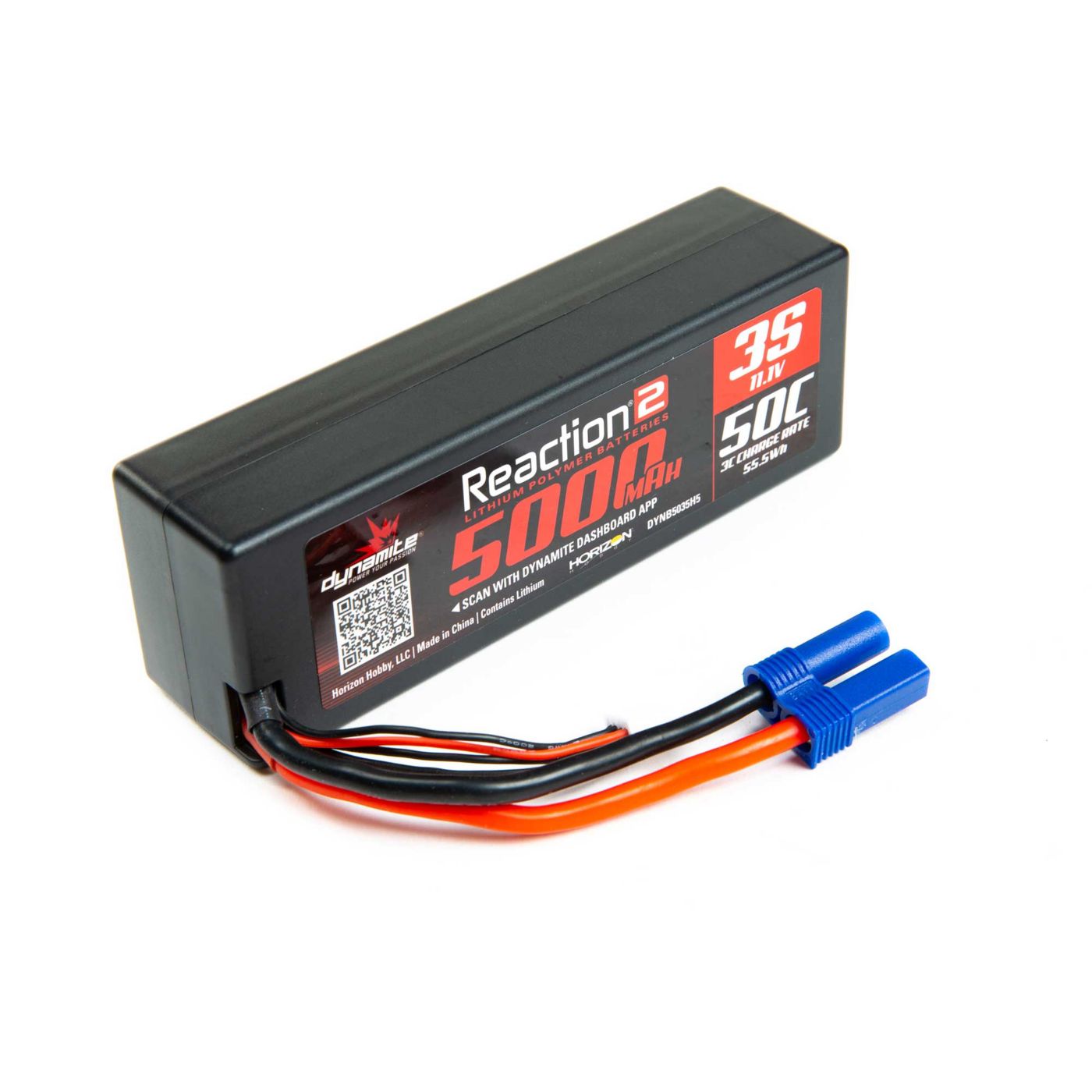

- 35C 2S or 3S 35C+ LiPo or 6 to 8 Cell NiMH Hardcase Battery with IC5™/EC5™ Connector
- Suitable LiPo or NiMH Balancing Charger
- (4) AA Batteries

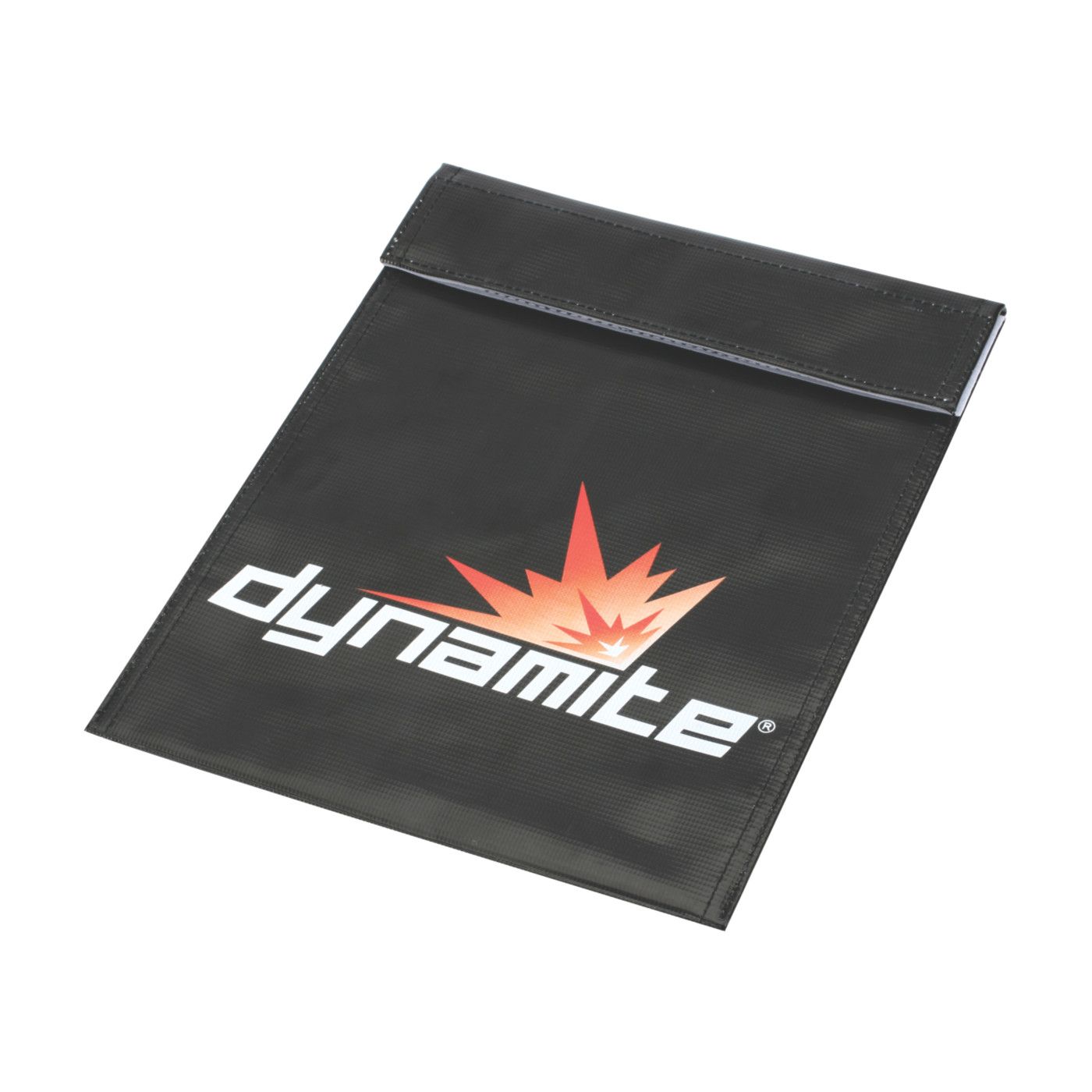

- LiPo Charging Bag (recommended)
What's in the Box?
- (1) ARRMA 1/8 TYPHON™ 4X4 BLX RTR Speed Buggy with:
- (1) Spektrum™ SRX200 2-Channel Waterproof Receiver (installed)
- (1) ADS-7M Waterproof, Metal Gear Servo (installed)
- (1) ARRMA BLX3660 3200Kv Brushless Motor (installed)
- (1) BLX100 ESC 2S/3S with IC5™ connector (installed)

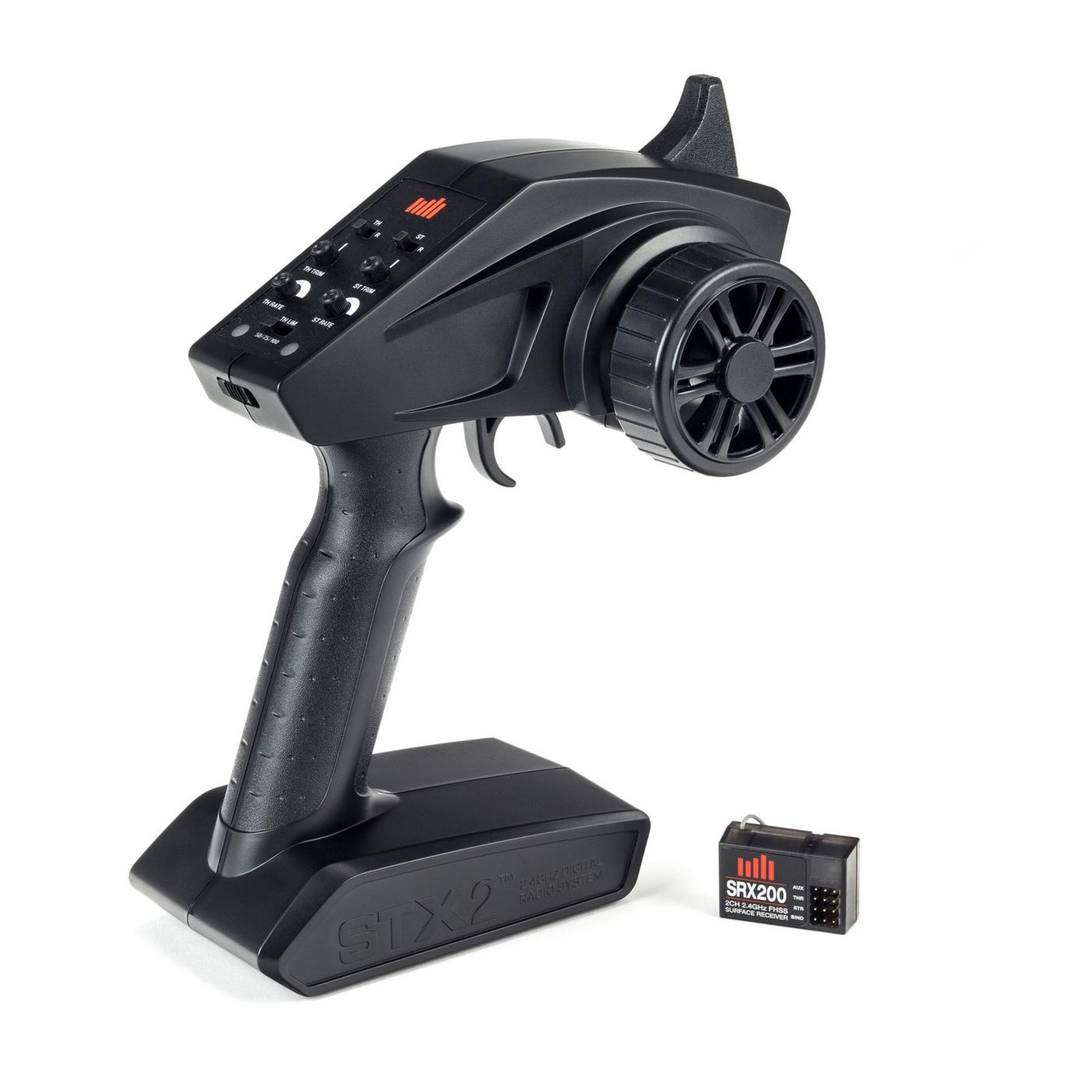

- (1) Spektrum™ STX2 2.4GHz 2-Channel Transmitter
- (1) Product Manual
Overview
The new Spektrum STX2 2.4GHz 2-channel radio system provides many of the features found in high-end 2.4GHz radio systems, including throttle and steering reversing, throttle and steering travel adjust, and throttle limiting. The radio system also includes the Spektrum SRX200 2-channel waterproof receiver.
ARRMA® powers the 1/8 TYPHON 4X4 3S BLX with its BLX100 brushless system for incredible torque, acceleration, and speed. This 3S LiPo-capable setup has already proven the speed and toughness of its 3200Kv brushless motor and 100A ESC, now equipped with an IC5™ connector (EC5™ compatible). The transmission and chassis are ruggedly engineered to take full advantage of the electronics' power — in ARRMA tradition, DESIGNED FAST, DESIGNED TOUGH.
The low center of gravity, with wide arms and narrow buggy wheels and tires, improves handling over all of your favorite bashing terrain — race tracks, trails, muddy courses, skate parks, and more. With its metallic-finish body and forged composite detail, the TYPHON 4X4 3S BLX also looks as great as it performs. A stylish, high-downforce wing keeps all four wheels planted as you explore the upper limits of its outrageous speed range!
Spektrum™ STX2® 2.4GHz Radio System
- 2-Channel SRX200 waterproof receiver
- Built-in 3-position throttle limiter
- Extended range and interference-free performance
- Throttle/steering reversing
- Throttle/steering travel adjust
- Throttle limiting

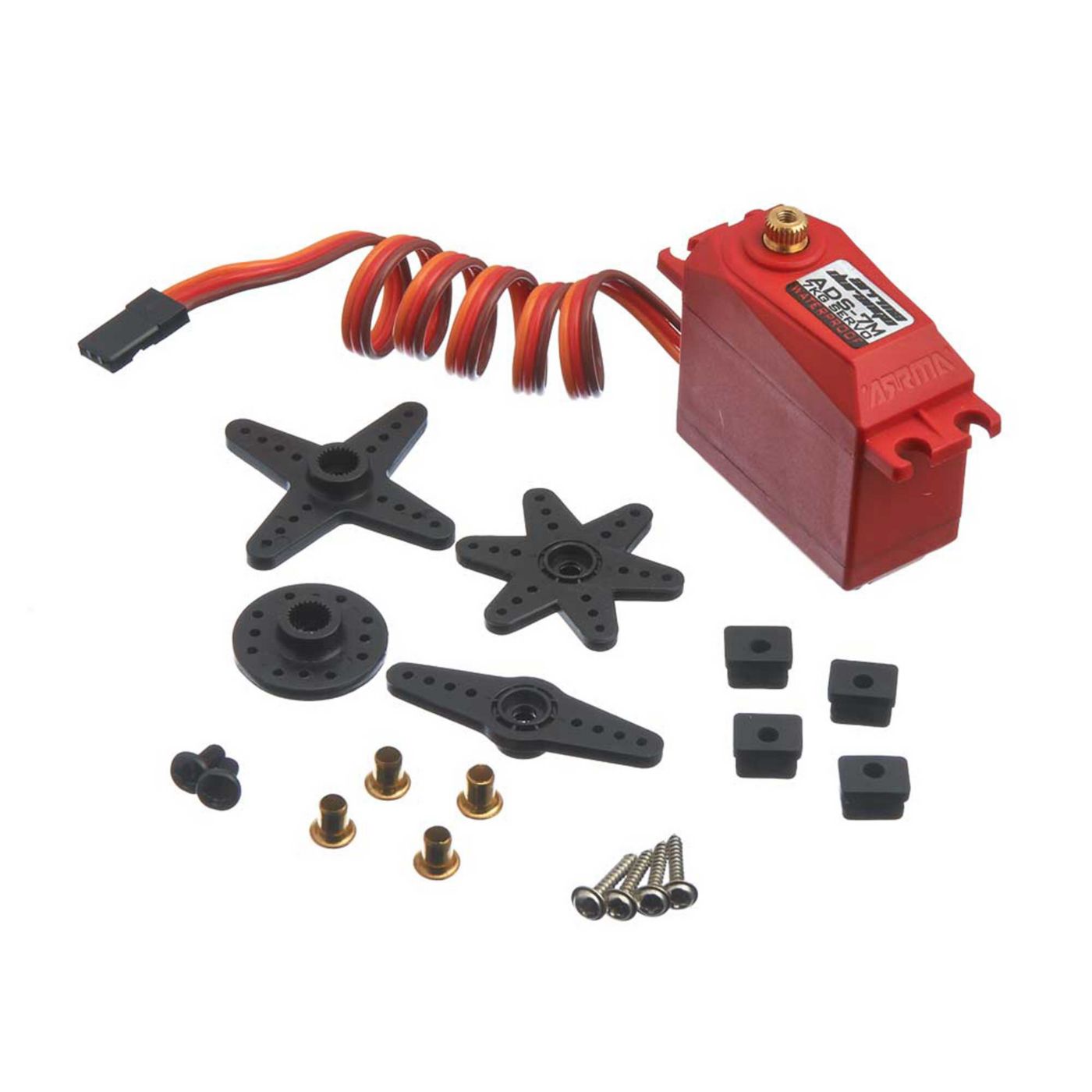

- ADS-7M waterproof, metal gear servo
- Max. Servo Torque @6V: 84 oz-in (6 kg-cm)
- Max. Servo Speed @6V: 0.14 s

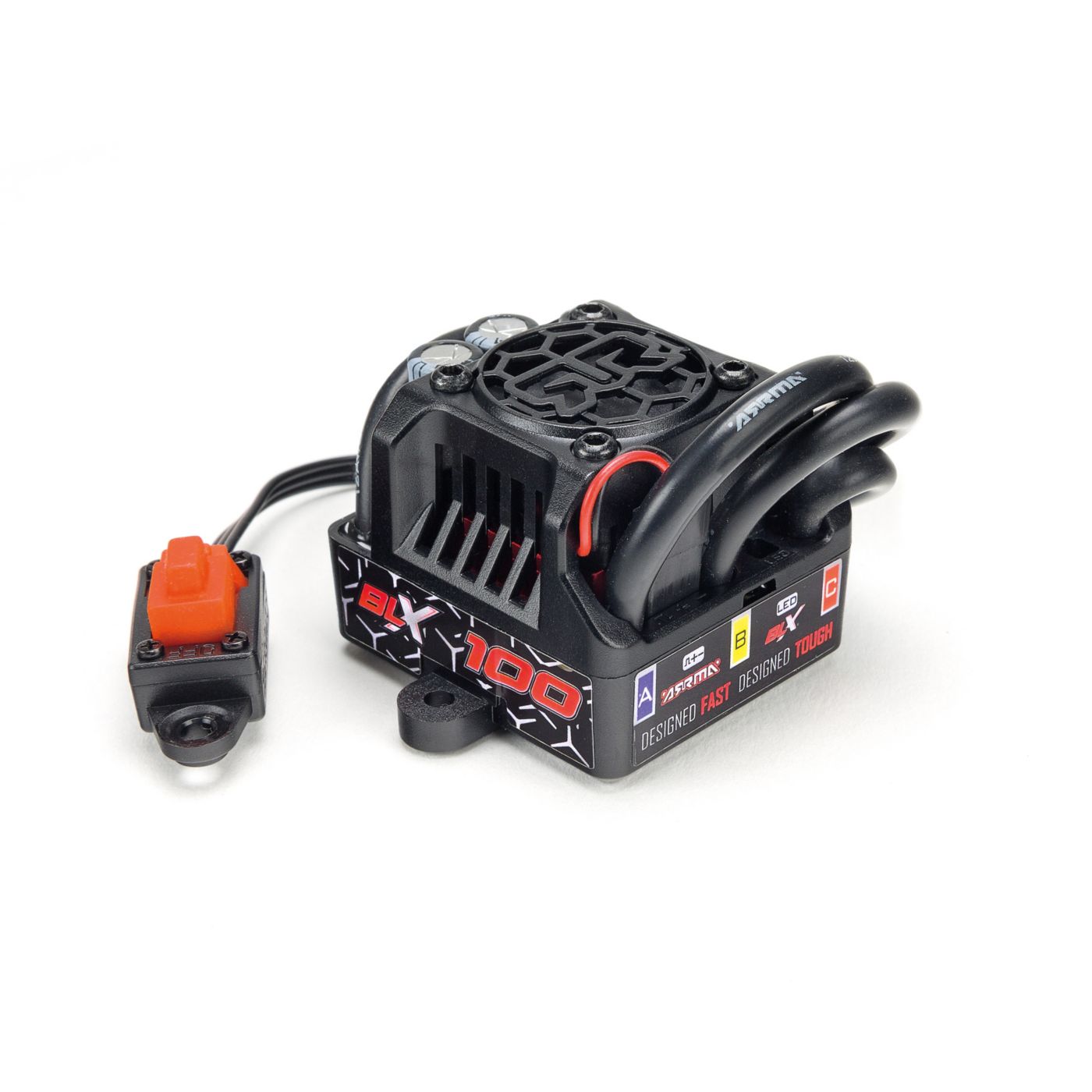

BLX100 Brushless System

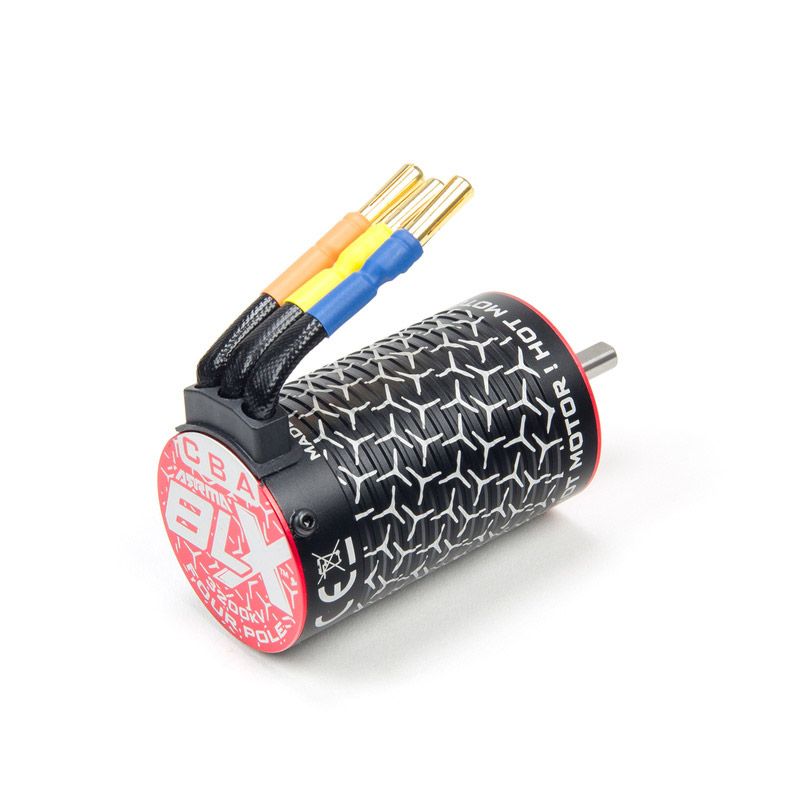

- BLX3660 3200Kv brushless motor
- BLX100 ESC 2S/3S with IC5™ connector (EC5™ compatible)

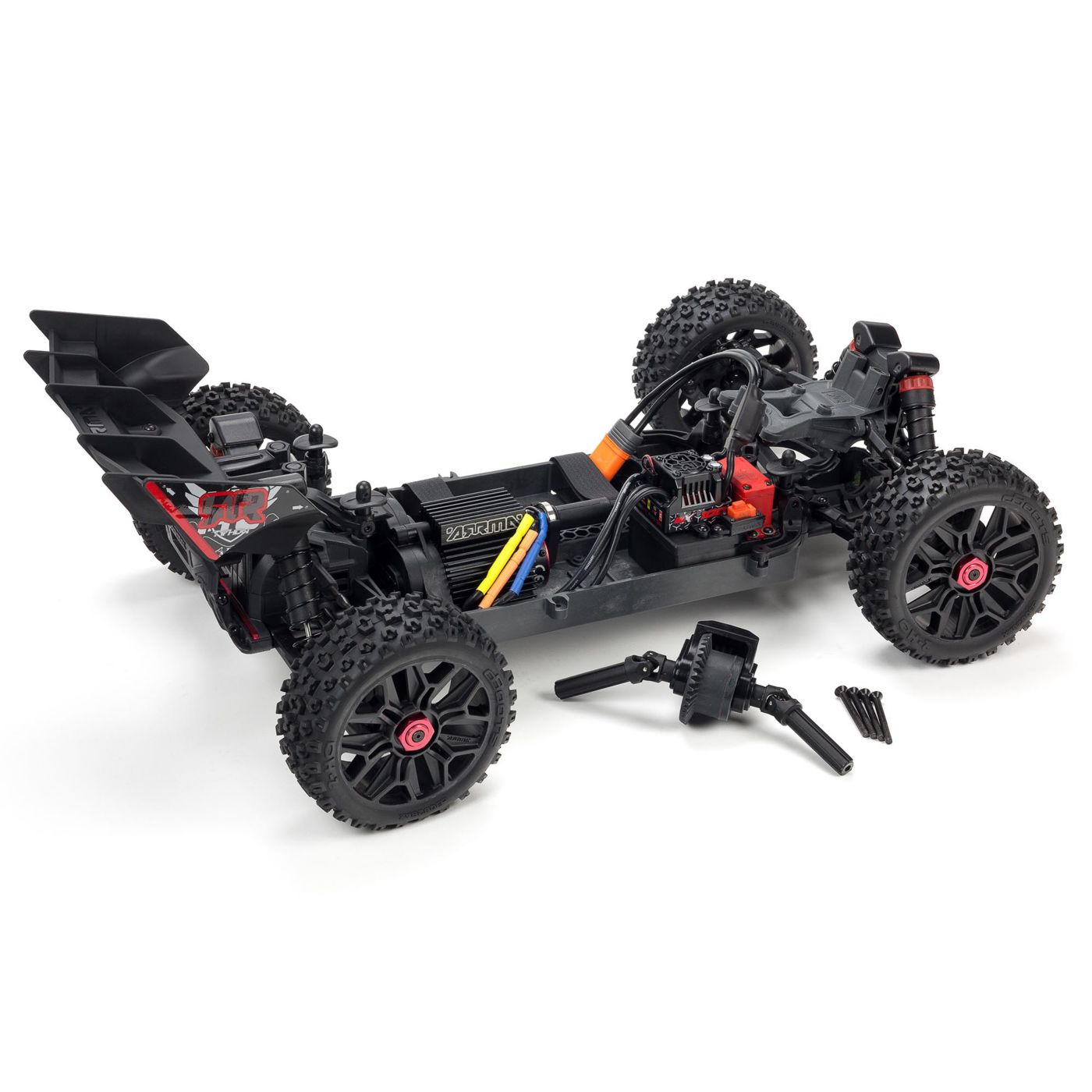

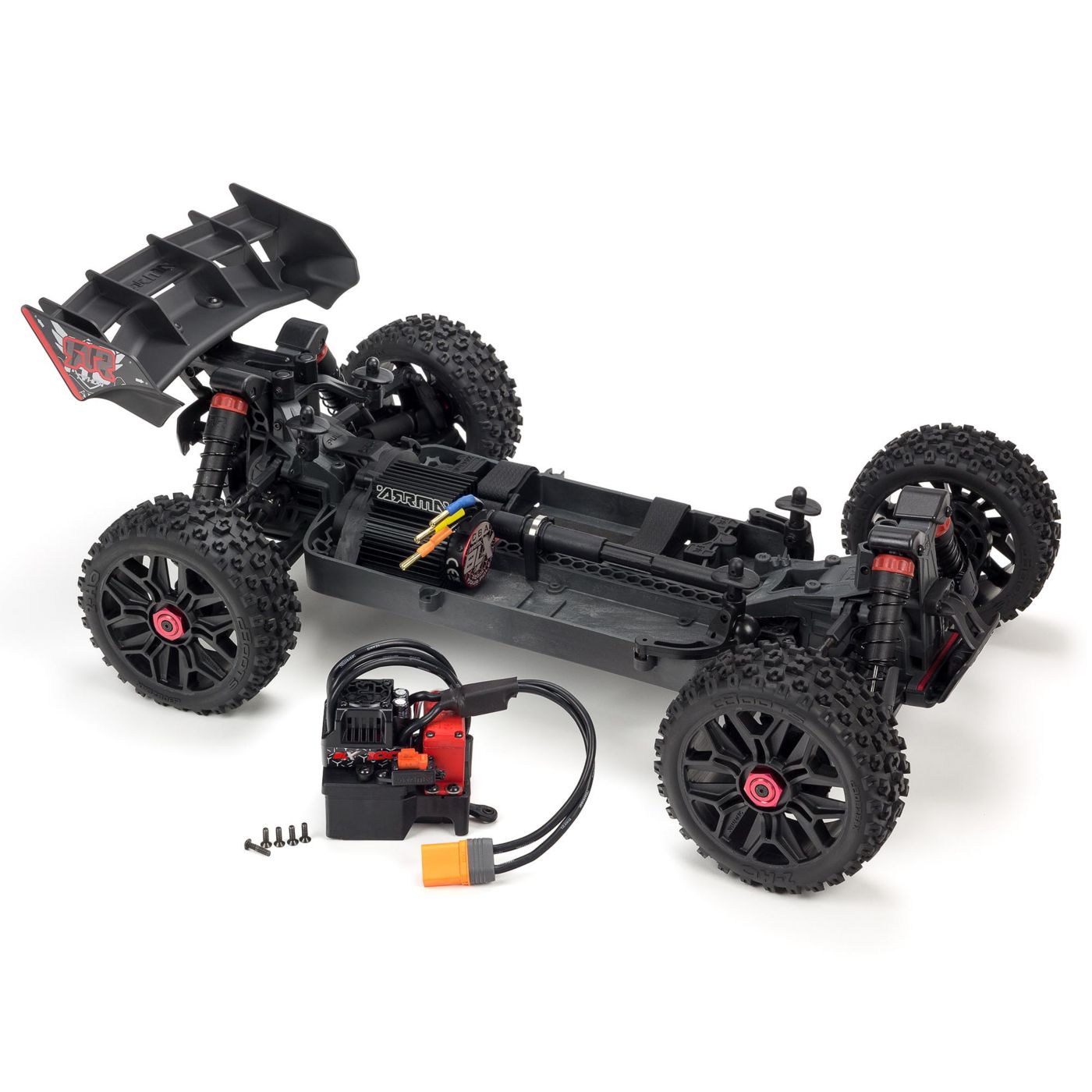

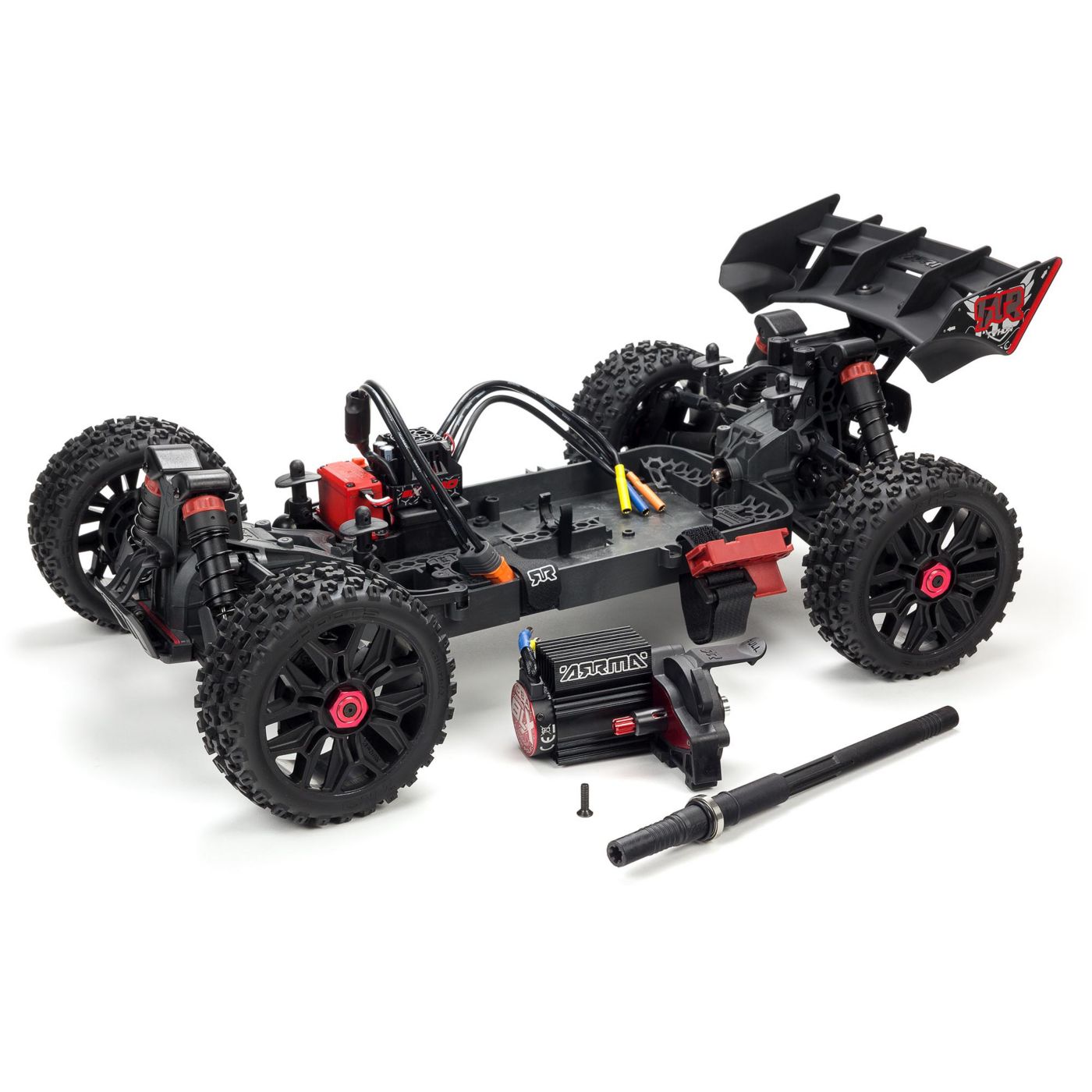

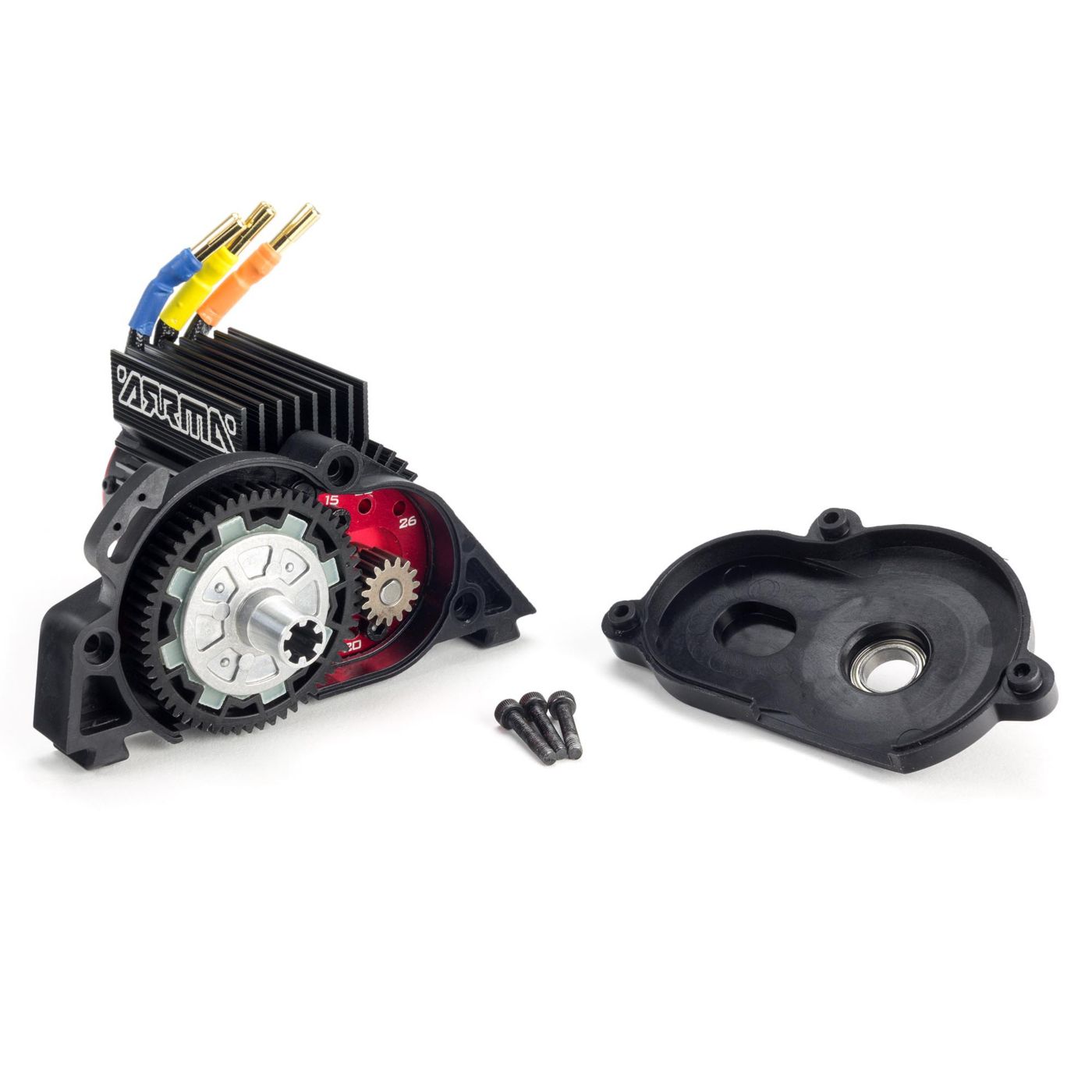

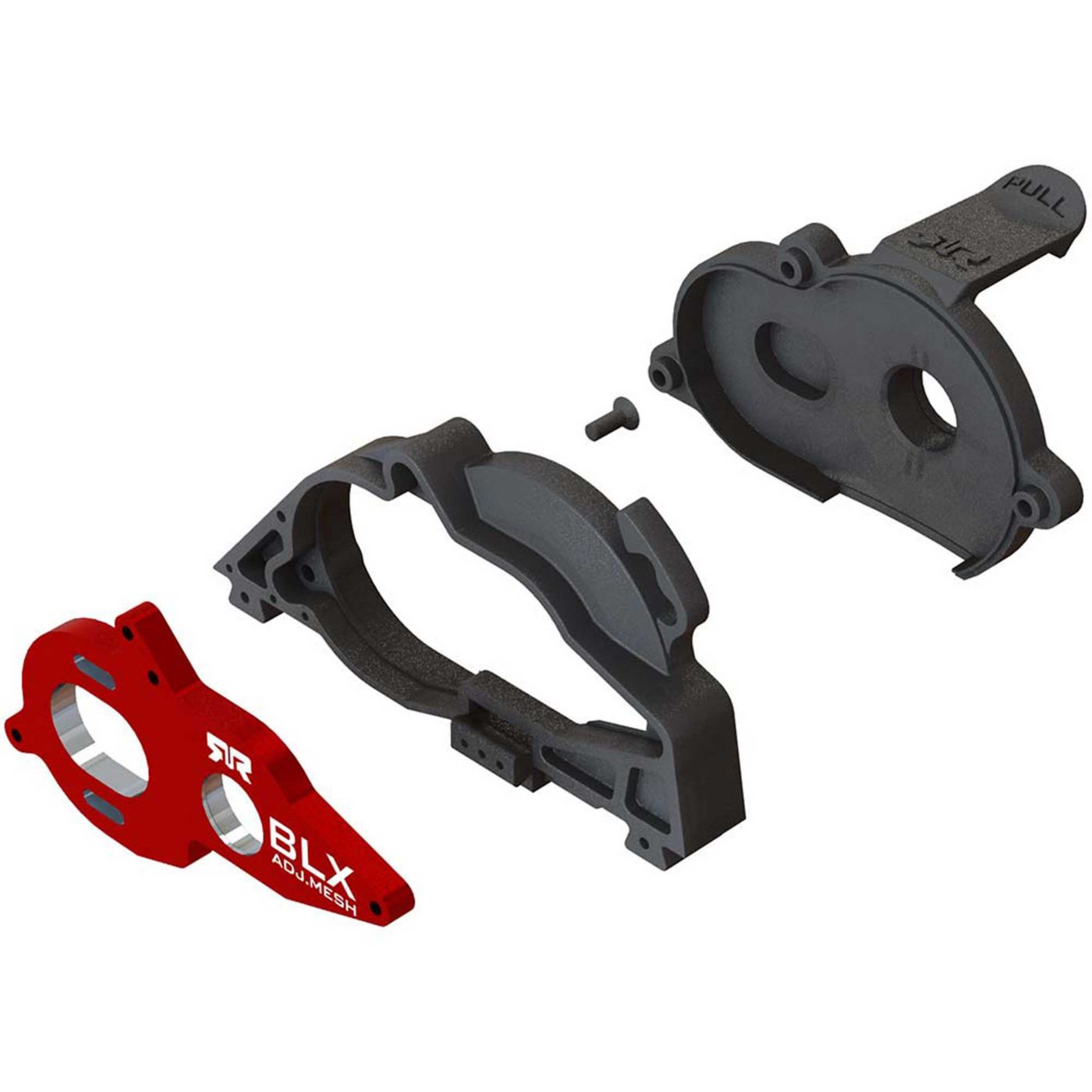

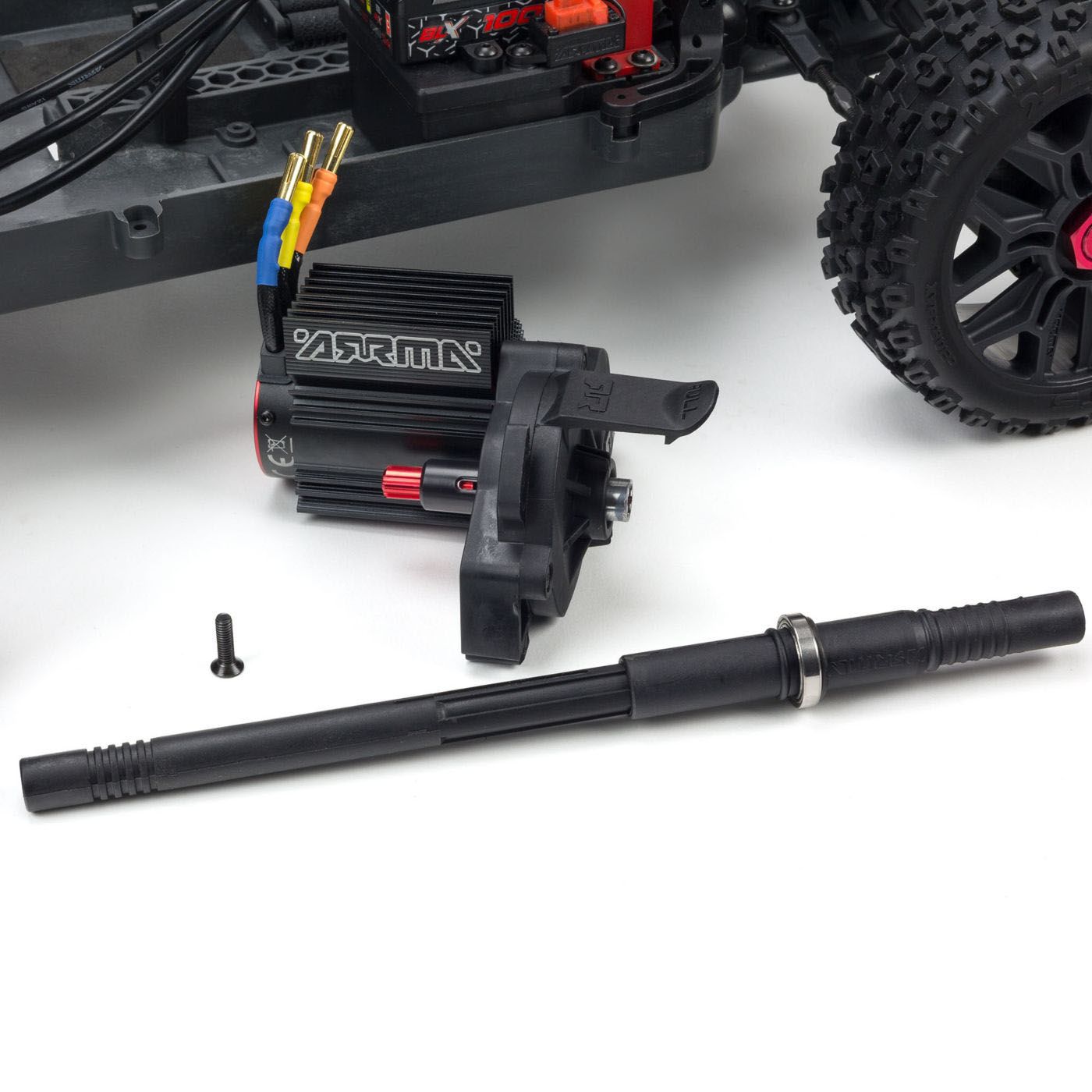

Easy-access Power Module
- Detaches from chassis as a complete unit by removing one screw

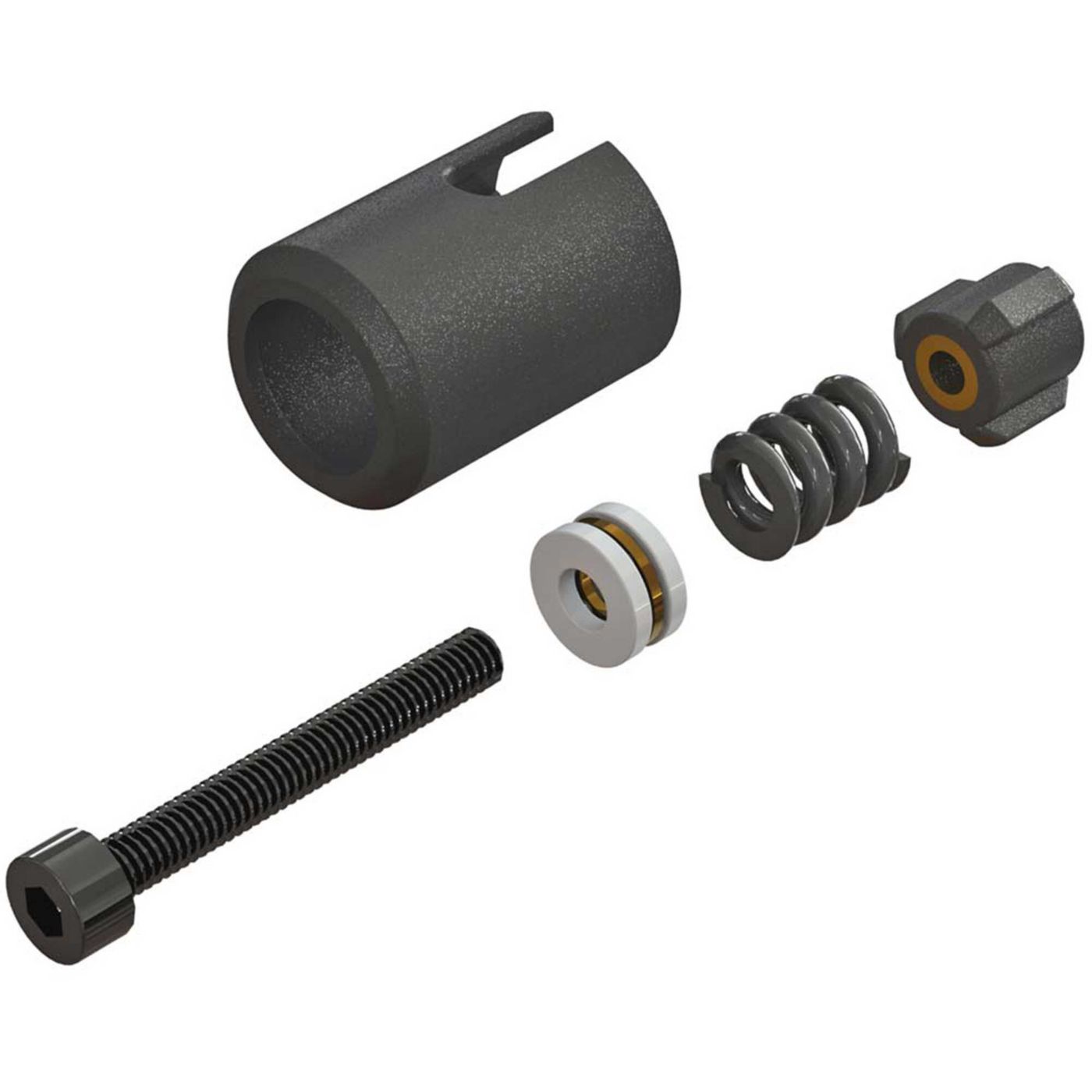

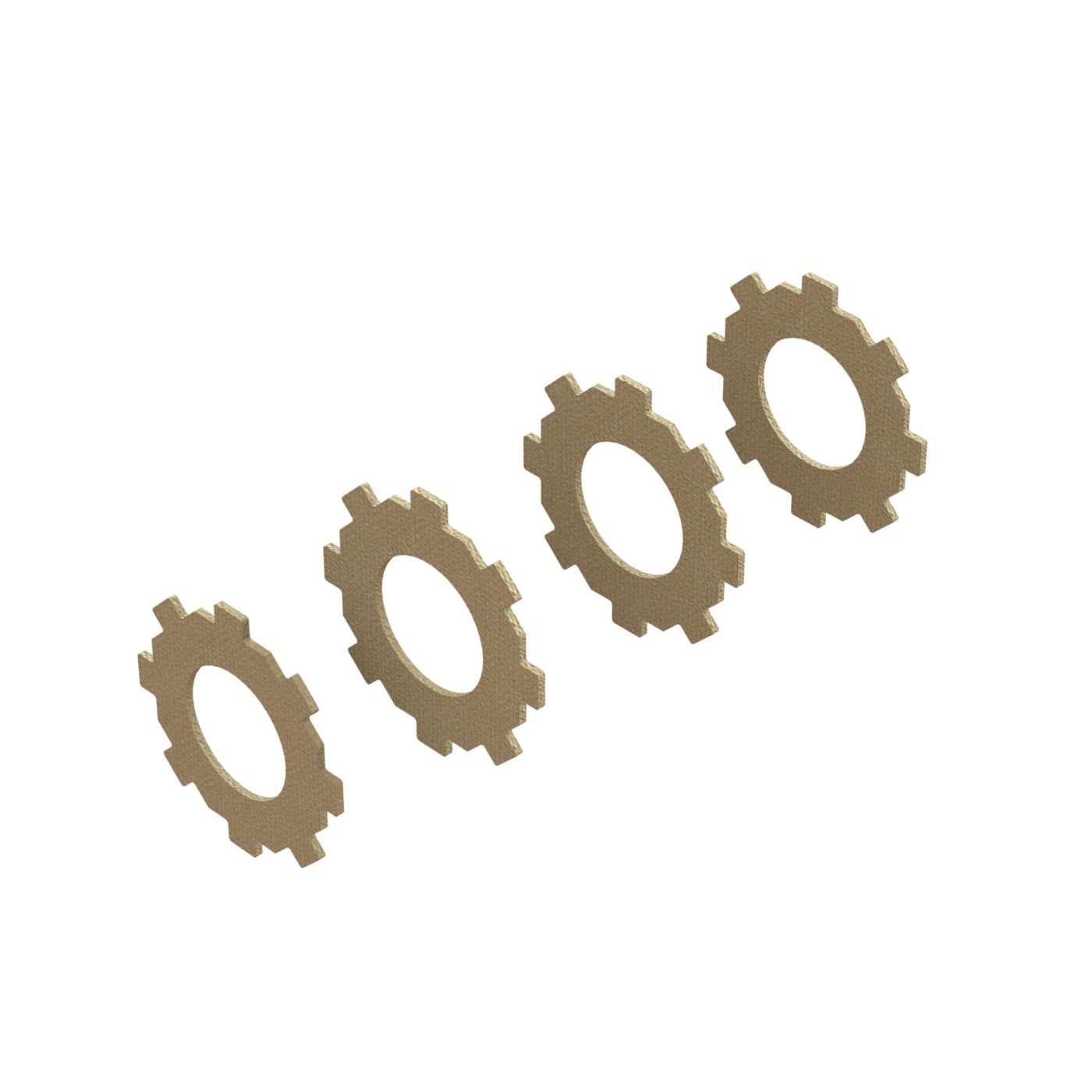

- Contains motor, motor plate, slipper clutch assembly and gear cover

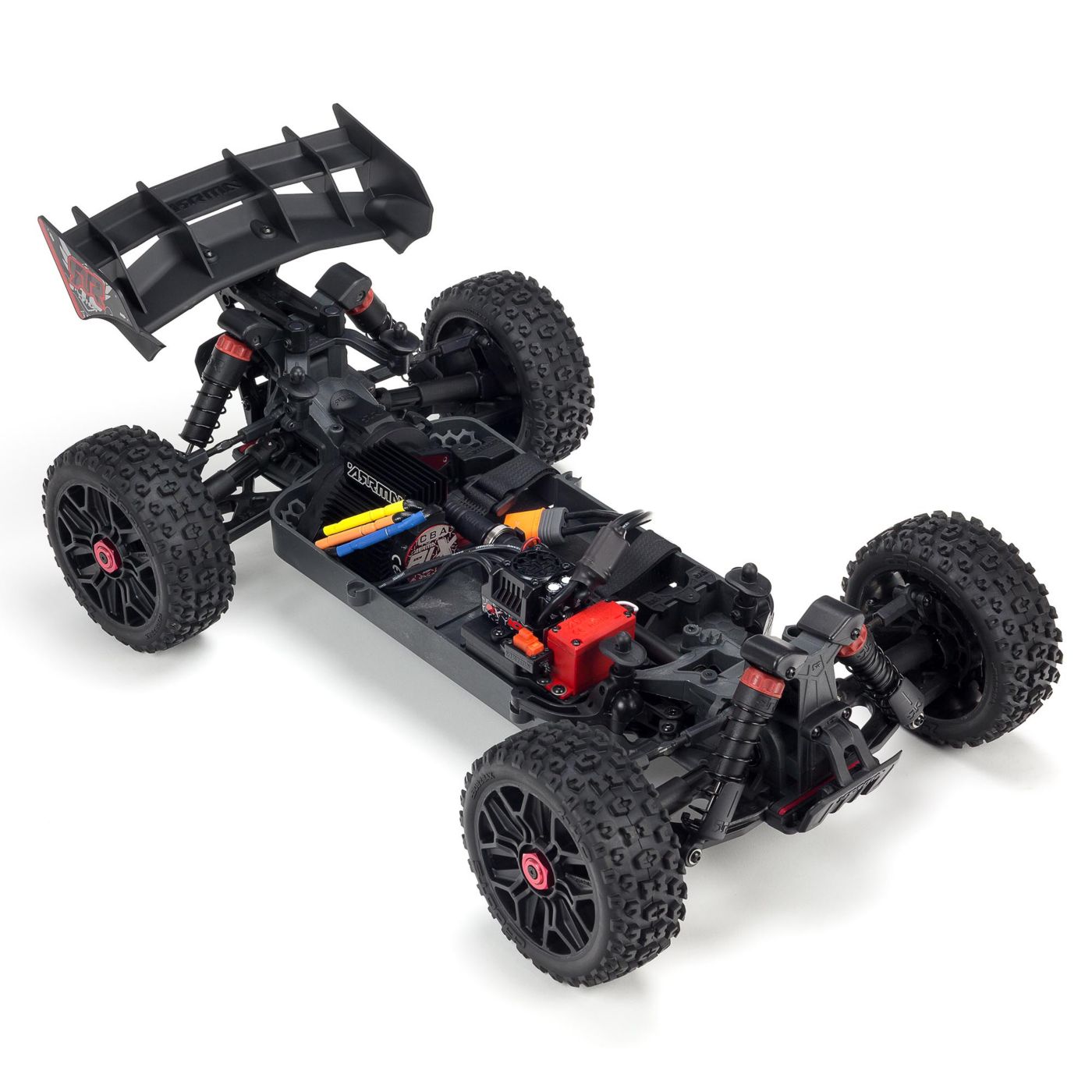

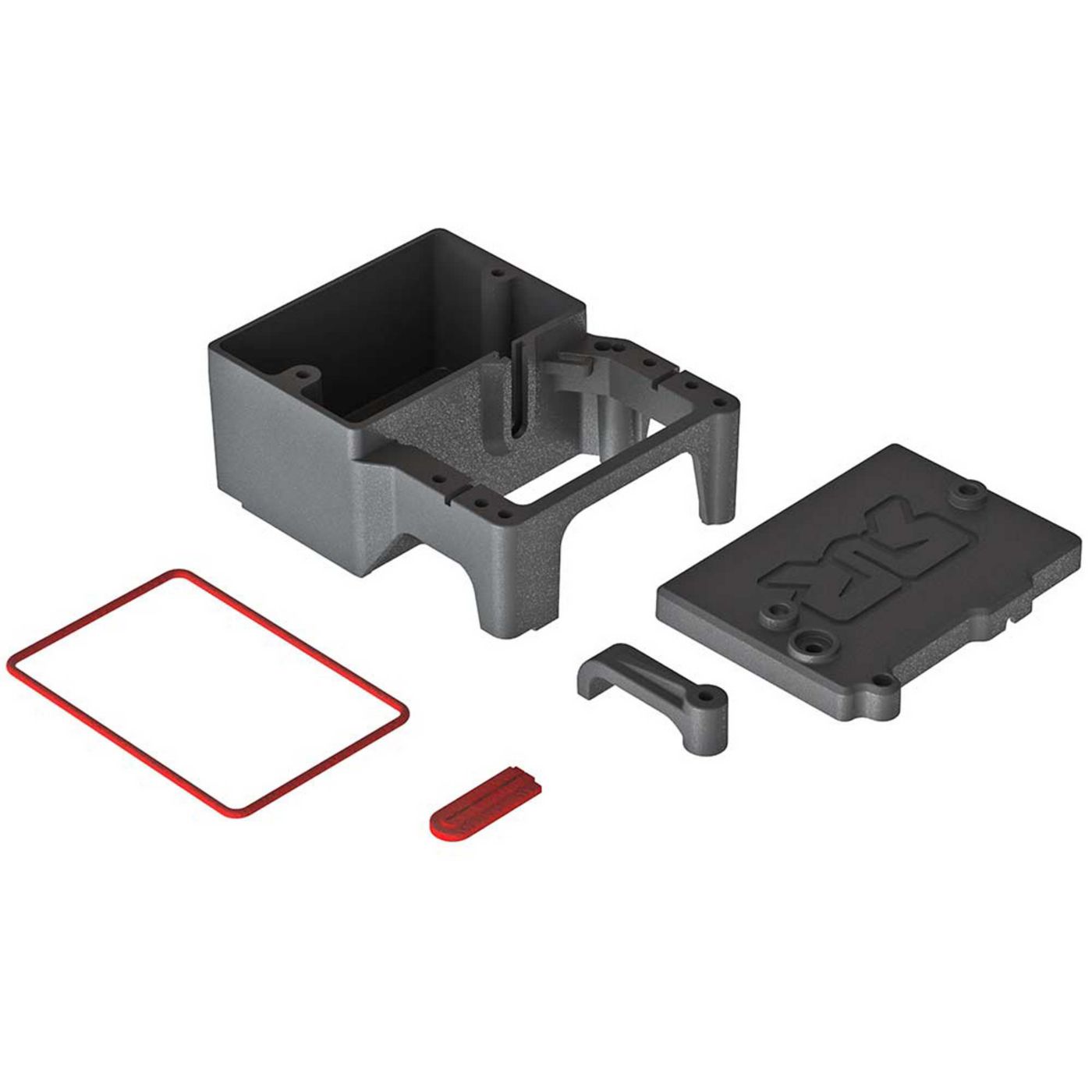

Easy-access Electronics Module
- Two-piece molding screwed to the chassis contains a waterproof receiver box, servo mount, and ESC tray
- Receiver mounts inside sealed module for protection from dirt and moisture
- ESC screws to the top for easy maintenance and switch access
- Servo mounts on the side for quick servicing

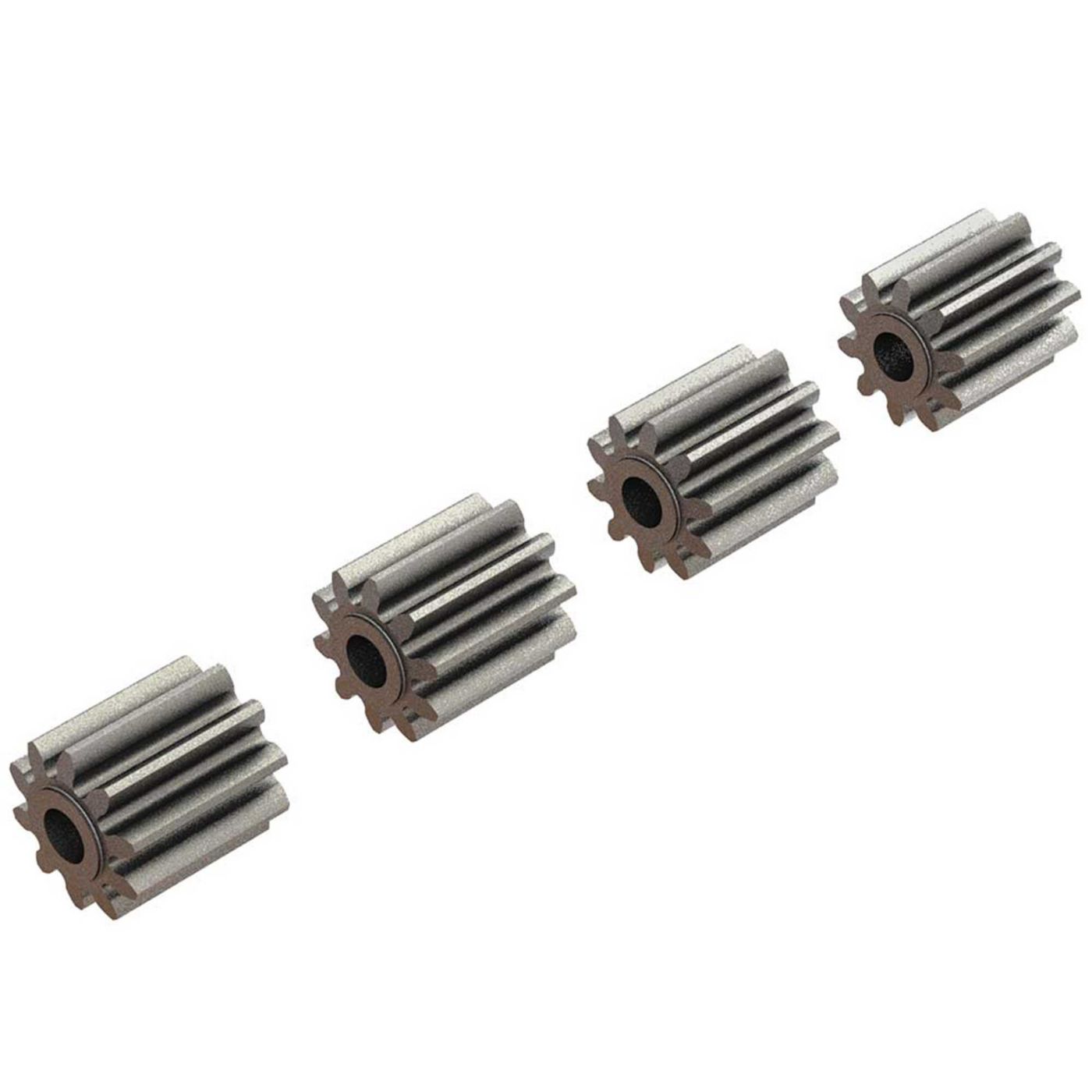

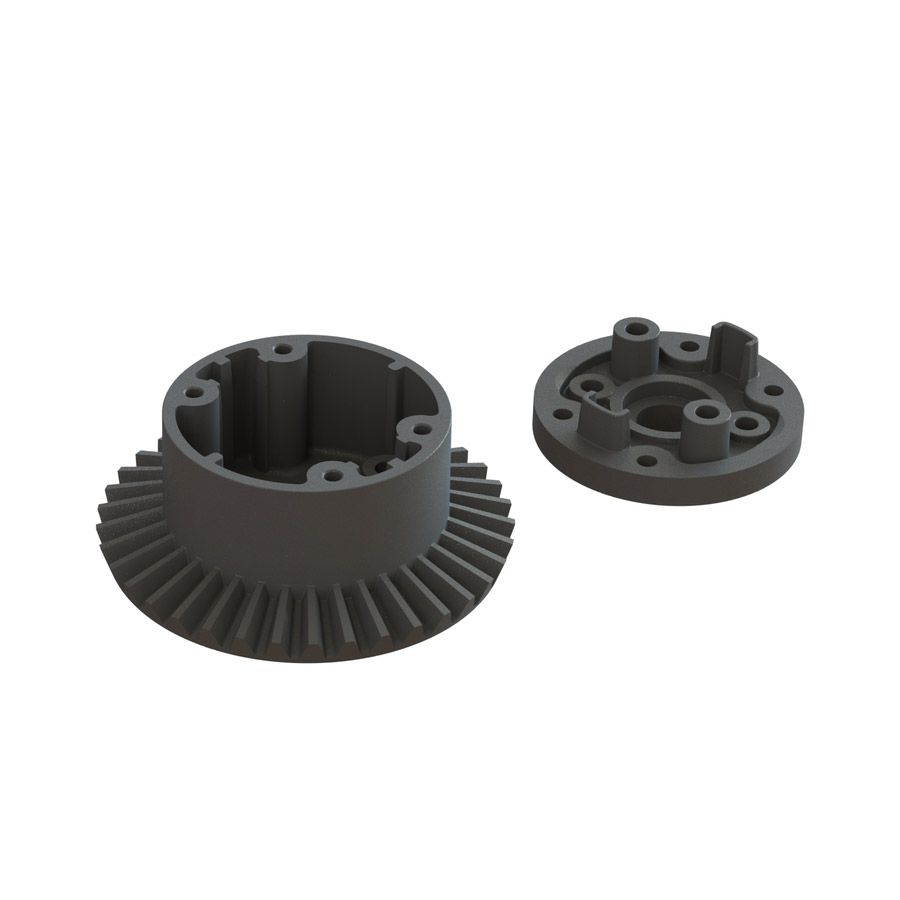

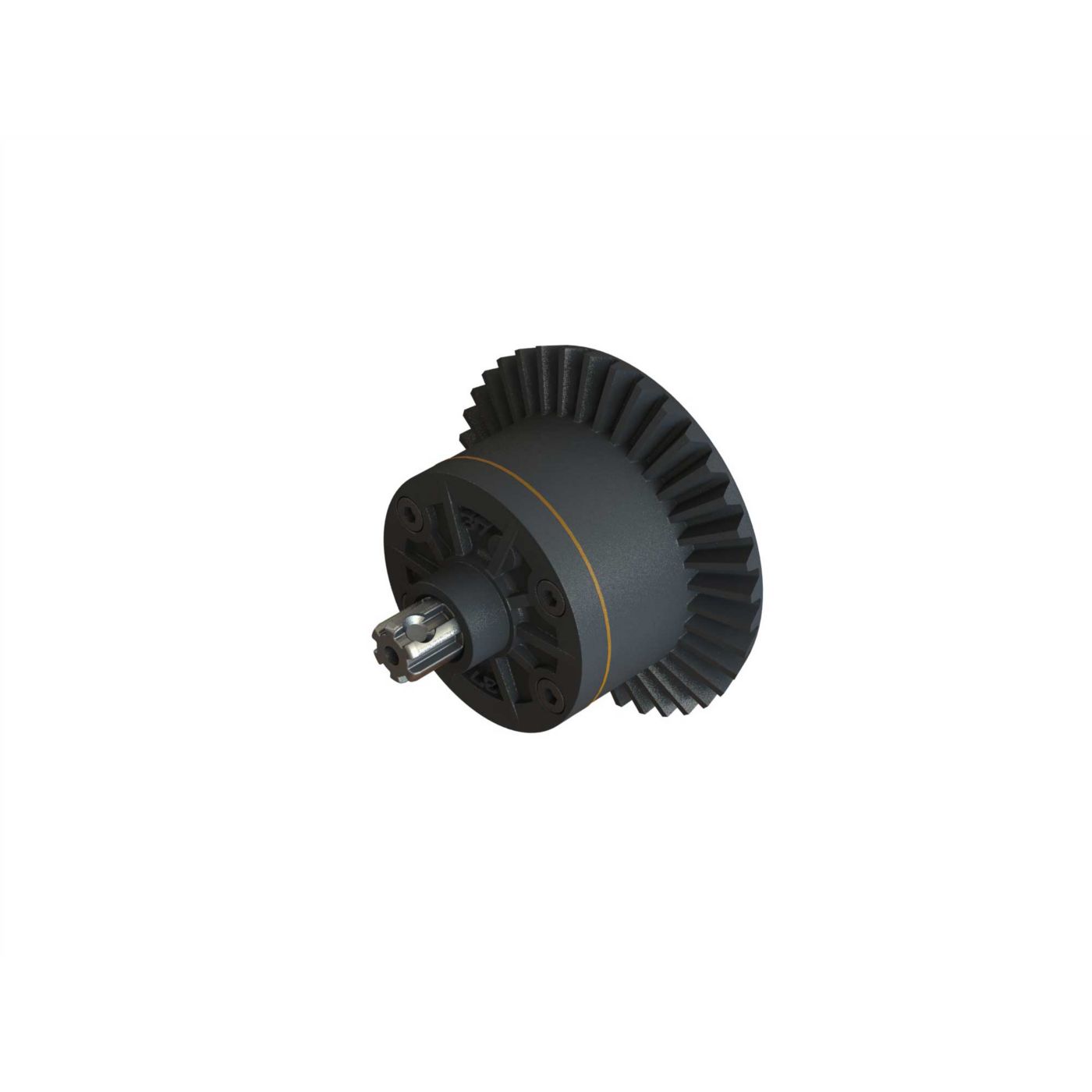

Metal-geared Differentials
- Large pitch gears engineered to handle BLX brushless power
- Internal metal gears chosen for extreme bashing, longevity and reliability
- Easy-access front and rear diff module removal

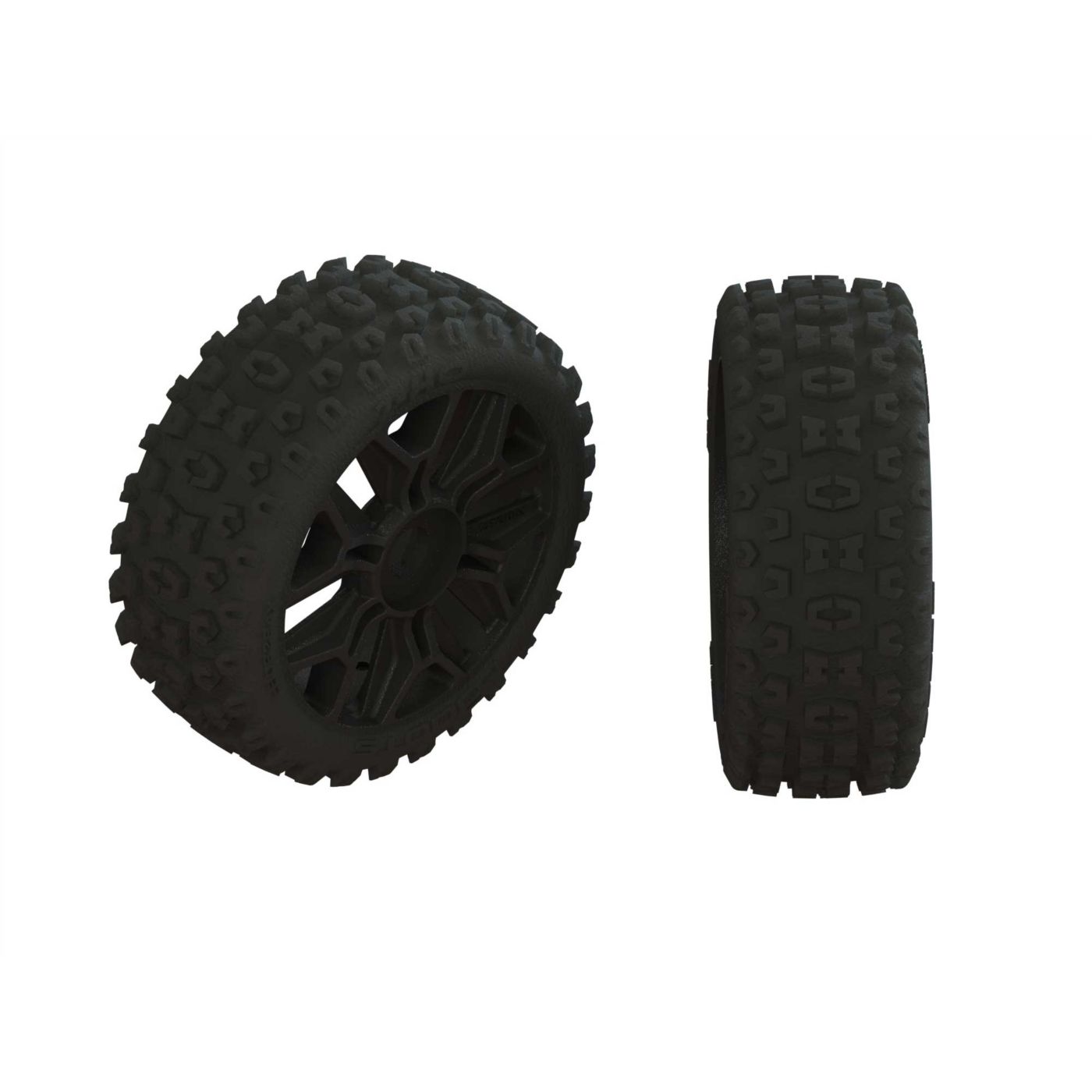

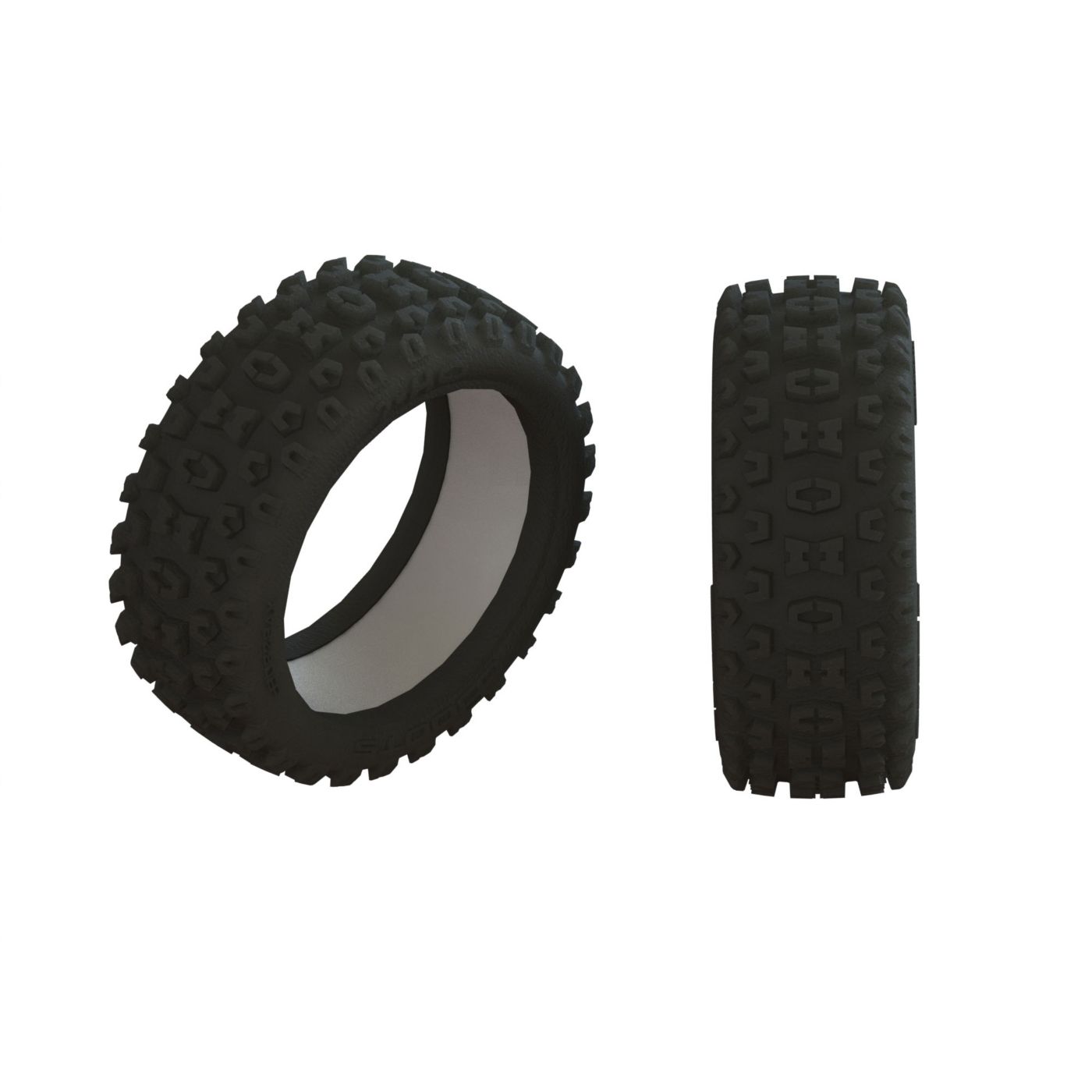

dBoots® 2-HQ Multi-terrain Tires
Black multi-spoke wheels and 2-HQ all-terrain tires for superb traction and cornering wherever you may roam.
| Approximate Assembly Time: | Less than 1 Hour |
| Ball Bearings: | Transmission Only |
| Batteries: | 5000mAh+ 35C+ 2-3S LiPo or 6-8 Cell NiMH Hardcase Battery with IC5/EC5 Connector (sold separately) |
| Battery Dimensions: | 5.5 x 2 x 1.9" (140 x 51 x 48mm) with battery mounting blocks in place |

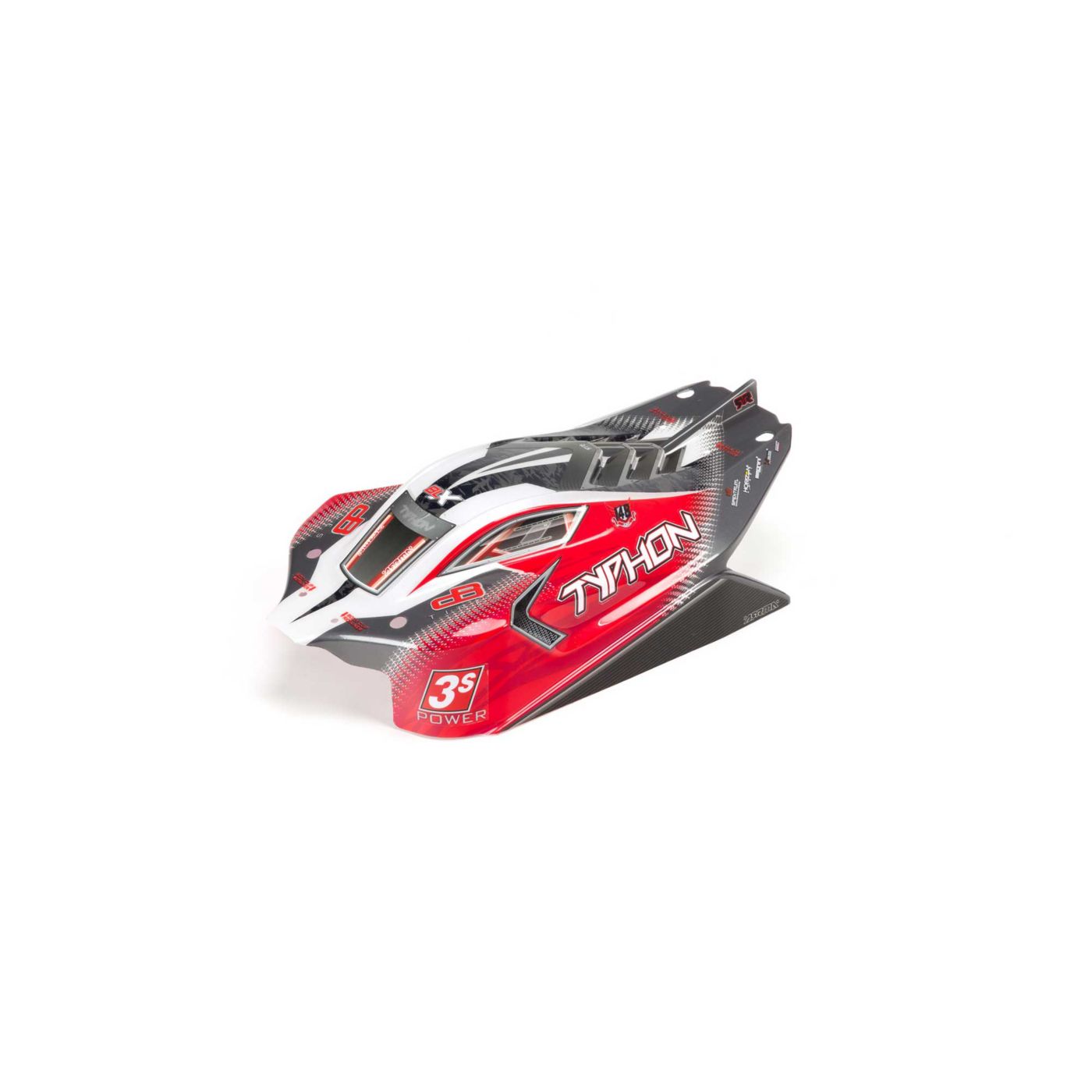

| Body: | Painted, decals applied, and trimmed |
| Brakes: | Electronic |
| Bushing Material: | Plastic |
| Charger: | Appropriate LiPo/NiMH charger (sold separately) |

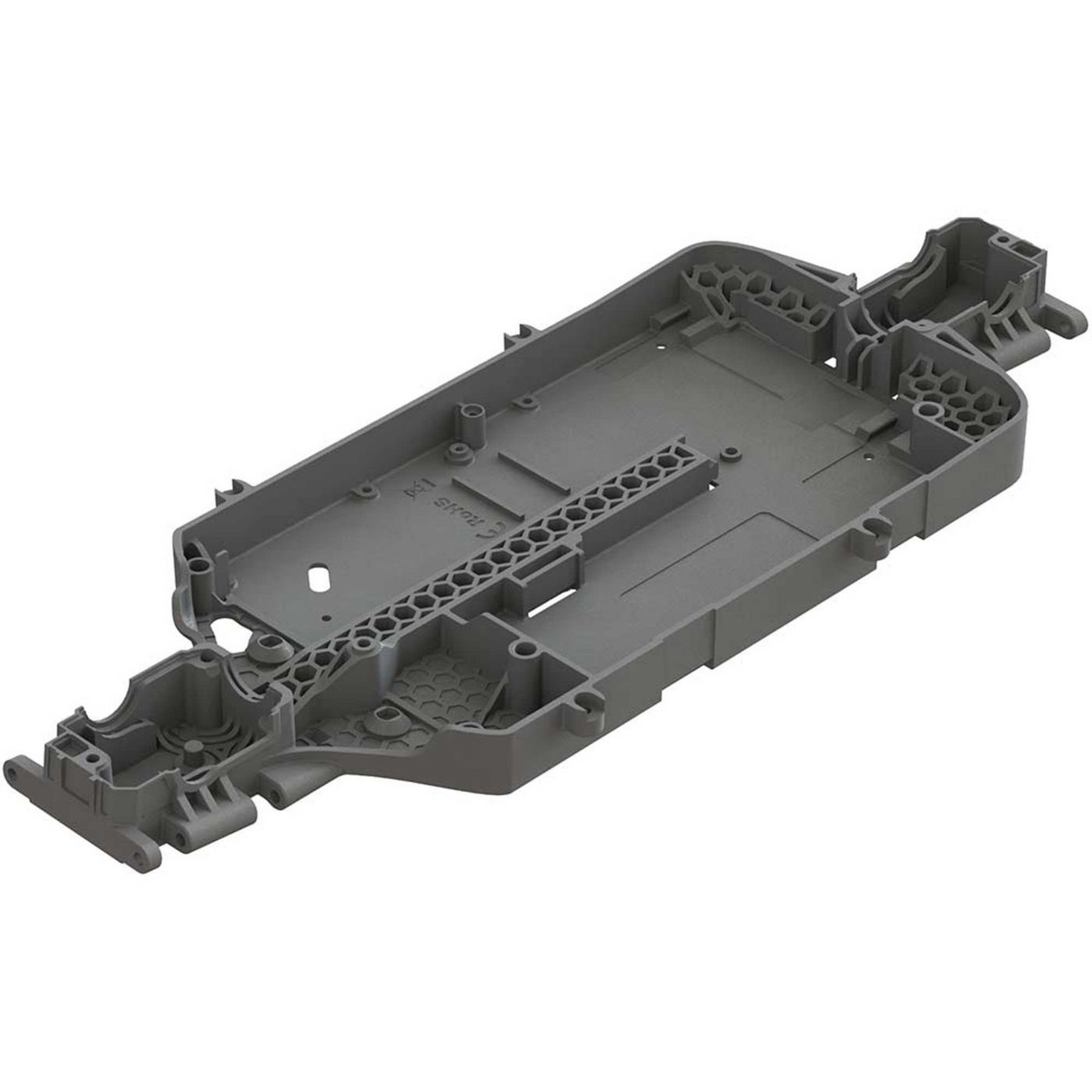

| Chassis: | Molded Composite |
| Completion Level: | Ready-To-Run |

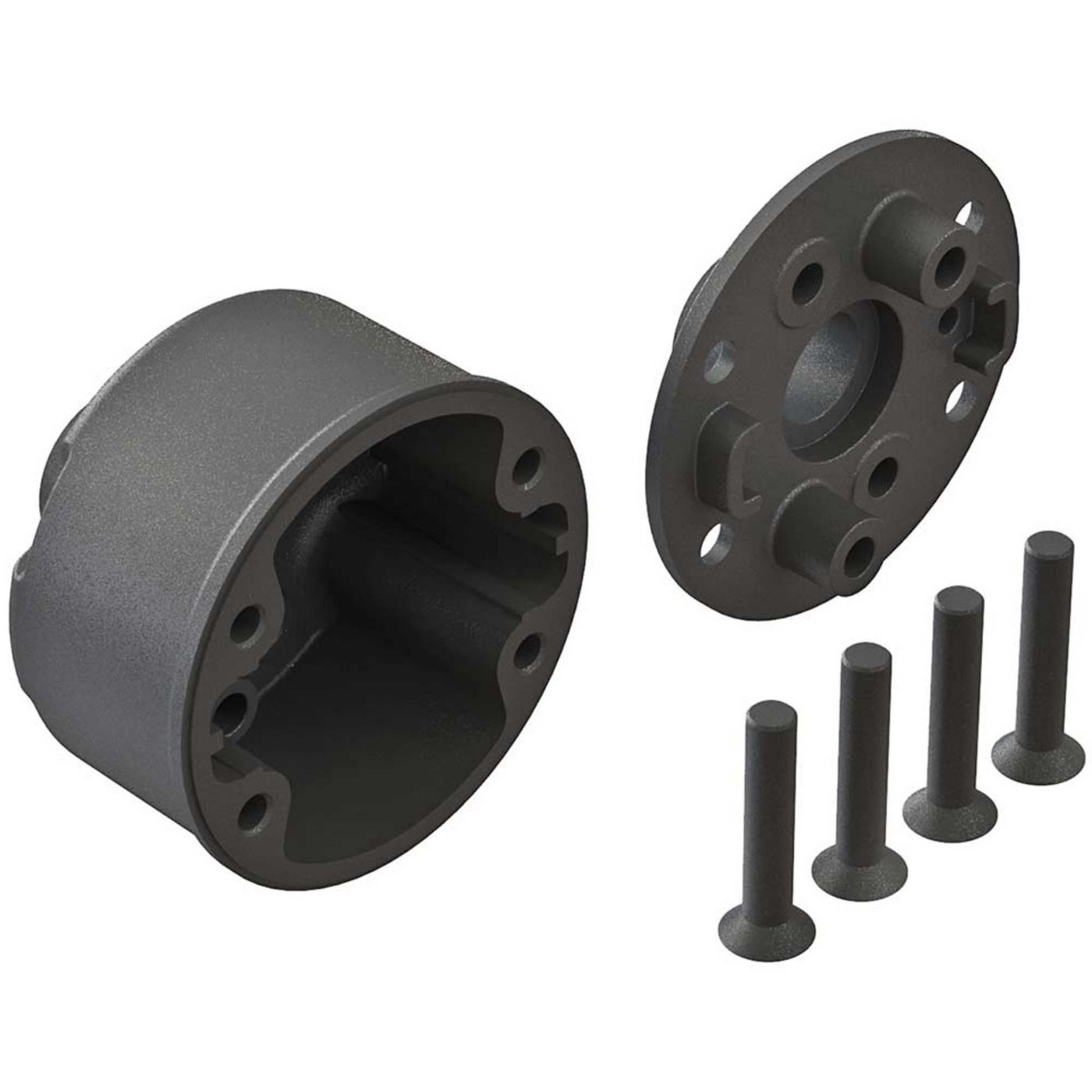

| Differential: | Oil filled, metal internal geared differentials |
| Drivetrain: | 4WD |
| Final Drive Ratio: | 10.83:1 |
| Gear Pitch: | 0.8 Module |
| Ground Clearance: | 1.65 in (42mm) |
| Height: | 7.68 in (195mm) |
| Internal Gear Ratio: | 2.85:1 |
| Length: | 20.12 in (511mm) |
| Max Battery Dimensions: | 6.50 x 2 x 1.9" (165 x 51 x 48mm) with battery mounting blocks removed |
| Motor Size: | 3660 |
| Motor Type: | Non-Sensored Brushless 3200Kv |

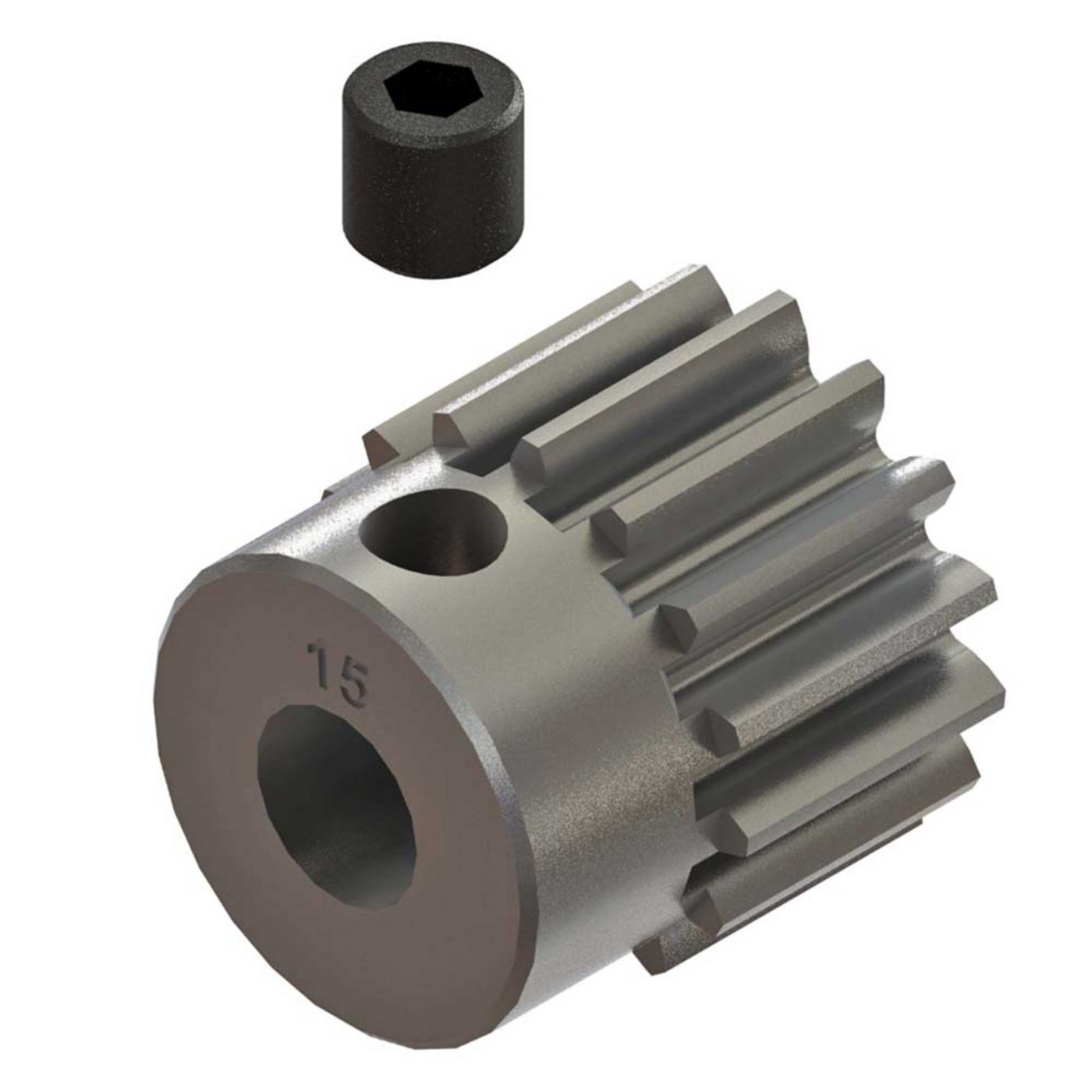

| Pinion: | 15T |
| Radio: | Spektrum STX2 2-channel |
| Scale: | 1/8 |
| Servos: | Waterproof, metal gear |

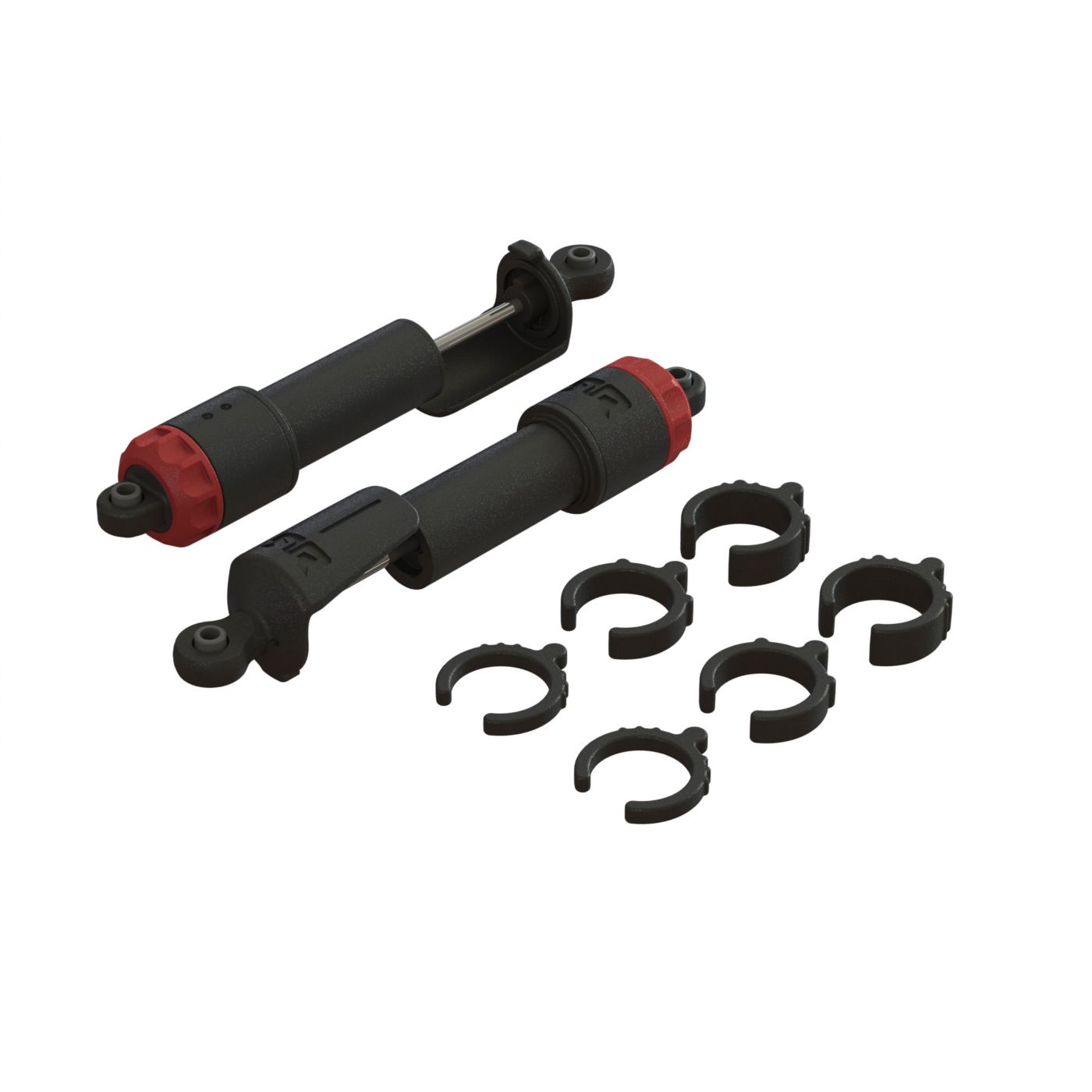

| Shock Type: | Coil-over-oil, Molded Composite |
| Speed Control: | BLX100, Waterproof, IC5 connector |

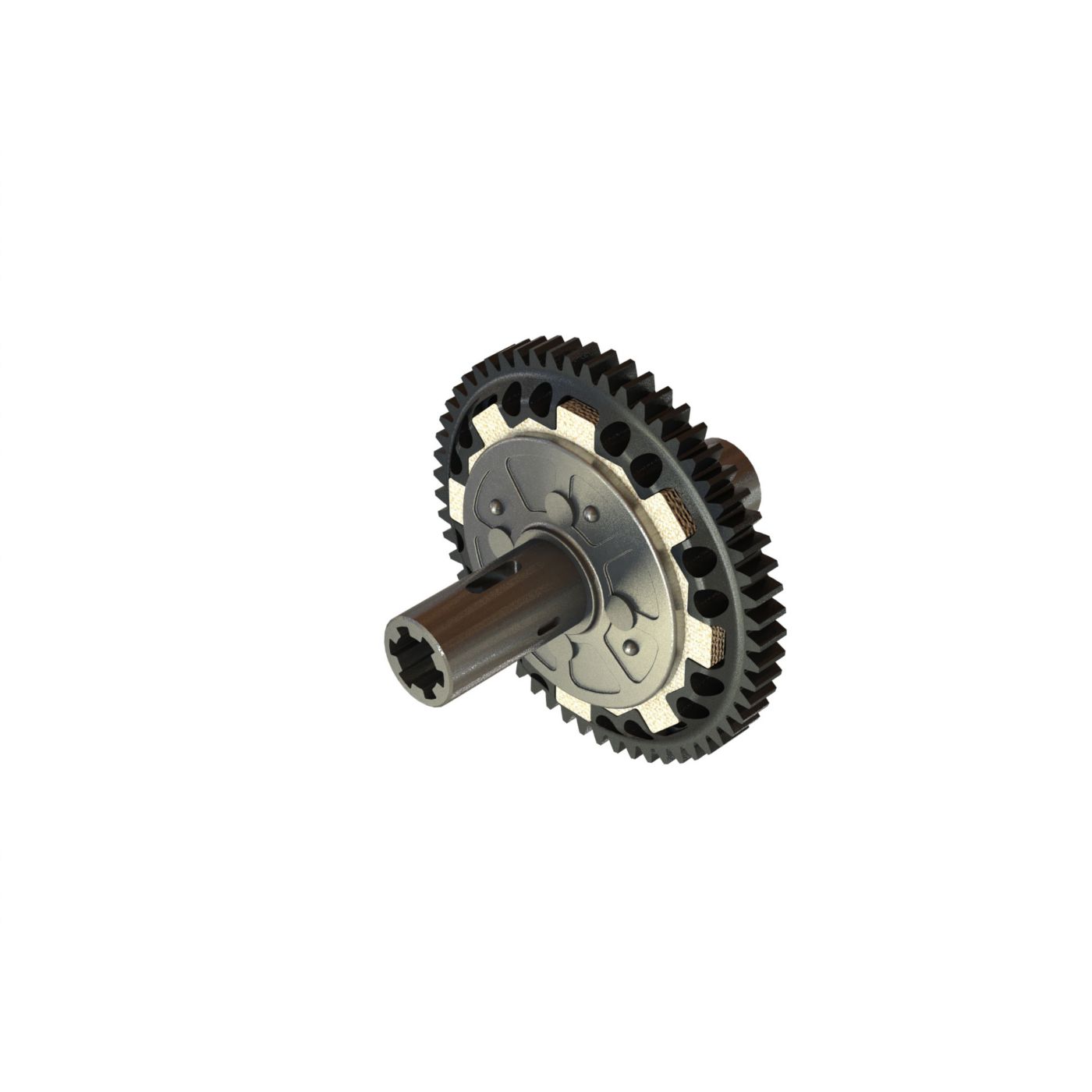

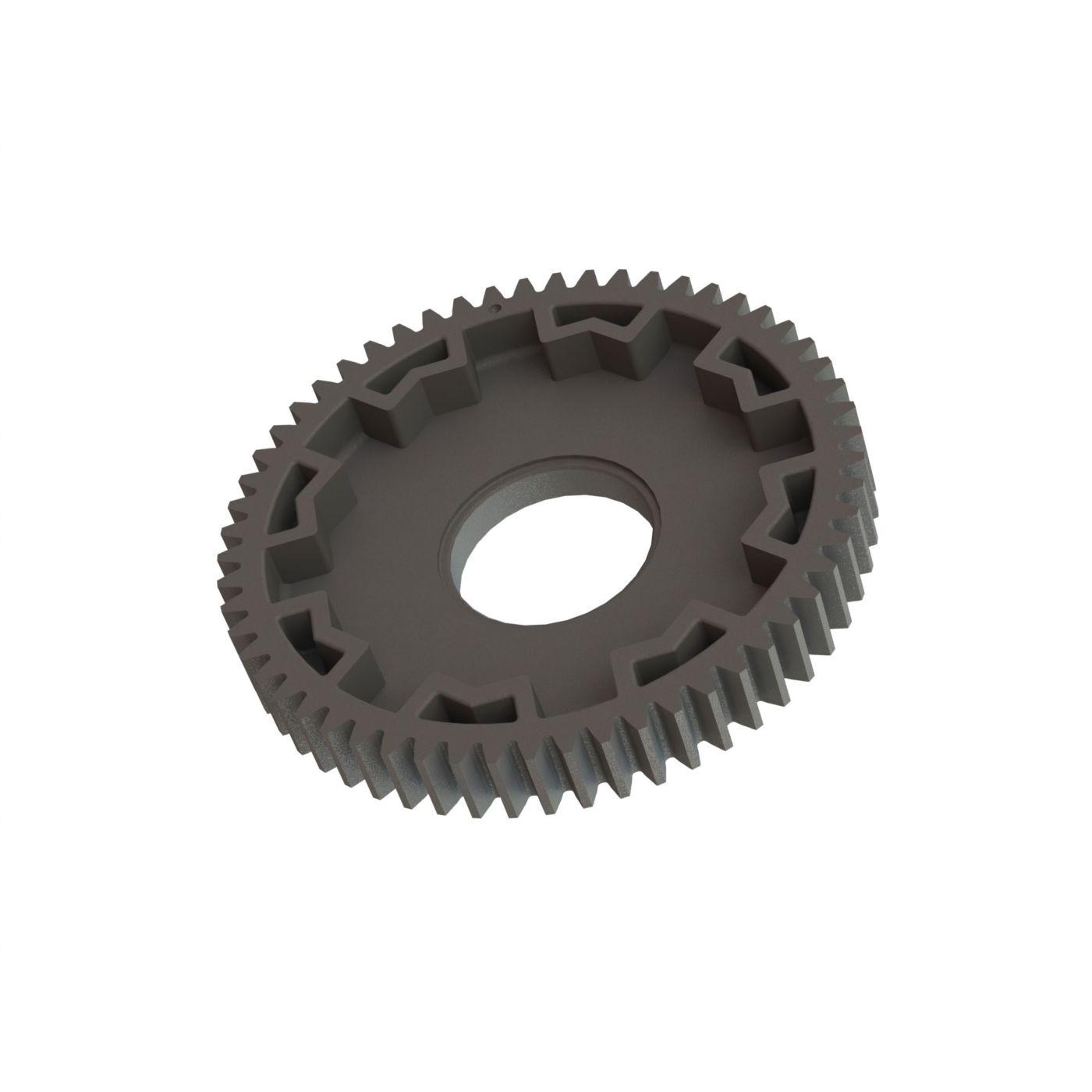

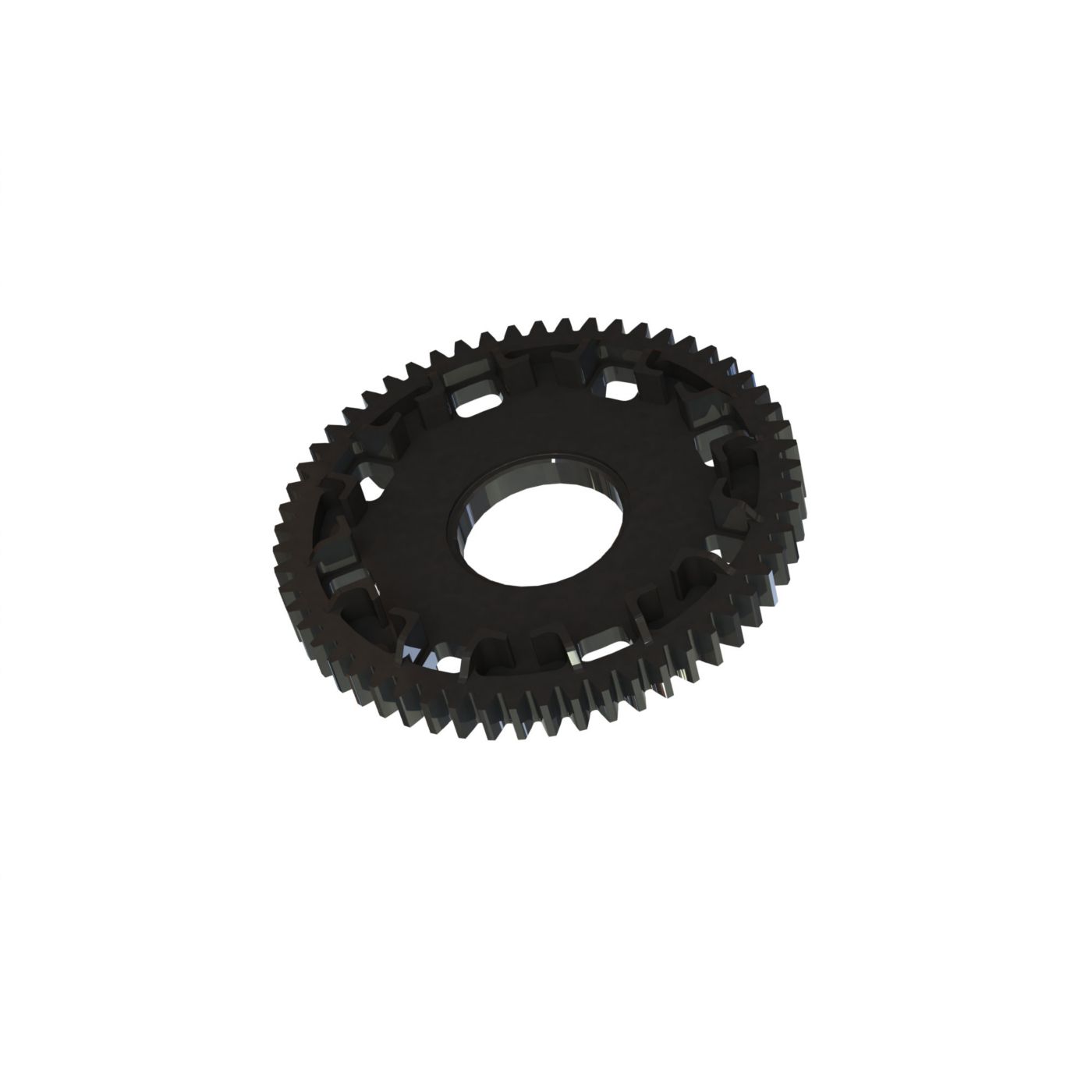

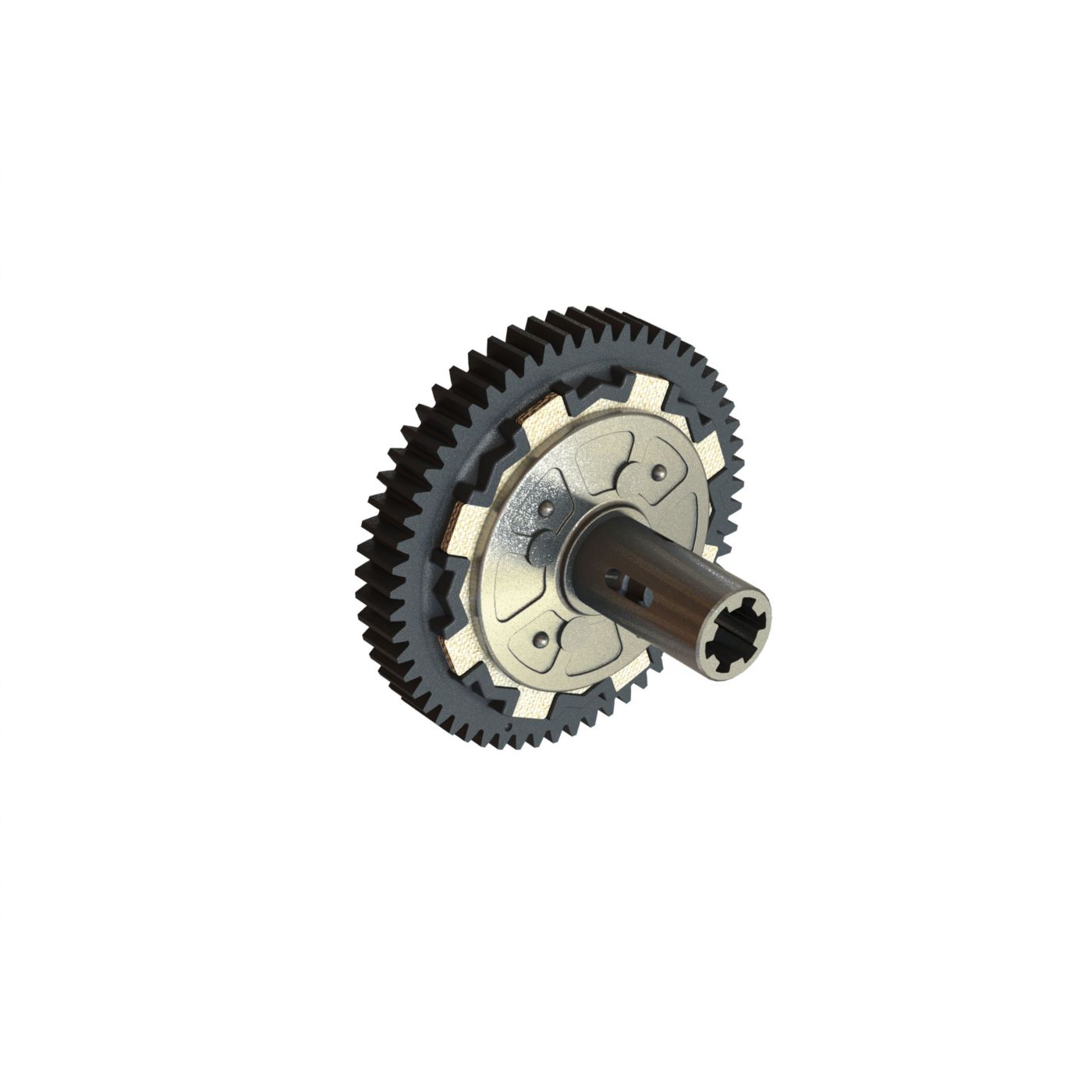

| Spur Gear: | 57T |
| Suspension: | Independent |
| Tire Diameter: | 4.60 in (117mm) |
| Tire Tread: | 2-HQ |
| Vehicle Type: | Buggy |
| Water-Resistant: | Yes |
| Weight: | 5.68 lb (2.58kg) |
| Wheel Diameter: | 3.37 in (83mm) |
| Wheel Type: | 1/8th Buggy, 17mm Hex |
| Wheelbase: | 12.91 in (328mm) |
| Width: | 12.05 in (306mm) |

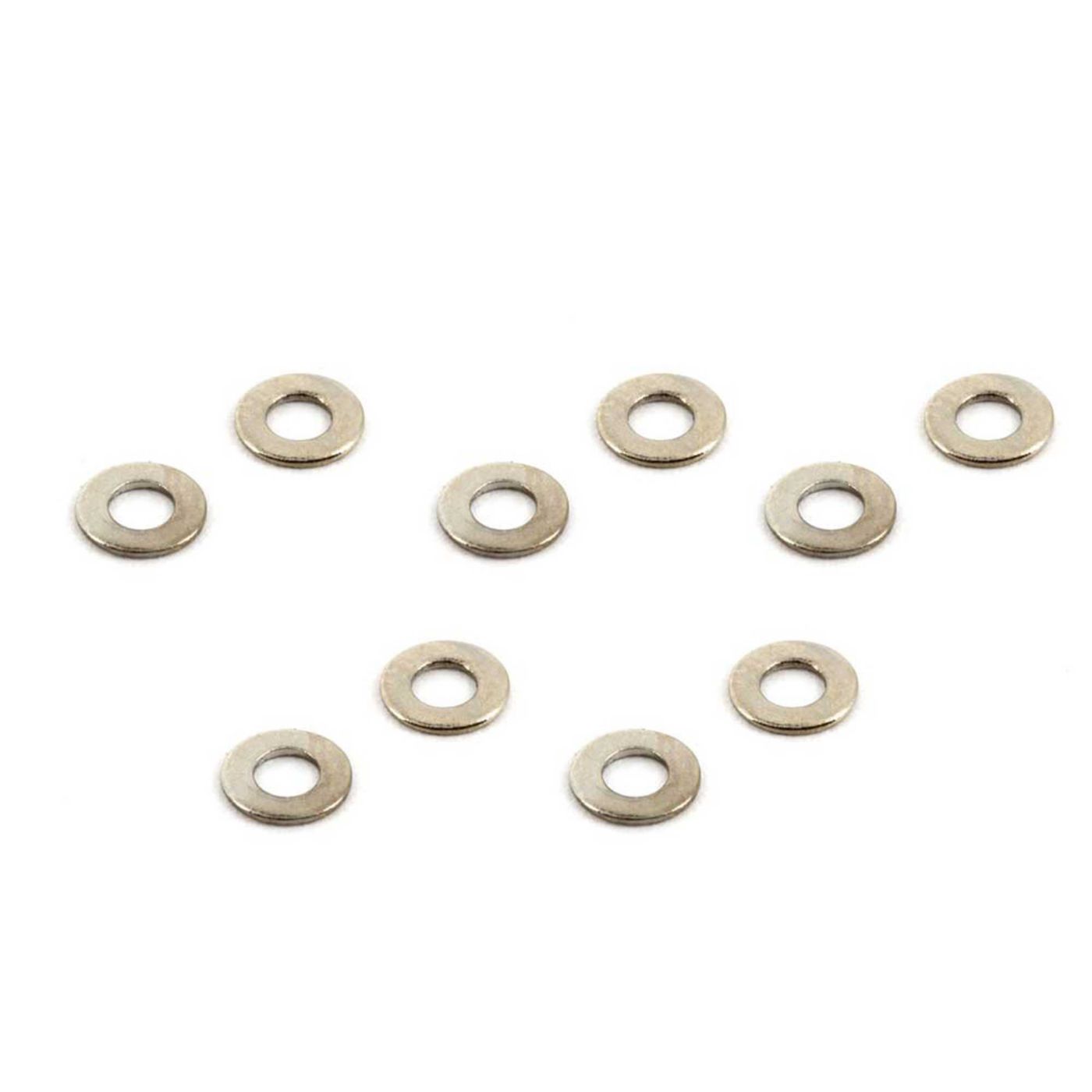

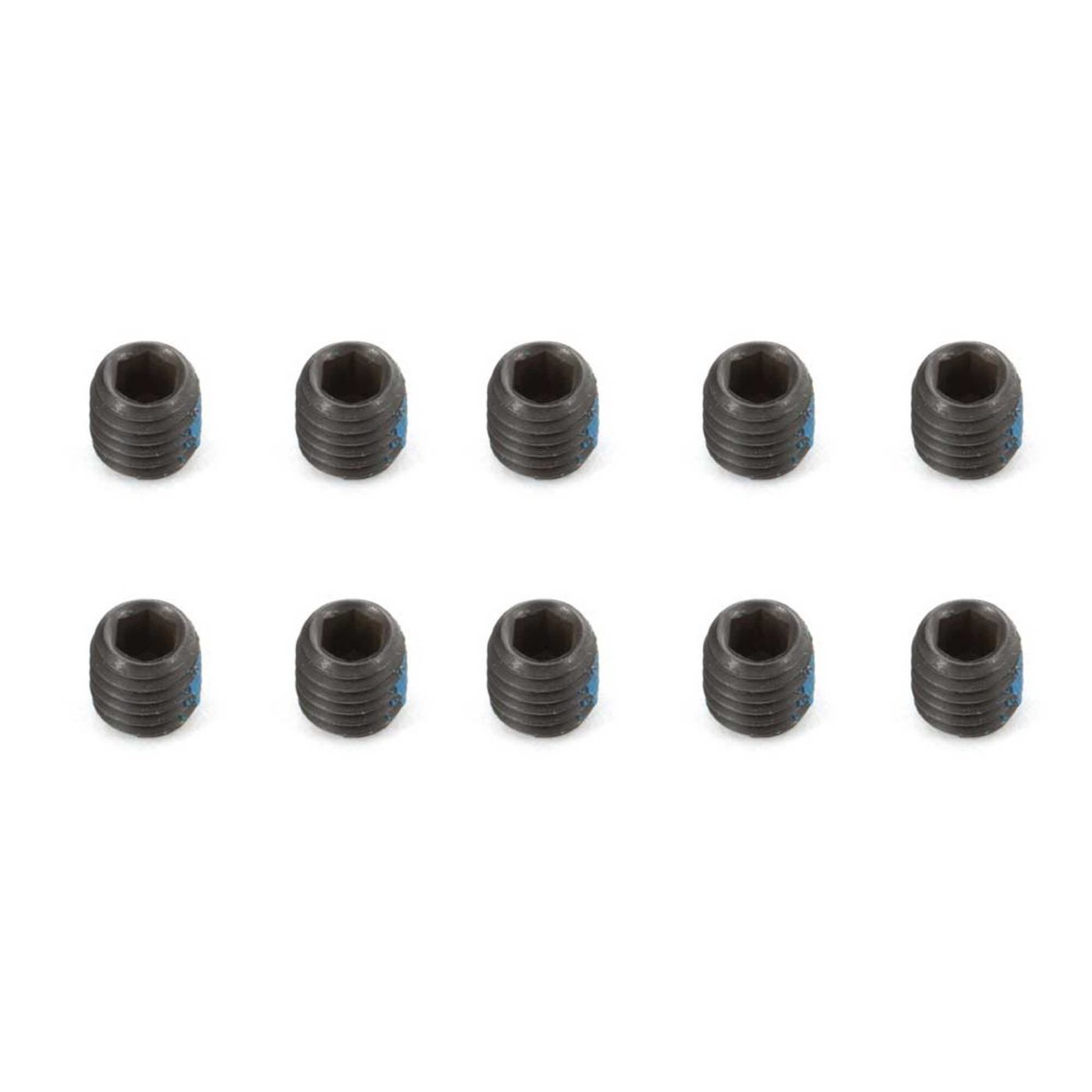

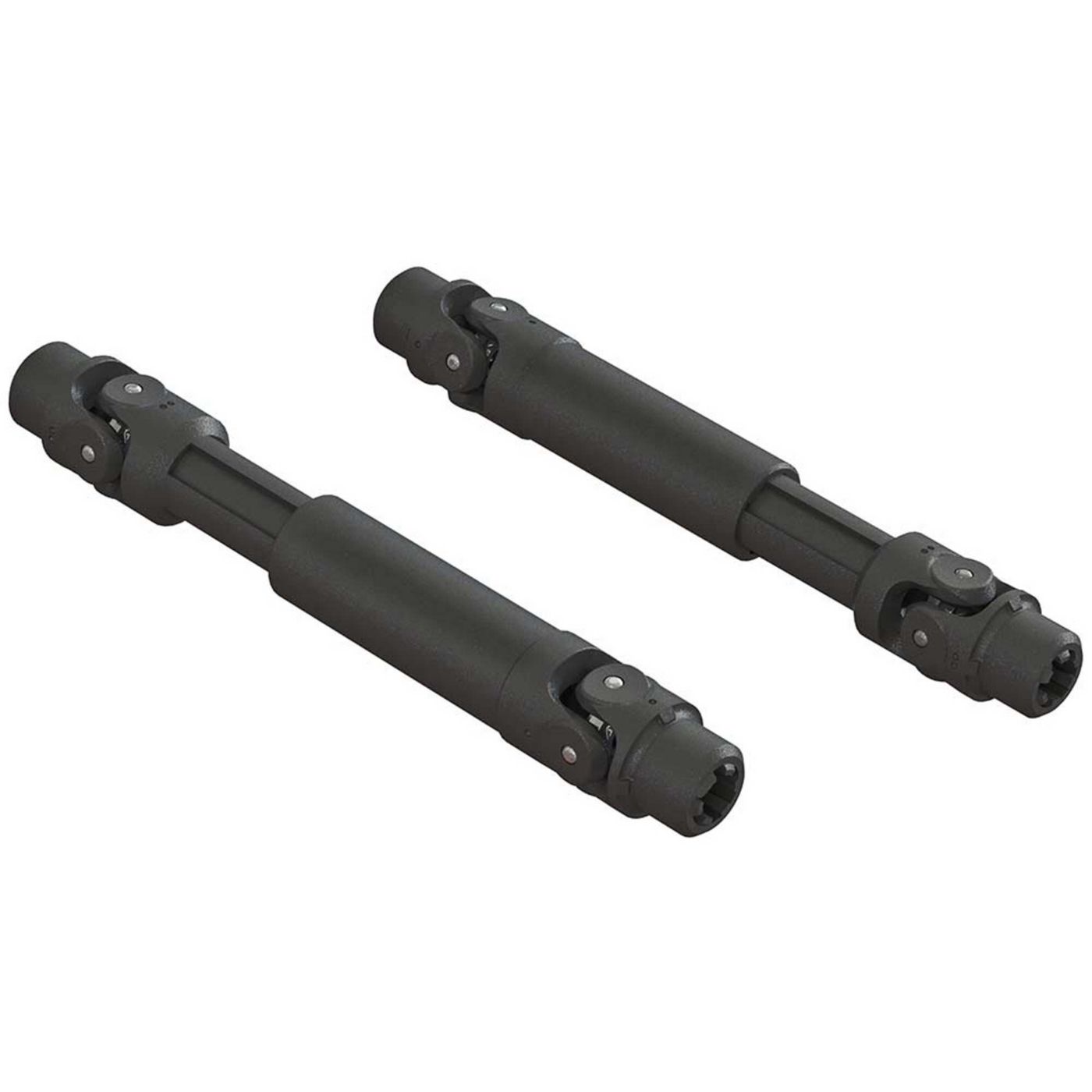

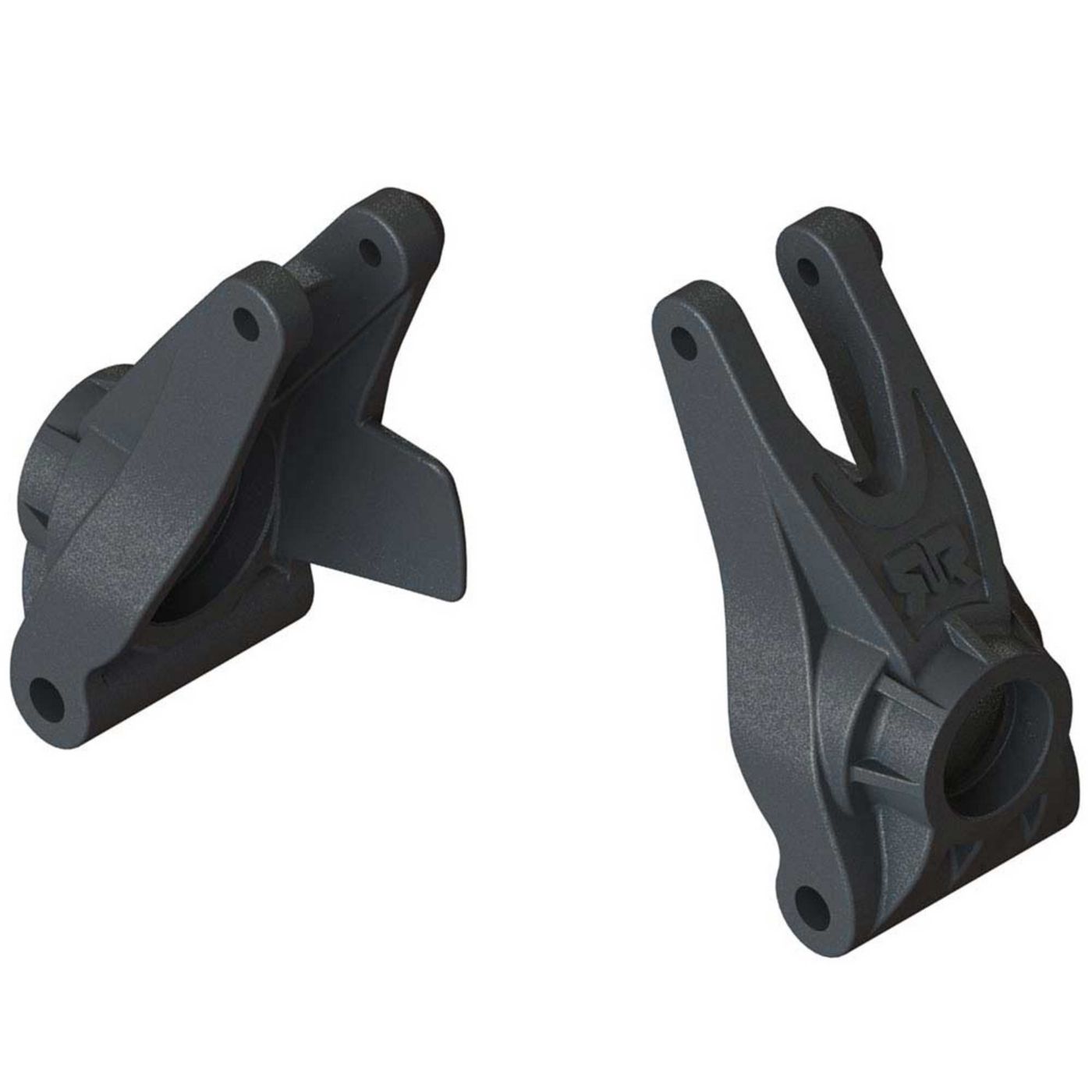

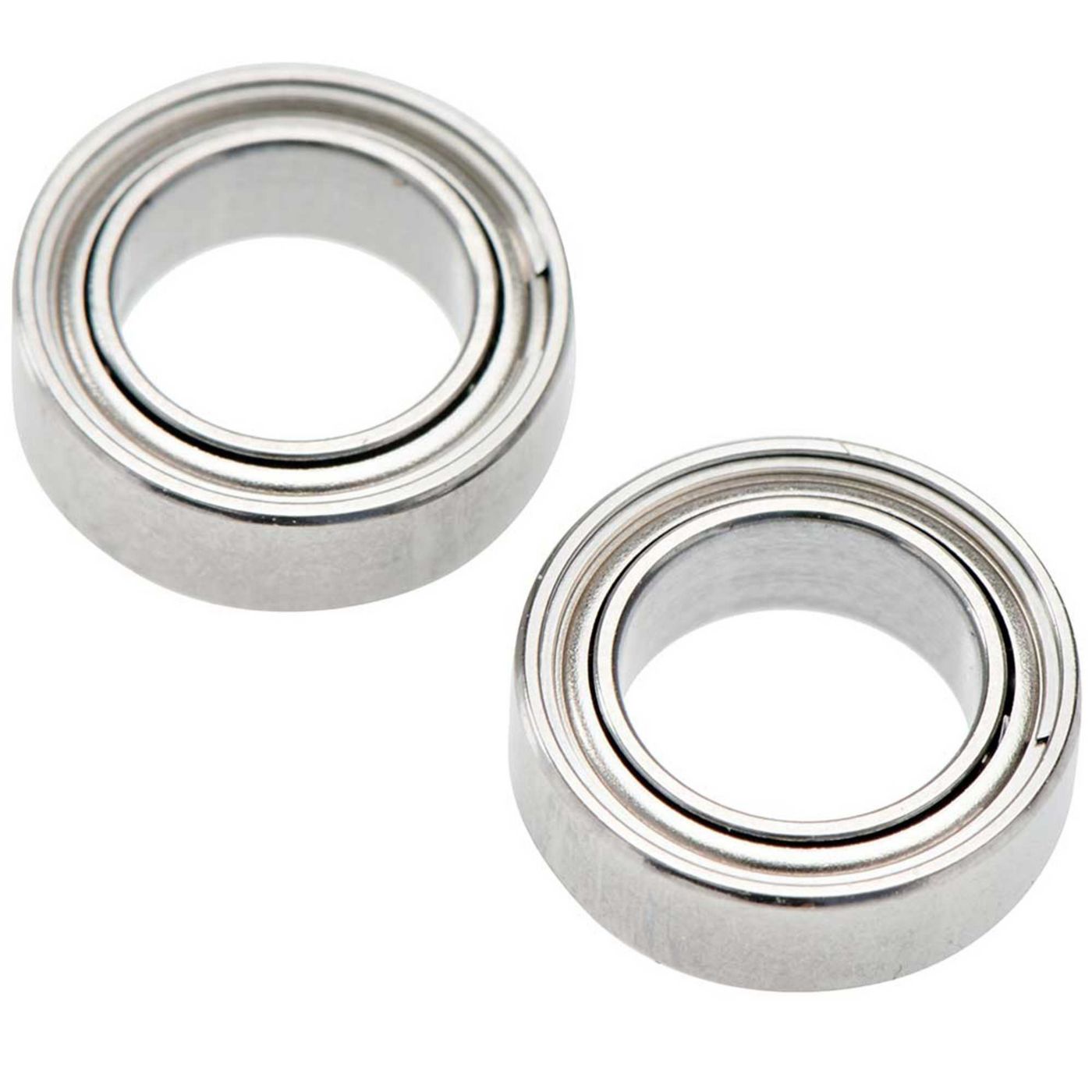

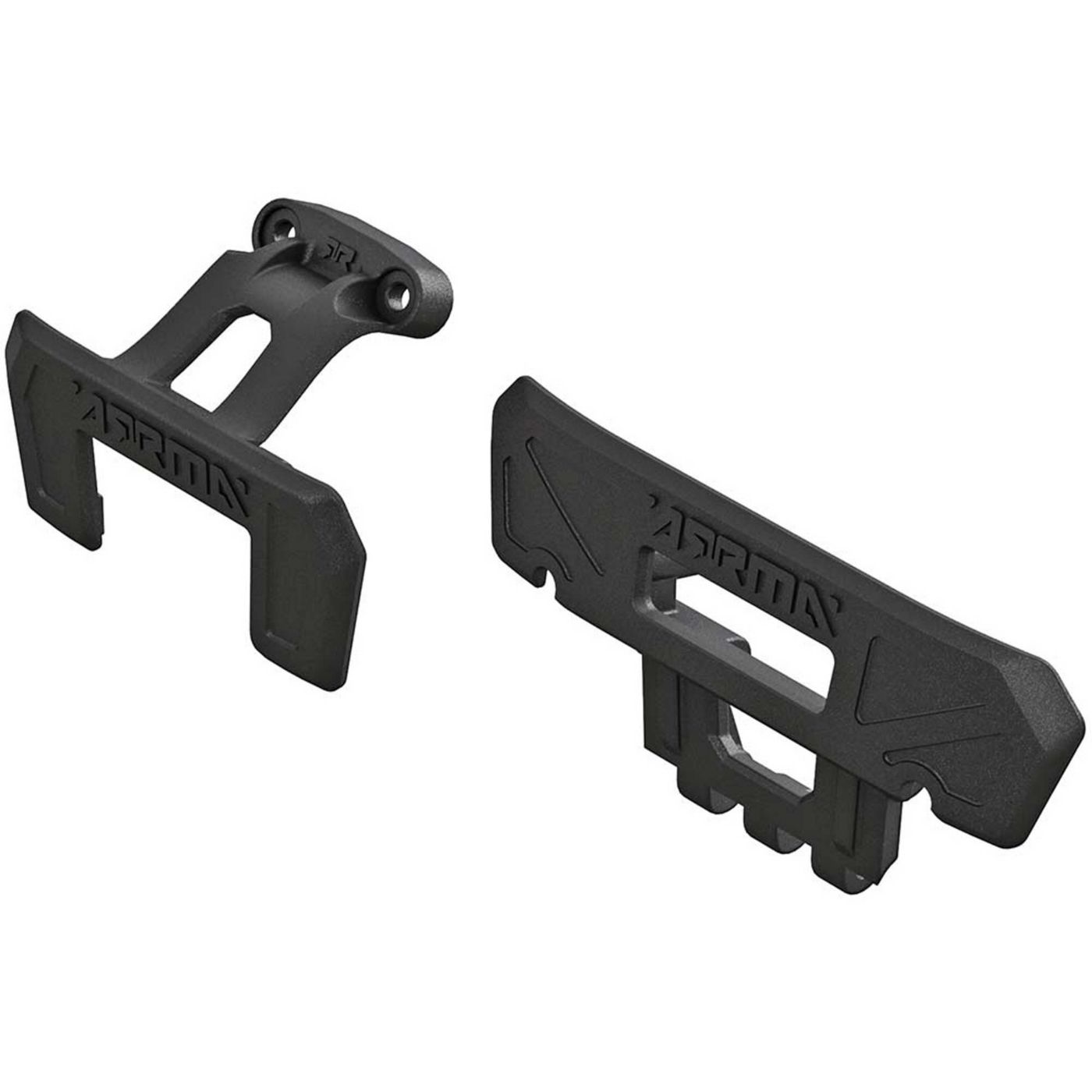

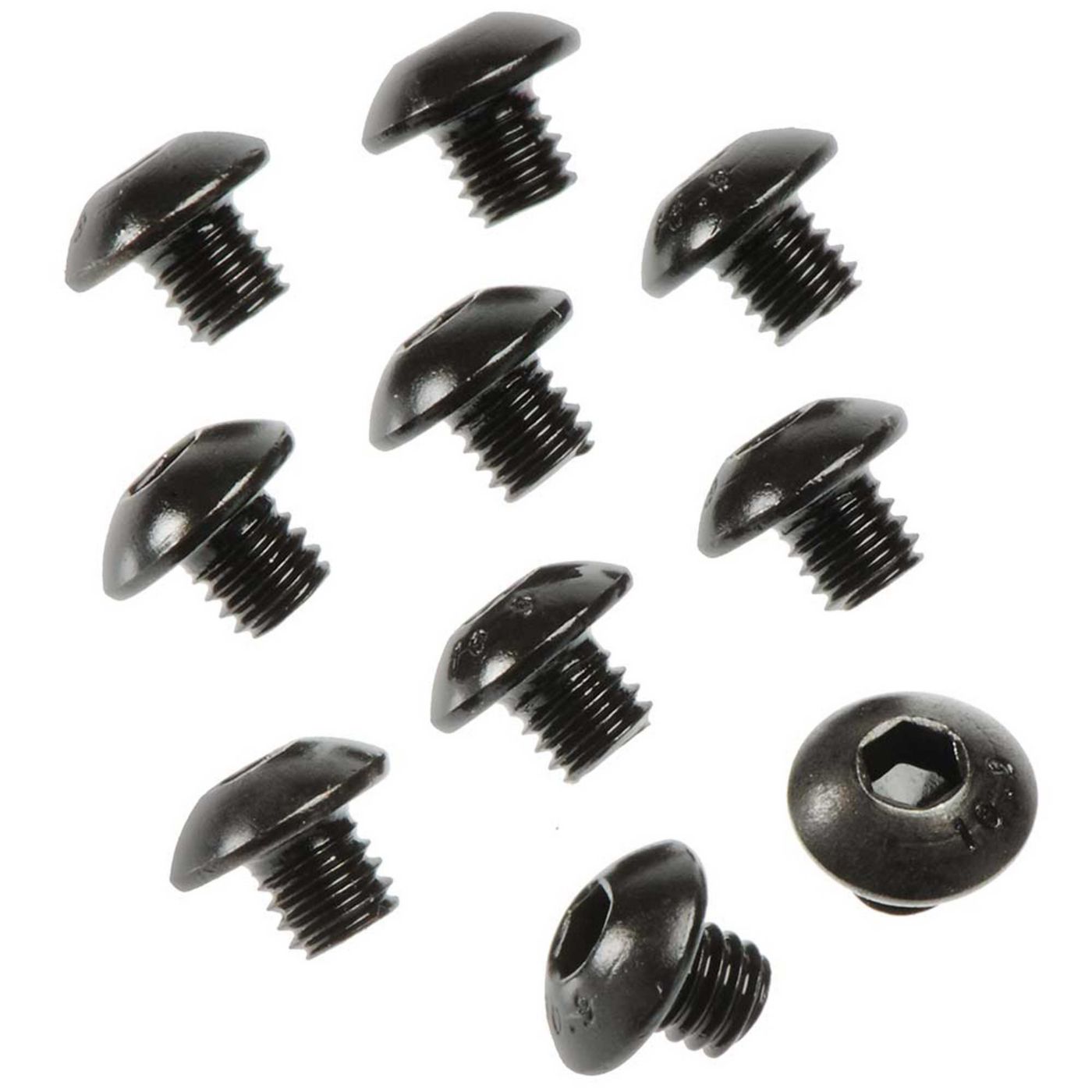

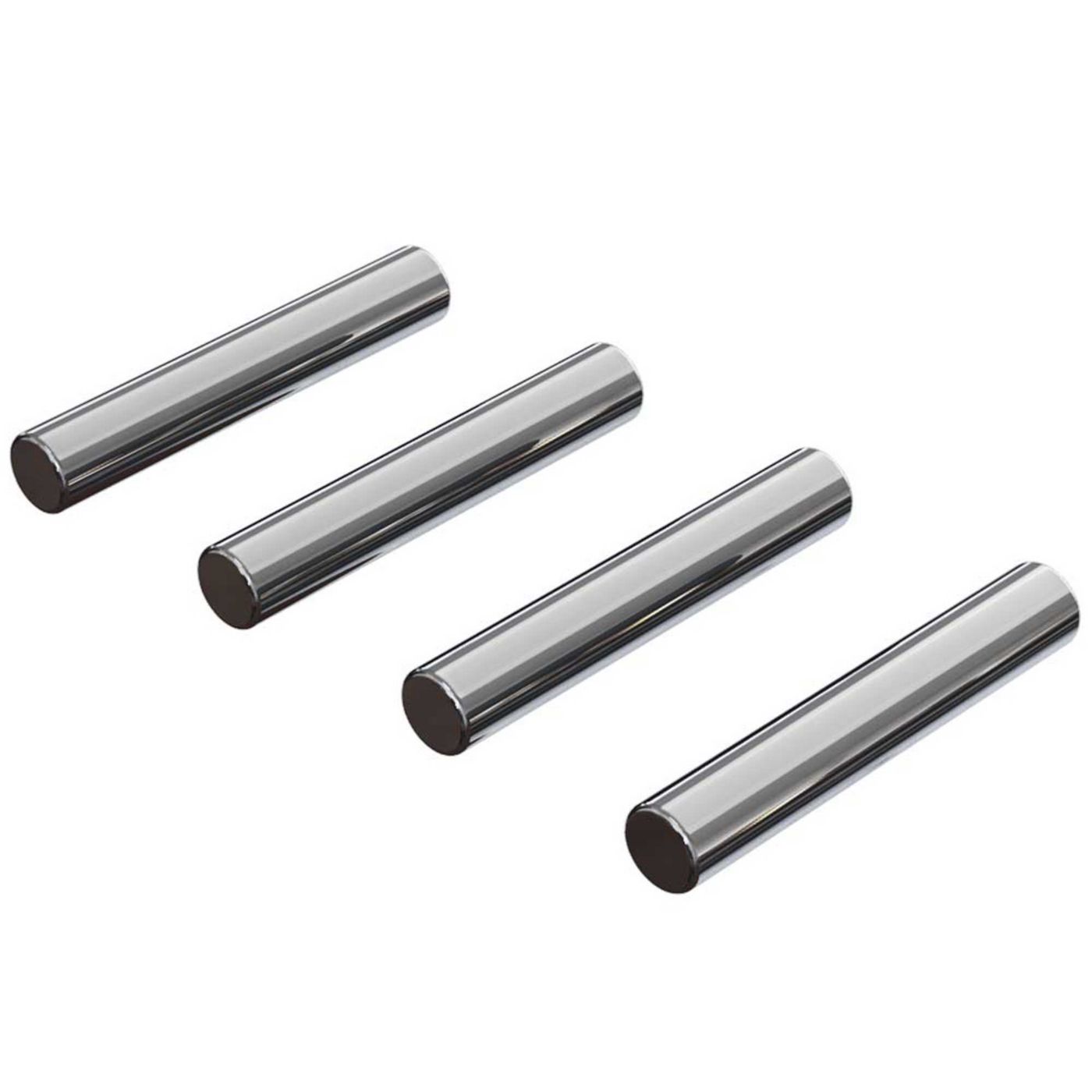

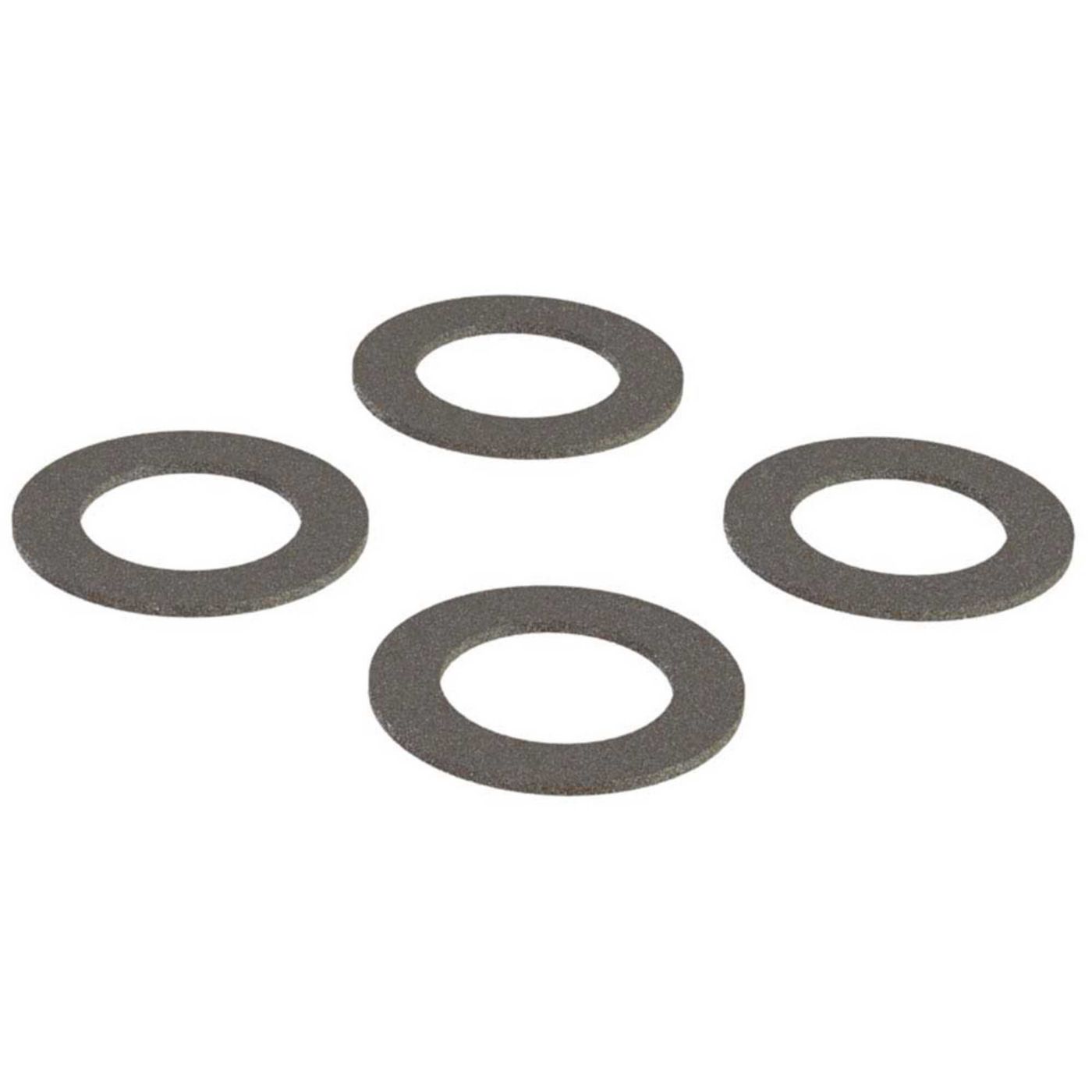

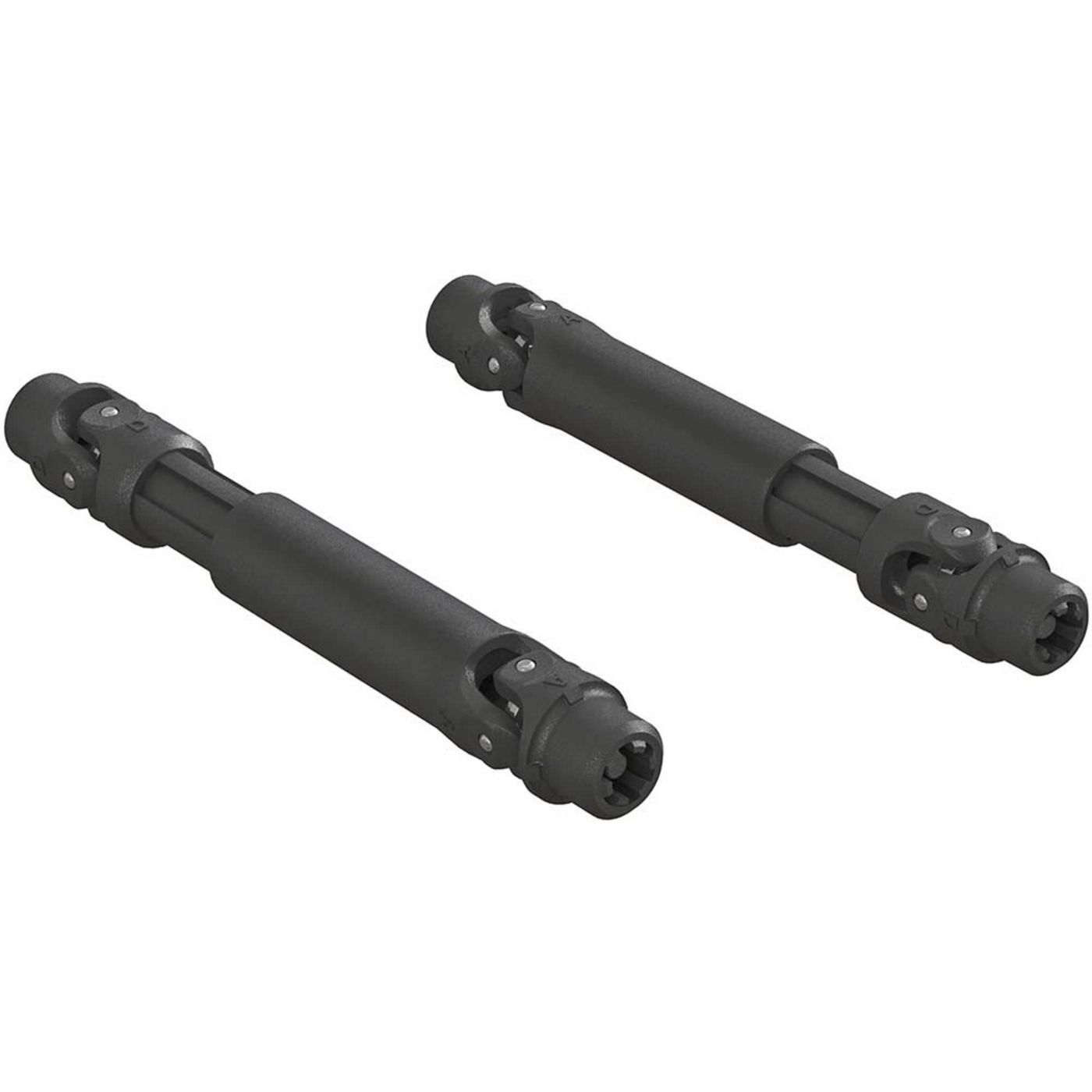

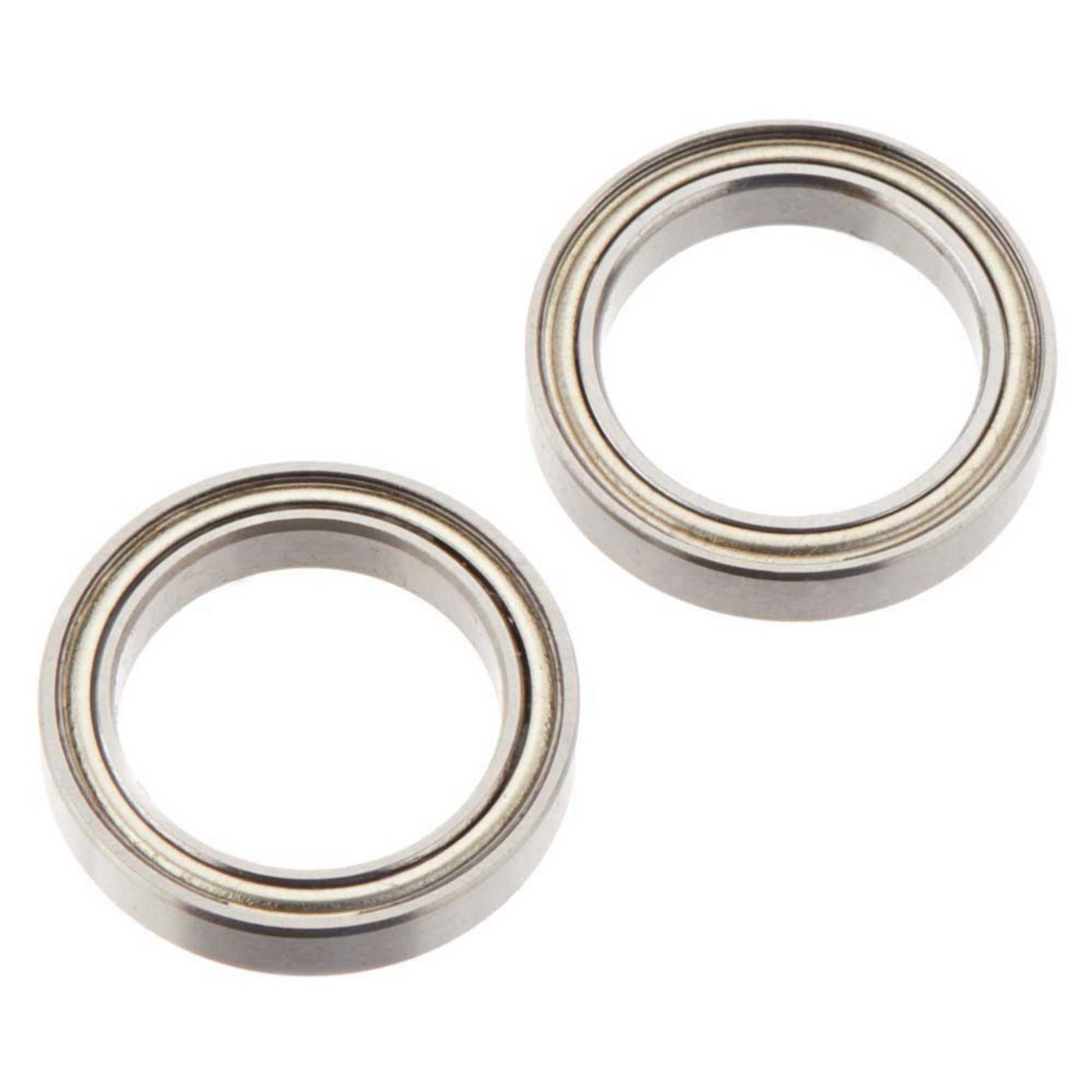

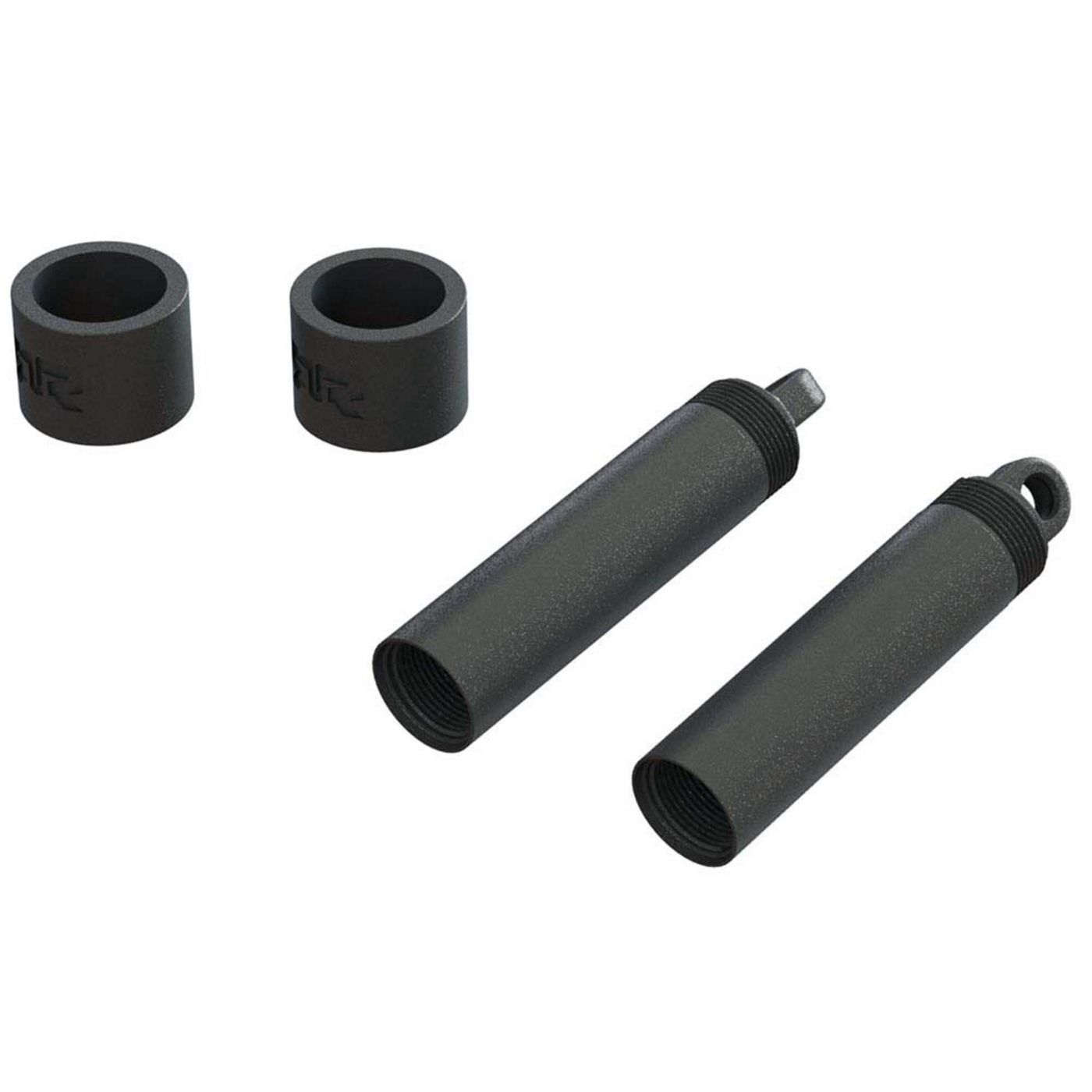

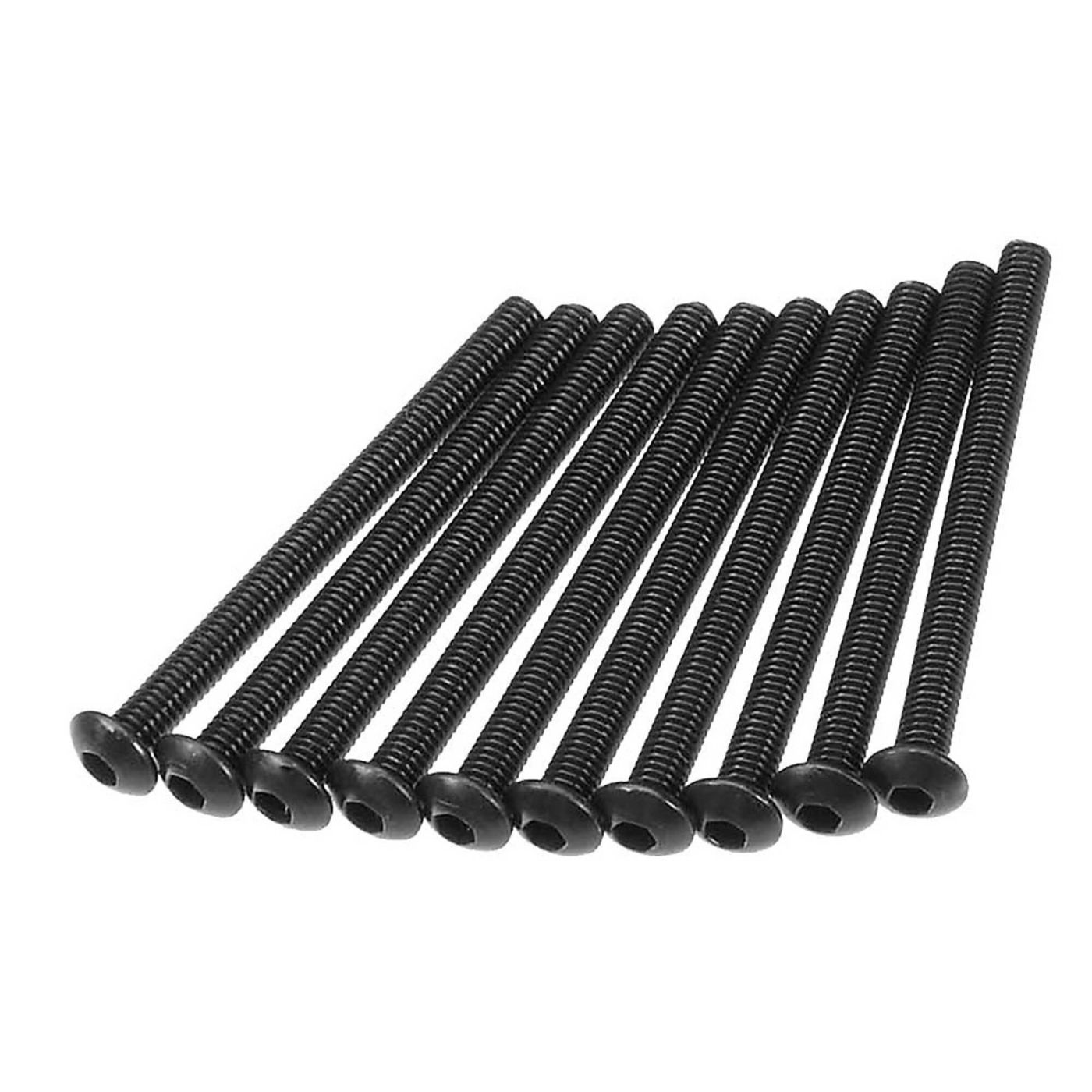

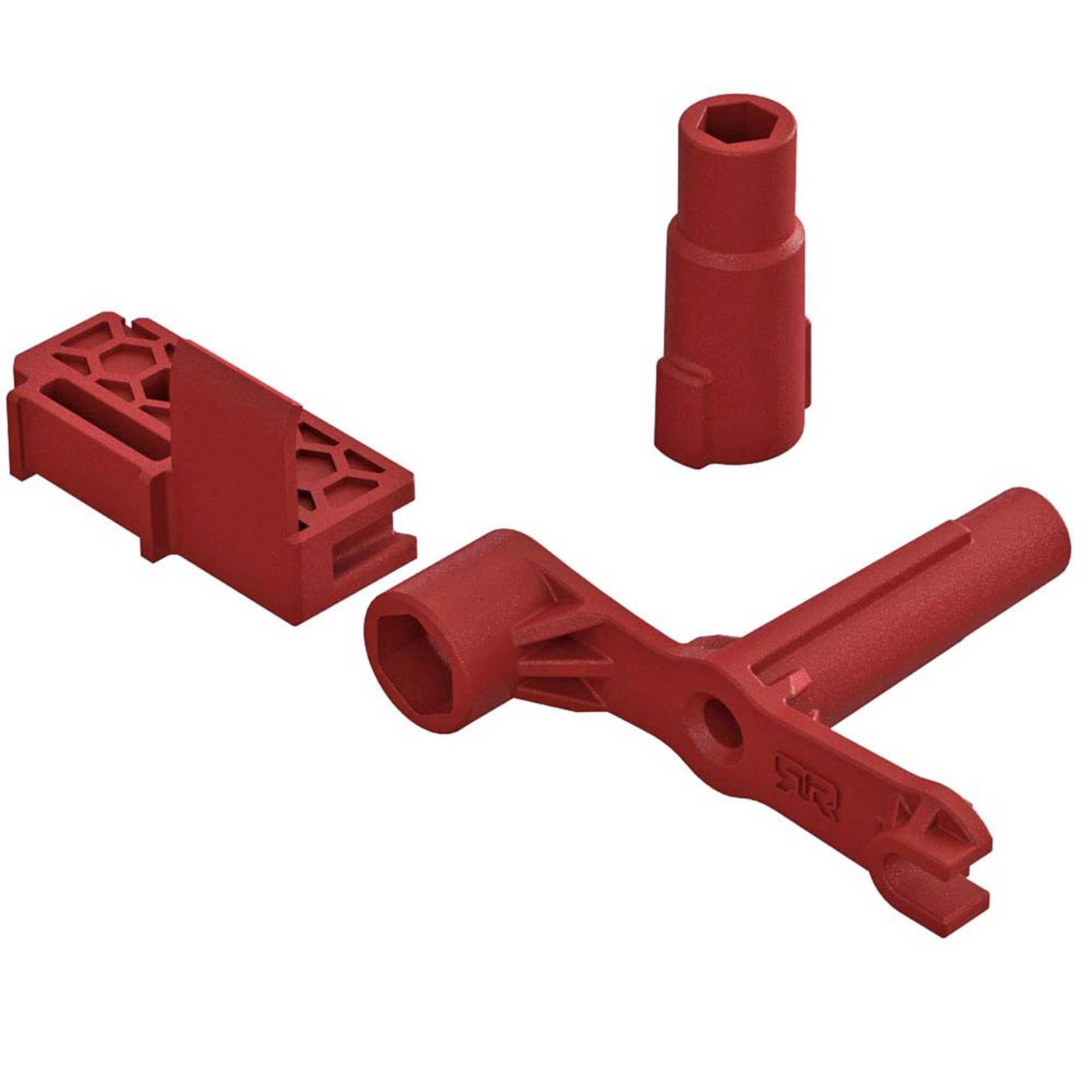

Parts Listing
EUR 3.99
Optional Accessories
EUR 29.99
Pit & Field Equipment
Building Tools
1/10 TYPHON 3S BLX 3S LiPo Completion Guide
1/10 TYPHON 3S BLX 2S LiPo Completion Guide

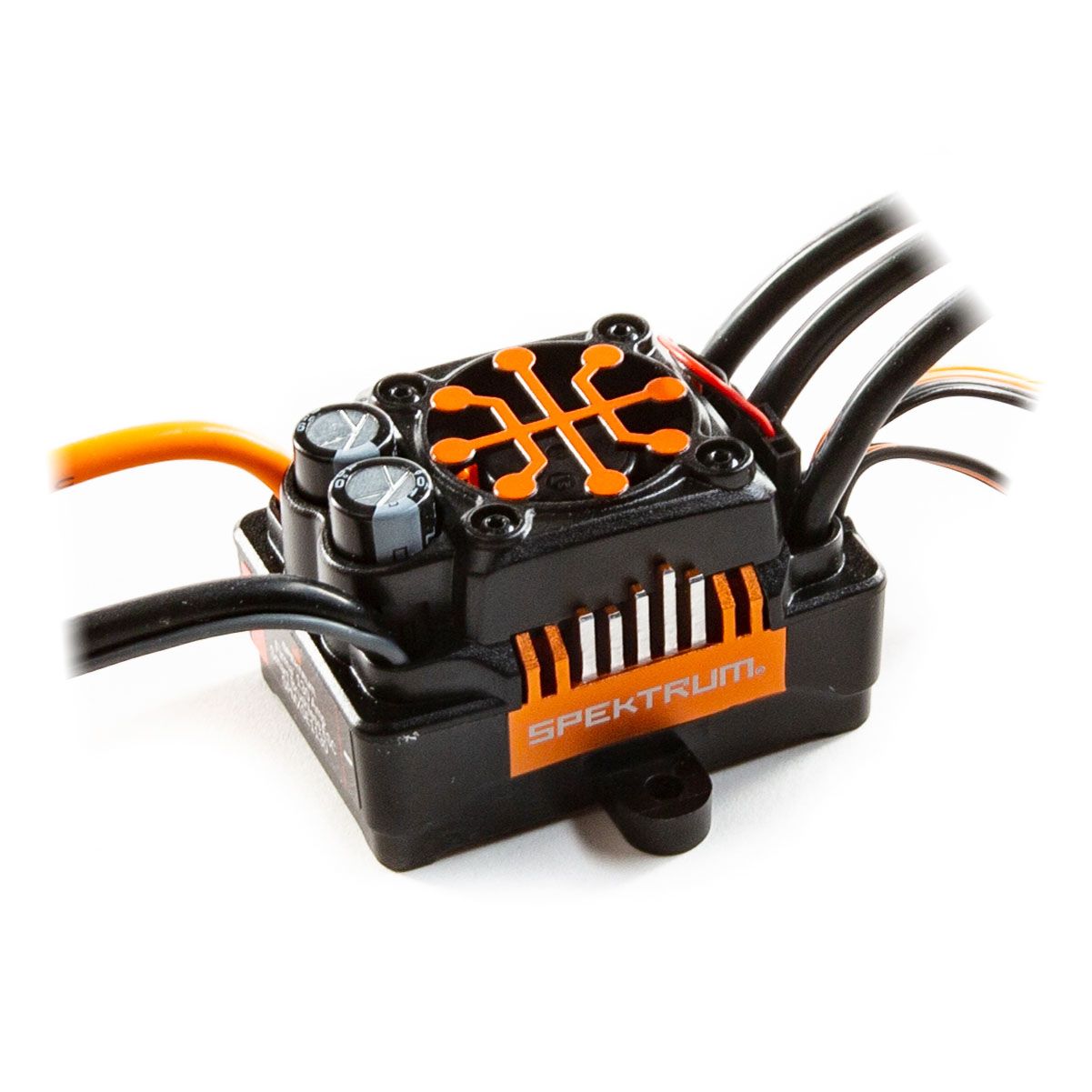

Firma 130 Smart ESC Upgrade Guide
